Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Qihang |
| Certification: | CE |
| Model Number: | gh |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | According to product |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | L/C, D/P, T/T, Western Union |
|
Detail Information |
|||
| Other Nama: | Automatic Cream & Paste Filling Machine | Apply Industry: | Cosmetic Filling |
|---|---|---|---|
| Usage: | Liquid Paste Cream Filling | Automatic Grade: | Automatic |
| Condition: | New | Voltage: | 220V/50HZ |
| Packaging Type: | Bottles / Jar | Application: | Beverage, Chemical, Commodity, Food, Machinery,hardware,medical |
| Driven Type: | Electric | Key Selling Points: | Easy To Operate |
| High Light: | Viscous Liquid Bottling Machine,Ketchup Sauce Liquid Bottling Machine |
||
Product Description

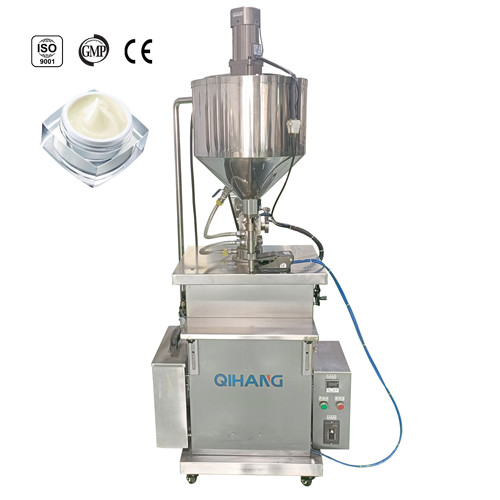

Semi-Automatic Viscous Liquid Bottling Machine Line Ketchup Sauce Paste
Filling Liquid Packing Machine
|
Product Description
|
|---|
|
The pneumatic cream tube filling machine controlled by air compressor, this machine used to filling plastic tube, and connected with conveyor.Pneumatic driven semi automatic bottles packaging machine, bottle filler is a pneumatic type filling machine, it through the cylinder's movement of forward and backward to make the piston which is located in the cylinder do reciprocating movement, so as to occur the negative pressure in the preceding chest of the cylinder. All adopt compressed air as the control, so they are quite suitable for the use in the request of anti-explosion environment, has high safety. Pneumatic driven semi automatic bottles packaging machine, bottle filler mainly use in filling Water, honey sugar, acid cheese, fruit juice, shower, gear oil, liquid coffee, ink, eye shadow, fluid tea, shampoo, glue, food/paint, washing hand fluid, cream, milk, liquid soap, butter, syrup, plant oil.
|
|
Parameter
|
|
|
Filling volume |
50-500ml |
|
Filling accuracy |
±0.5% |
|
Air pressure |
4-8 kg/cm2 |
|
Hopper |
30L |
|
Hopper material |
SUS304 |
|
Material of cylinder |
SUS304 |
|
Net weight |
about 55 kg |
|
Packing size |
560*560*1450mm |
|
