Paste Piston Filling Machine 50-500ml Single Head Pneumatic

Product Details:
Place of Origin: CHINA
Brand Name: Qihang
Certification: CE.GMP
Model Number: QH-FM
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 3-4WEEKS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70 set/Year

Detail Information

Other Name: Automatic Cream & Paste Filling Machine Apply Industry: Cosmetic Filling
Usage: Liquid Paste Cream Filling Automatic Grade: Automatic
Condition: New Voltage: 220V/50HZ
Packaging Type: Bottles / Jar Application: Beverage, Chemical, Commodity, Food, Machinery,hardware,medical
Driven Type: Electric Key Selling Points: Easy To Operate
High Light:

500ml Paste Piston Filling Machine

,

Single Head Paste Piston Filling Machine

Product Description

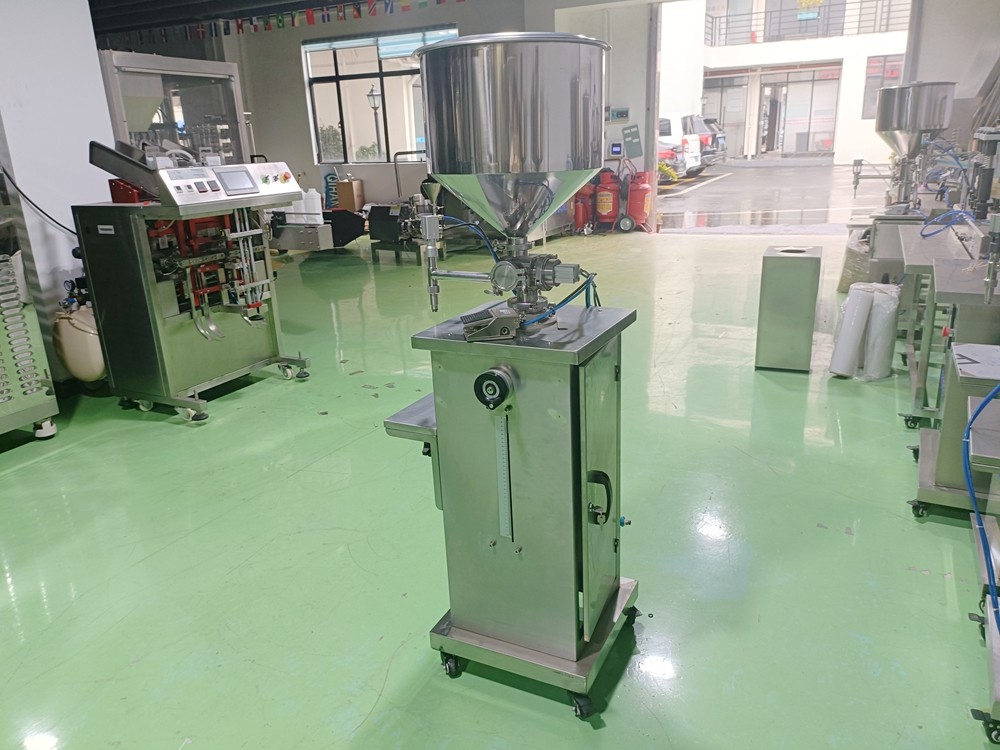

50-500ml Semi-auto Single Head Pneumatic Paste Piston Filling Machine







Introduction





50-500ml Semi-auto Single Head Pneumatic Paste Piston Filling Machine is suitable for quantitative filling of liquids, pastes, granules, sauces, etc. or viscous materials in medicine, daily chemicals, food, pesticides, chemicals, lubricants and special industries. Such as: cosmetic cream, juice, ice cream, glue, ink, shampoo, hand sanitizer, chili sauce, hot pot base, butter, cream, etc.





Specification



Filling volume

(ml)

Productivity

(b/h)

Filling speed

Filling precision

Air supply

10-50

1500-3500

adjustable





≤±1%







0.4-0.8MPa



80-300

1500-3000

adjustable

100-500

1500-2500

adjustable

300-1000

1500-2500

adjustable

1000-5000

1000-2000

adjustable

Note: The filling precision reach ±0.5% if filling system adopt servo motor, the filling speed can be adjusted freely and filling volume can be wider.



Feature





1. Applicable to the liquid pharmaceutical, cosmetics, beverage, pesticides and special industries, is the ideal of high viscosity fluid filling equipment

2. Can be equipped with a cylindrical container, stirring paddle, electric heating function. Paste materials can be heated, mixing, heating-preservation.

3. Filling quantity adjustment handles, filling speed can be adjusted, high filling accuracy.

4. The new vertical compact design, light and easy to operate,easy to move with the wheel.





Technical Parameter







1. Filling volume: 3-30ml, 5-150ml, 30-500ml, 60-1000ml

2. Filling nozzel: 1pcs

3. Working capacity: 20-60(b/m)

4. Air consumption: 0.4Mpa/minute

5. Electric consumption: Since the machine is pneumatic control, there is no electric consumption.

6. Dimension: L440*W340*H1600mm
