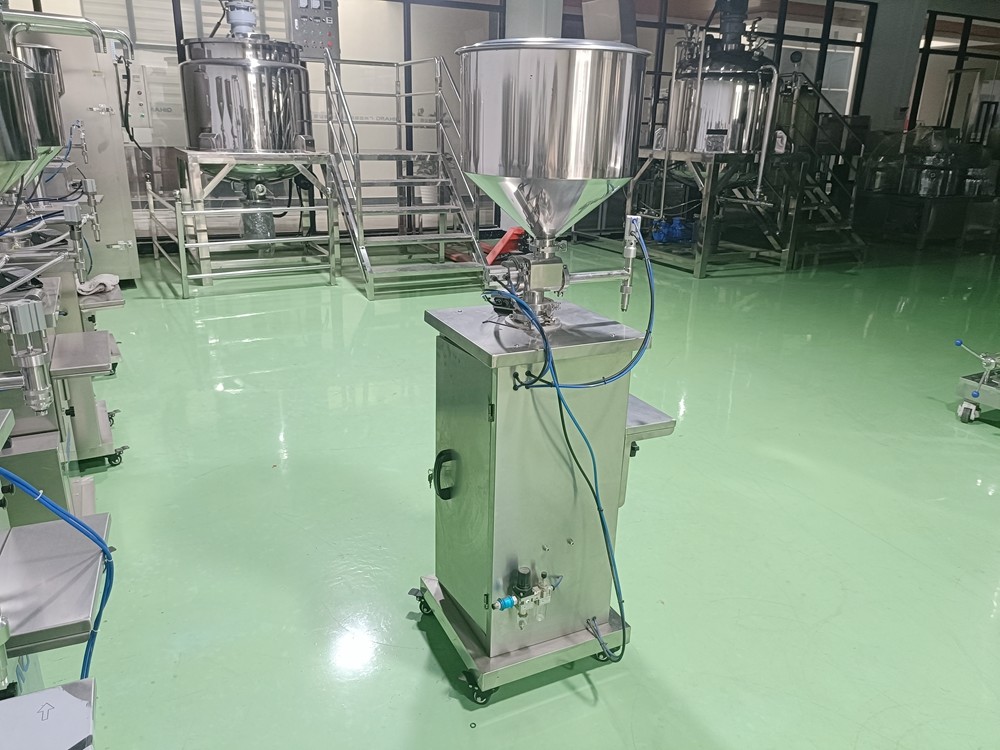

50-500ml Paste Piston Filler Single Head Pneumatic

50-500ml semi-automatic single head pneumatic paste piston filling machine is mainly used for quantitative filling of viscous materials, such as: cosmetic cream, juice, ice cream, glue, ink, shampoo, hand soap, chili sauce, hot pot base, butter, cream, lubricant and special industries such as liquid, paste, granule, sauce or etc. Applicable to a wide range of industries, including pharmaceutical, daily chemical, food, pesticide, chemical and other industries.

Filling volume

(ml)

Productivity

(b/h)

Filling speed

Filling precision

Air supply

10-50

1500-3500

adjustable

≤±1%

0.4-0.8MPa

80-300

1500-3000

adjustable

100-500

1500-2500

adjustable

300-1000

1500-2500

adjustable

1000-5000

1000-2000

adjustable

Note: The filling precision reach ±0.5% if filling system adopt servo motor, the filling speed can be adjusted freely and filling volume can be wider.

1. Suitable for liquid pharmacy, cosmetics, beverages, pesticides and other special industries, it is an ideal high viscosity liquid filling equipment
2. New vertical compact design, light and easy to operate, convenient to move with wheels.
3. The filling volume adjusting handle has adjustable filling speed and high filling accuracy.
4. It can be equipped with cylindrical container, stirring paddle and electric heating function. The paste can be heated, stirred and insulated.

1. Filling volume: 3-30ml, 5-150ml, 30-500ml, 60-1000ml

2. Filling nozzel: 1pcs

3. Working capacity: 20-60(b/m)

4. Air consumption: 0.4Mpa/minute

5. Electric consumption: Since the machine is pneumatic control, there is no electric consumption.

6. Dimension: L440*W340*H1600mm
