Vertical Sauce Filling Machine Honey Laundry Liquid Paste Pneumatic Filling Machine

Vertical Semi-Automatic Sauce Filling Machine Honey Laundry Liquid Paste Pneumatic Filling Machine is suitable for quantitative filling of liquids, pastes, granules, sauces, etc. or viscous materials in medicine, daily chemicals, food, pesticides, chemicals, lubricants and special industries. Such as: cosmetic cream, juice, ice cream, glue, ink, shampoo, hand sanitizer, chili sauce, hot pot base, butter, cream, etc.

Filling volume

(ml)

Productivity

(b/h)

Filling speed

Filling precision

Air supply

10-50

1500-3500

adjustable

≤±1%

0.4-0.8MPa

80-300

1500-3000

adjustable

100-500

1500-2500

adjustable

300-1000

1500-2500

adjustable

1000-5000

1000-2000

adjustable

Note: The filling precision reach ±0.5% if filling system adopt servo motor, the filling speed can be adjusted freely and filling volume can be wider.

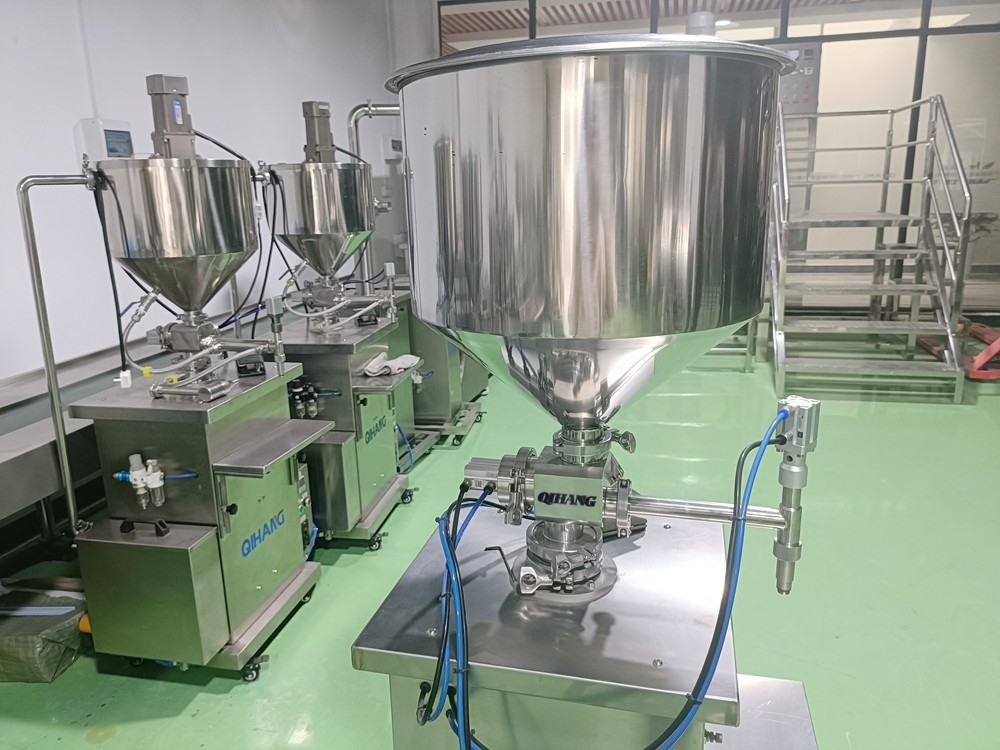

1. Large-capacity hopper filling, suitable for filling high-viscosity materials. Using the action of piston + gravity, the material is sucked into the material tank for precise filling.

2. The hopper can be disassembled, remove the hopper, and install the suction pipe at the rotary valve, so that one side can be automatically Dynamic suction, while quantitative filling.

3. It is suitable for all kinds of viscous materials and granular materials.

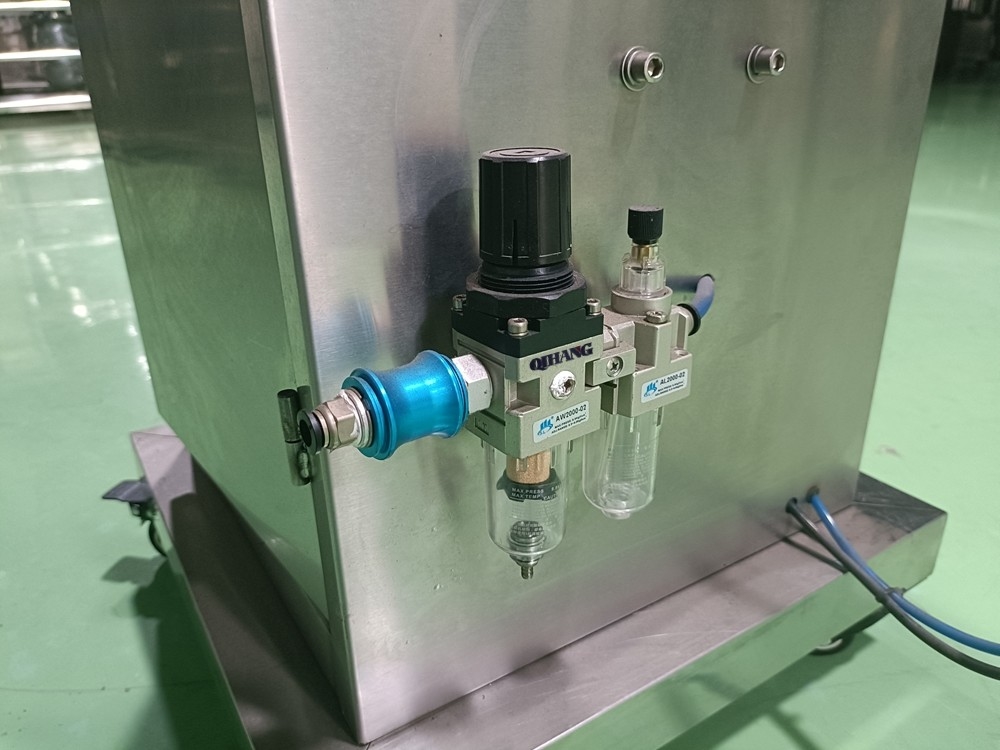

4. It adopts pure pneumatic design, reasonable structure design, safety and convenience.

Q1: What’s your guarantee or the warranty of the quality if we buy your machines?
A1: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Jiangsu, China, welcome to visit us at any time. You can take the plane to Shanghai and then take the highway to Zhenjiang Station(1 hour), then we will pick u up.
Q3: How does your factory do regarding quality control?
A3: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.
