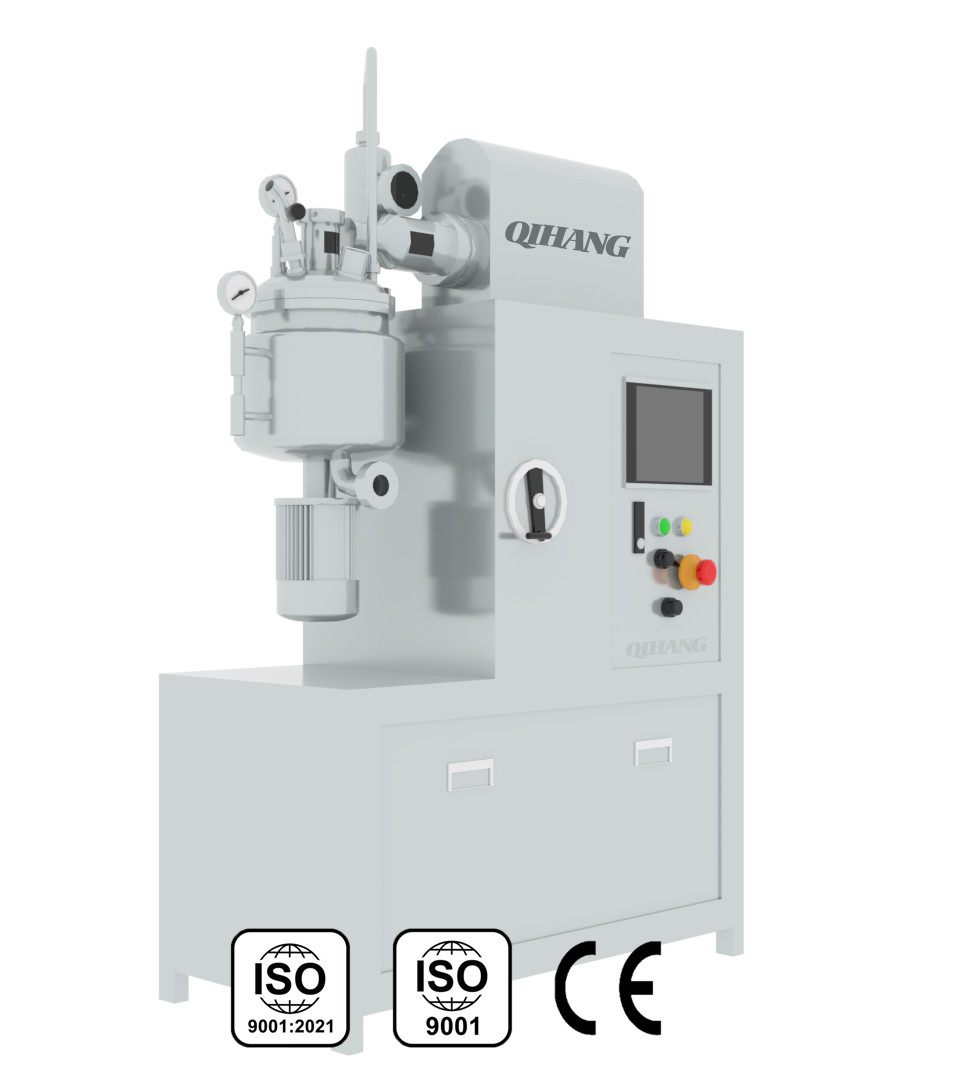

PLC Control Cosmetic Cream Mixer Machine 380V 50HZ

Product Details:
Place of Origin: CHINA
Brand Name: Qihang
Certification: CE.GMP
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: AS YOU LIKE
Delivery Time: 3-4WEEKS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Material: SUS304/316 Mixer Type: Homogenizer Machine
Product Type: Medicine Processing,Cosmetic Automatic Grade: Automatic
Control: Button/PLC Control Voltage: 220V/380V 50HZ
Mixing Speed: 0-63 R/min Or Custom Advantage: Defoaming And Longer Shelf Life
High Light:

PLC Control Cosmetic Cream Mixer Machine


380V Cosmetic Cream Mixer Machine


PLC Cosmetic Mixer Machine

Product Description


Cosmetic Manufacturer Cream Mixer Machine for Sale Factory Price

Industry and Trade Integration




Description of the Emulsifying Homogenizer Equipment



Vacuum homogenizing emulsifier is mainly used for heating and dissolving materials, homogenizing emulsification and vacuum defoaming. It is the preferred equipment for middle and high-grade emulsion cream products. The whole equipment includes emulsifying pot, water phase pot, oil phase pot, operating platform, control system and so on. The vacuum mixing pot produced by our company is specially designed and manufactured for pharmaceutical, chemical, cosmetics, food, beverage and other industries. The effect of the frame mixing method is unique, and the mixing blades can also be manufactured according to customer requirements.


PLC Control Cosmetic Cream Mixer Machine 380V 50HZ 0


Vacuum Emulsifying Mixer Specification


Volume(L) Emulsifying mixer pot Homogenizer
Mixer Pot Water Pot Oil Pot









QH-5 6 4 4 0.55 0-86 1.1 0-3500
QH-10 10 8 8 0.55 0-86 1.1 0-3500
QH-30 30 25 17.5 0.75 0-86 1.5 0-2900
QH-50 50 38 25 0.75 0-86 1.5 0-2900
QH-100 100 60 45 1.5 0-86 3 0-2900
QH-150 150 100 75 1.5 0-86 4 0-2900
QH-200 200 120 100 2.2 0-65 4 0-2900
QH-250 250 160 130 2.2 0-65 4 0-2900
QH-350 350 250 200 2.2 0-65 4 0-2900
PLC Control Cosmetic Cream Mixer Machine 380V 50HZ 1


Main Features of the Emulsifying Homogenizer Equipment



1) The triple mixing adopts the imported frequency converter for speed adjustment, which can meet different technological demands.
2) The homogenization structure made through German technology adopts the imported double-end mechanical seal effect.
3) The maximum emulsifying rotation speed can reach 4200 rpm and the highest shearing fineness can reach 0.2-5um.
4) The vacuum defoaming can make the materials meet the requirement of being aseptic.
5) The emulsifying pot lid can adopt lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.
6) The pot body is welded by imported three-layer stainless steel plate.
7) The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.
8) The heating modes mainly include steam heating or electric heating to ensure the control of the whole machine is more stable,the electric appliances adopt imported configurations, so as to fully meet the internal standards.

PLC Control Cosmetic Cream Mixer Machine 380V 50HZ 2


Working principle of the Emulsifying Homogenizer Equipment



It means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several phases to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.


PLC Control Cosmetic Cream Mixer Machine 380V 50HZ 3
