China Cosmetic Making Machine manufacturer

Emulsification Tank 220V/380V 50HZ High Pressure Homogenizing Machine

Product Details:
Place of Origin: CHINA
Brand Name: Qihang
Certification: CE.GMP
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: AS YOU LIKE
Delivery Time: 3-4WEEKS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Material: SUS304/316 Mixer Type: Emulsification Tank
Product Type: Medicine Processing,Cosmetic Automatic Grade: Automatic
Control: Button/PLC Control Voltage: 220V/380V 50HZ
Mixing Speed: 0-63 R/min Or Custom Advantage: Defoaming And Longer Shelf Life
High Light:

cosmetic manufacturing machinery


emulsion mixer machine

Product Description



Cosmetic /shampoo/detergent Making Machine Homogenizer Mixer Hand

Wash Liquid Soap Making Machine/emulsification tank


Emulsification Tank Introduction:


High-speed super-fine emulsification tank is the most advanced blending equipment in the fields of dairy products, beverages, fruit juice and foods etc. When the high-speed super-fine emulsification paddle works, it throws the materials in the center of rotor to stator at a high speed, then through teeth clearance of stator and shearing, collision and crushing between rotor and stator, the super-fine emulsification is realized Therefore, it is an integrated equipment comprising multi-function such as blending, emulsifying homogenizing, solving and smashing etc.


Emulsification Tank Advantages:


This unit is characterized by simple operation, stable performance, good homogeneity, high production efficiency, convenient cleaning, reasonable structure, less floor space and high degree of automation.
The emulsion tank is a kind of three coaxial mixing mixer, suitable for stable homogeneous emulsification. The particles produced are very small. The emulsion quality depends on how the particles are dispersed in the preparation stage.
High quality emulsifying mixing effect is obtained under the condition of mixing action of reversing blade, homogeneous turbine and vacuum state


Description   Details
Name Vacuum Emulsifier Mixer/emulsification tank



Make production under vacuum → De-foaming
Vacuum to suck raw material → Anti-bacteria
Lid with hydraulic lifting system→ Easy cleaning + Tilting discharge



1. Food: mayonnaise, tomato paste, cake gel, honey, chocolate etc.
2. Medical: ultrasound gel, injection, syrup, etc.
3. Cosmetic: cream, body lotion, shaving foam, toothpaste, etc.




Emulsification Tank	220V/380V 50HZ High Pressure Homogenizing Machine 0



Vacuum Emulsifying Mixer /emulsification tank Application:


1. Daily Chemical & Cosmetics Industry:
such as baby cream, skin cream face cream, shaving cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream,
face cleanser, moisture cream, detergent, shampoo etc;

2. Food Industry:
Sauce, cheese, oral, nutrition, infant food, chocolate, sugar and so on., tomato paste etc;

3. Pharmacy Industry:
Latex, emulsions, salves (ointments), oral syrup, liquid. etc;

4. Chemical Industry:
Latex, sauce, saponification products, paints, coatings, resins, adhesives, lubricants and the like.



Vacuum Emulsifying Mixer/emulsification tank Feature:


The main pot is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.

The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.

The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.

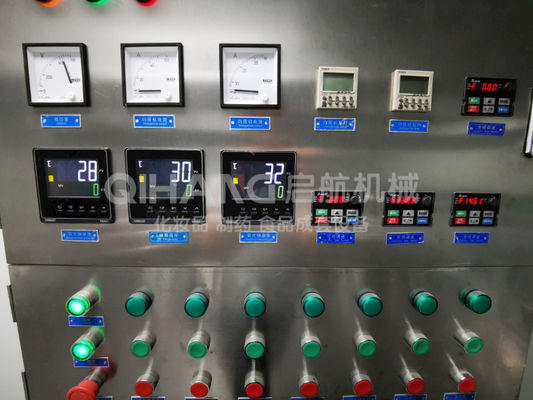

The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.



Emulsification Tank	220V/380V 50HZ High Pressure Homogenizing Machine 1


Project Cases:


Manage ltem: vacuum homogenizing emulsifiers, high shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.




Emulsification Tank	220V/380V 50HZ High Pressure Homogenizing Machine 2



cosmetic manufacturing machinery,

emulsion mixer machine
