PLC Daily Cosmetic Making Machine Vacuum Emulsifier

Product Details:
Place of Origin: China
Brand Name: QiHang
Certification: CE
Model Number: QHE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable1
Price: Negotiation
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union

Detail Information

Voltage: 220V/380V Condition: New
Product Type: Cosmetic,food,chemical,homogeneous Additional Capabilities: Homogenizing,emulsifying
Application: Liquid With Suspended Solids,Chemicals Processing,Medicine Processing,Food Processing Max. Loading Capacity: 5000L
Certification: CE,ISO9001 Material: SS316
Machine Type: Emulsifier Function: Emulsifying,homogenizing
Usage: Cosmetic,chemical,dairy,Cream Name: Emulsifying Emulsion Pump
Product Name: Homogenizing Emusifying Machine
High Light:

PLC Daily Cosmetic Making Machine

,

Vacuum Emulsifier Cosmetics Making Machine

,

5000L Cosmetic Making Machine

Product Description



Factory Price PLC Daily Cosmetics Making Machine Vacuum Emulsifier for Sale







Description of the Vacuum Emulsifier





Vacuum emulsifying machine, high shear homogenizer, cosmetic cream mixer means the material in a vacuum state, the use of high-shear emulsifier efficient, rapid and evenly distributed one phase or multiple phase to another phase, and each phase under normal circumstances (such as oil and water phase) are mutually exclusive.

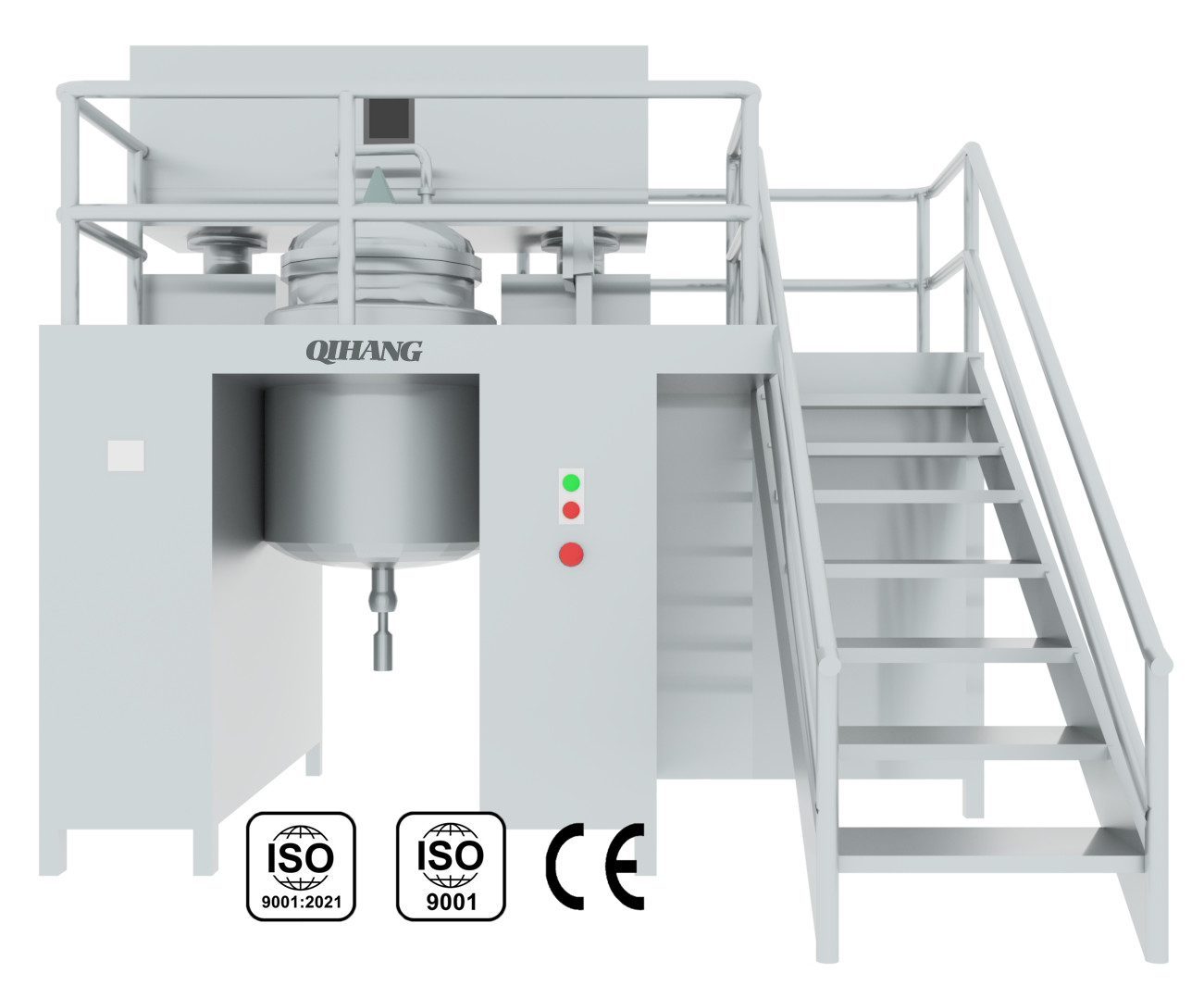

PLC Daily Cosmetic Making Machine Vacuum Emulsifier 0



Parameter of the Vacuum Emulsifier



Main Boiler Water Boiler Oil Boiler Scraping Homogenizer Power of Water and Oil Boiler Hydraulic Lifting  Tilting System Vacuum Pump Power
L L L KW KW KW KW KW KW
5     0.18 0.75   0.75   0.4
10 8 5 0.18 1.1 0.18 0.75   0.4
20 18 10 0.37 1.5 0.18 0.37   0.75
50 40 25 0.75 2.2 0.18 0.37 0.37 1.5
100 80 50 1.5 4 0.75 0.75 0.75 1.5
200 170 100 2.2-3 5.5 1.5 1.5 0.75 2.2
300 250 150 2.2-4 5.5 2.2 1.5 0.75 2.2
500 420 250 5.5-7.5 7.5 2.2 2.2 1.1 3
1000 800 500 7.5-11 11 4 2.2-4 1.5 4
2000 1600 1000 11 18.5 5.5 4 1.5 7.5

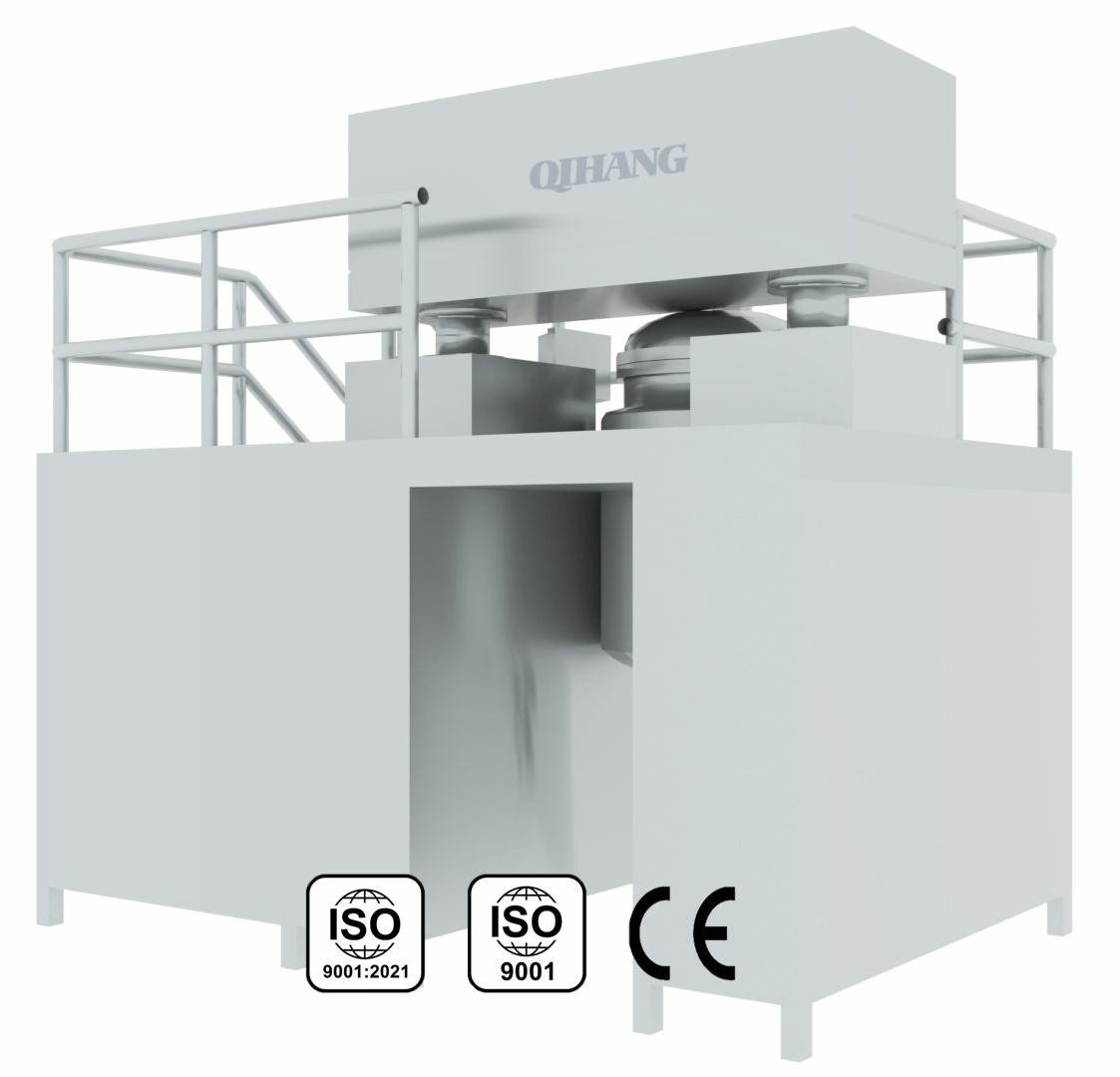

PLC Daily Cosmetic Making Machine Vacuum Emulsifier 1



Feature of the Vacuum Emulsifier





1. high sanitary standard manufacturing

2. internal surface mirror polished

3. agitation group consisting of two slow agitators and one fast agitator

4. double speed slow agitators(stepless speed variation as optional)

5. double speed fast agitators(stepless speed variation as optional)

6. mechanical seal of agitation groups

7. lifting cover system

8. tilting vessel

9. body and agitators made of SS AISI 316L

10. internal pressurization for discharge and inertization

11. SS AISI 304jacket

12. cover for thermal insulation made of SS tank in tank

13. vacuum group

14. heating station

15. sterilizing filter installed on the vacuum-breaking device

16. cleaning balls

17. embedded CIP group

18. product temperature check by means of Pt 100 probe,special sheath, close to the side

19. buttons or PLC controlled process functions

20. electronic weighing system.

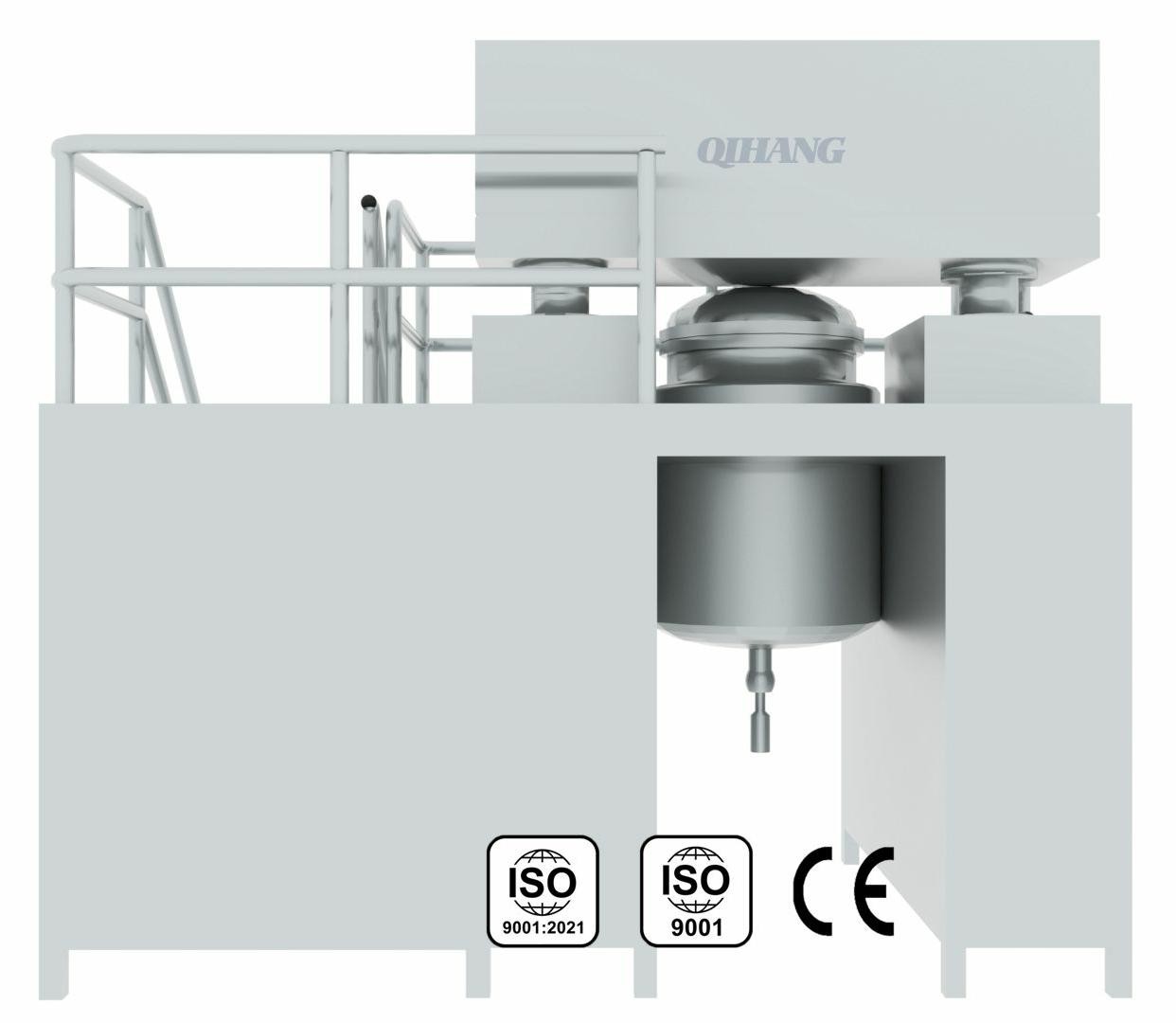

PLC Daily Cosmetic Making Machine Vacuum Emulsifier 2
