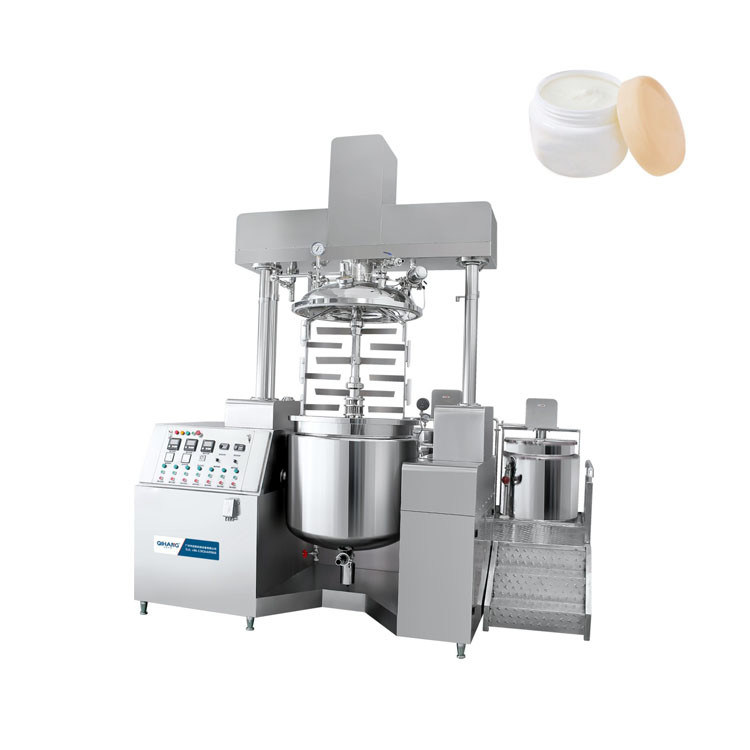

3500RPM 15KW 100L Vacuum Mixer Homogenizer For Viscous Fluid

Product Details:
Place of Origin: China
Brand Name: qihang
Certification: ce,iso
Model Number: QH-ST-100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: wooden case
Delivery Time: 35 working day
Payment Terms: T/T, L/C
Supply Ability: 70/month

Detail Information

Voltage: 110V~480V Power(w): 15KW
Condition: New Product Type: Cosmetic,food
Dimension(l*w*h): Custom Made Warranty: 1 Year
Mixer Type: Electric Agitator And Homogenizer Application: Viscous Fluid
Max. Loading Capacity: 5-5000L Additional Capabilities: Homogenizing
Name: Cosmetics Mixer,Vacuum Homogeniser Mixer For Cosmetic Facial Cream Making Capacity: 50-10000L
Homogenizing Speed: 0-3500 R/min
High Light:

3500RPM Vacuum Mixer Homogenizer


Viscous Fluid Vacuum Mixer Homogenizer


10000L vacuum emulsifying mixer

Product Description

Vacuum Homogenizer Cream Mixer 3500 R/Min 15KW 100L Cosmetics Vacuum Mixer Homogenizer

100L Hight Shear Vacuum Emulsifier Cosmetics Production Equipment With Mixer



Application areas of the Vacuum Mixer Homogenizer
The product is mainly used in daily chemical health products, biopharmaceuticals, food, paint and ink, skin care, printing and dyeing additives, pulp, paper, pesticides, fertilizers, plastics, rubber, beauty and other industries. In materials with high base viscosity and high solid content, emulsification is more prominent.

3500RPM 15KW 100L Vacuum Mixer Homogenizer For Viscous Fluid 0

Main components of the Vacuum Mixer Homogenizer
The vacuum emulsification mixer is mainly composed of water pot, oil pot, emulsification pot, vacuum system, lifting system (optional), electric control system (PLC optional), operating platform, etc.

3500RPM 15KW 100L Vacuum Mixer Homogenizer For Viscous Fluid 1

  • Frame mixer

Dead-end stirring with sufficient mixing area and good stirring effect.

  • High shear homogenizer

Fast agitator: teethed type rotor and stater assembly installed on the vessel. Bottom or on the top as optional items, several interchangeable configurations ate available.

  • Hydraulic lifting system

Used for material discharge and cleaning. It is more convenient and safer for the operator.

  • Pharmaceutical grade material

High quality SUS304 & 316 material, internal and external mirror polish of homogenized tank.


Specification of the Vacuum Mixer Homogenizer


100L vacuum emulsifying mixer


Design volume: 100L, working capacity:100L

Kettle Cover

Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp




​Mixing pot






Inner layer: SUS316L thickness: 4mm

Middle layer: SUS304 thickness: 4mm

Outside layer: SUS304 thickness:3mm




Bottom material exhaust, size: 1.5”

Temp. sensor (0-199℃)

Electrical heating: 8kw, cooling water inlet





Stirring system


1.Material: SUS316L; standard homogenizer
2. Power: 4kw/380/50Hz; RPM: 0--2800R/Min




Stirring scrap and

middle stirring

Material: SUS316L,Scrap material: PTFE

1. Stirring scrap and middle stirring use the same motor
2,Power:1.5 kw/380V/50Hz;RPM:0~86r/min(Frequency control)
3. Stirring scrap and middle stirring rotating the opposite direction

Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.

Vacuum system

1. Vacuum pump: water recycle, power 1.5kw/380V/50Hz
2. With pressure sensor (during vacuum condition, hydraulic can not open)

Heating method

Jacket electrical heating

Exhaust method

Electric doom and bottom discharge or positive pressure discharge material


Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa

Control box

SUS304 , 1.2mm thickness


1900mm×600mm×2650~3500 mm


Shelf is SS, platform with raised platform and SS guardrail

Spare parts

One year spare parts and tools


One year

Using life

More than 15 years


Features of the Vacuum Mixer Homogenizer

1. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;

3. Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;
4. Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
5. Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min
3500RPM 15KW 100L Vacuum Mixer Homogenizer For Viscous Fluid 2
