|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||According to product|
|Delivery Time:||2-3 weeks|
|Payment Terms:||L/C, D/P, T/T, Western Union|
|Keyword:||Cosmetic Making Machine||Mixer Type:||Homogenizer|
|Apply For:||Facial Cream , Hand Cream||Voltage:||220V/380V 50HZ|
|Automatic Grade:||Automatic||Product Type:||Cosmetic|
|Mixing Speed:||0-63 R/min Or Custom||Advantage:||Defoaming And Longer Shelf Life|
Multifunctional Cosmetic Making Machine,
50L Cosmetic Making Machine,
5.5KW Cosmetic Making Machine
Multifunctional Daily Cosmetic Making Machine Emulsifier Mixing Equipment
Emulsifier Mixing Equipment Technical parameter
|Model||Capacity||Homogenizer motor||Agitator||Outside dimension||total power||limit vacuum|
|KW||r/min||KW||r/min||Length||Width||Height||Steam heating||Electric heating|
Emulsifier Mixing Equipment Description
Vacuum homogenizing emulsifier is mainly used for heating and dissolving materials, homogenizing emuisification and vacum defoaming. It is the preferred equipment for middle and high-grade emulsion cream products. The whole equipment includes emulsifying pot, water phase pot, oil phase pot, operating platform, control system and so on. The vacuum mixing pot produced by our company is specially designed and manufactured for pharmaceutical, chemical, cosmetics, food, beverage and other industries. The effect of the frame mixing method is unique, and the mixing blades can also be manufactured according to customer requirements.
Emulsifier Mixing Equipment Working principle
It means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several phases to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
Emulsifier Mixing Equipment Main Features
1) The triple mixing adopts the imported frequency converter for speed adjustment,which can meet different technological demands.
2) The homogenization structure made through German technology adopts the imported double-end mechanical seal effect.
3) The maximum emulsifying rotation speed can reach 4200 rpm and the highest shearing fineness can reach 0.2-5um.
4) The vacuum defoaming can make the materials meet the requirement of being aseptic .
5) The emulsifying pot lid can adopt lifting system ,easy to clean and the cleaning effect is more obvious,the emulsifying pot can adopt tilt discharge.
6) The pot body is welded by imported three-layer stainless steel plate.
7) The tank body and the pipes adopt mirror polishing,which fully conforms to GMP requirements.
8) The heating modes mainly include steam heating or electric heating to ensure the control of the whole machine is more stable,the electric appliances adopt imported configurations,so as to fully meet the internal standards.
Emulsifier Mixing Equipment Details
High shear homogenization:

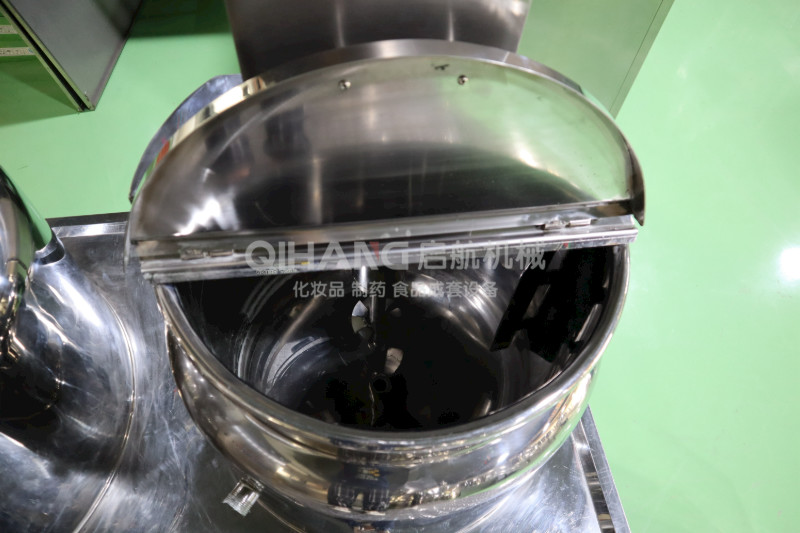

Mixing part (Material: SUS316, GMP standard):
Emulsifier Mixing Equipment Application
It widly used for cosmetic, pharmaceuticals, food, beverage, chemical products.
