63 r/min Cosmetic Manufacturing Equipment Homogeneous Mixer Machine

Product Details:
Place of Origin: China
Brand Name: Qihang
Certification: CE
Model Number: QHE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union

Detail Information

Apply For: Facial Cream , Hand Cream Keyword: Cosmetic Making Machine
Mixer Type: Homogenizer Voltage: 220V/380V 50HZ
Mixing Speed: 0-63 R/min Or Custom Automatic Grade: Automatic
Product Type: Cosmetic Advantage: Defoaming And Longer Shelf Life
High Light:

63 r/min Cosmetic Manufacturing Equipment


PLC Cosmetic Manufacturing Equipment


Defoaming Homogeneous Mixer Machine

Product Description


Cosmetic Manufacturing Production Line making machine homogenous mixer



The product mainly applied in such industries as daily chemical care products, biopharmacutical industry, food industry, paint and ink ,nanometer materials, petrochemical.
Industry, printing and dyeing auxiliaries, pulp & paper, pesticide, ferilizer, plastic & rubber, electronic and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
The Vacuum homogenizing emulsifier mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system(optional), electronic control system (PLC is optional), operation, etc.

The Cosmetic Blender Vacuum Emulsifying Lower Homogenizer Eumlsifier is consisted of water pot, oil pot, emulsifying pot, vacuum system, lifting system ( hydraulic lift ), electric control system, heating system, mixer system, operation platform.

The designing of Vacuum Emulsifying Mixer is based on importing advanced technology of professional cosmetic and pharmaceutical ointment producing workmanship from abroad. It is composed of emulsifying mixer, vacuum system, electric controlsystem etc. The whole-set of this equipment is composed of emulsifying mixing pot, Vacuum system, Hydraulic system, and electrical controlsystem.

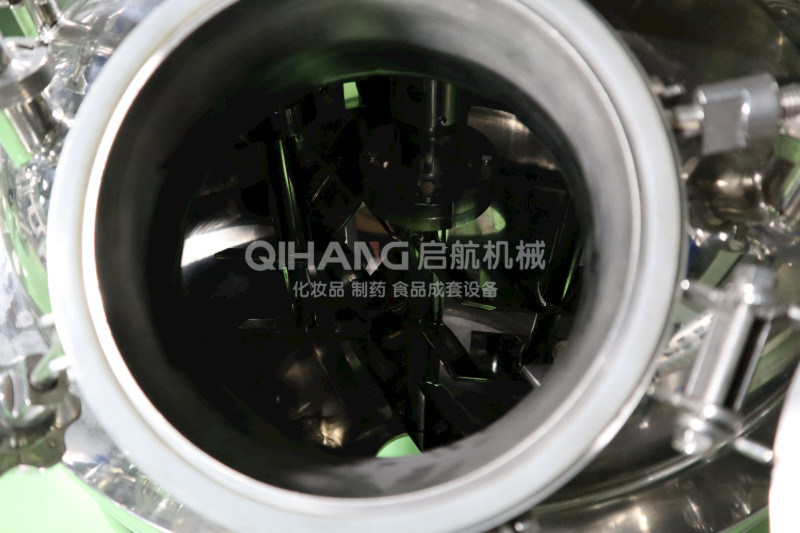

63 r/min Cosmetic Manufacturing Equipment Homogeneous Mixer Machine 0


Vacuum Emulsifying Mixer Application:

The Vacuum Emulsifying Mixer is composed of main pot(emulsifying pot), a water phase pot and an oil phase pot, vacuum unit, up-and down system, electrical control system and the motor frame etc.

It is used for food, drink, chemical products, daily necessities, medicine.

63 r/min Cosmetic Manufacturing Equipment Homogeneous Mixer Machine 1


Vacuum Emulsifying Mixer Feature:

  1. The main pot is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.

  2. The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.

  3. The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.

  4. The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.


Project Cases:

Manage ltem: vacuum homogenizing emulsifiers, high shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.


Costomer Reviews:

63 r/min Cosmetic Manufacturing Equipment Homogeneous Mixer Machine 2
