Homogenizing Emulsifying 63R/MN Cosmetic Making Machine

Product Description

Emulsifying 63R/MN Cosmetic Making Machine/Emulsion Mixer Machine/equipment used in

the manufacture of emulsions

Description of the Homogenizing Emulsifying:

Vacuum emulsifying machine, high shear homogenizer, cosmetic cream mixer means the material in a vacuum state, the use of high-shear emulsifier efficient, rapid and evenly distributed one phase or multiple phase to another phase, and each phase under normal circumstances (such as oil and water phase) are mutually exclusive.

Feature of the Homogenizing Emulsifying:

1. high sanitary standard manufacturing

2. internal surface mirror polished

3. agitation group consisting of two slow agitators and one fast agitator

4. double speed slow agitators(stepless speed variation as optional)

5. double speed fast agitators(stepless speed variation as optional)

6. mechanical seal of agitation groups

7. lifting cover system

8. tilting vessel

9. body and agitators made of SS AISI 316L

10. internal pressurization for discharge and inertization

11. SS AISI 304jacket

12. cover for thermal insulation made of SS tank in tank

13. vacuum group

14. heating station

15. sterilizing filter installed on the vacuum-breaking device

16. cleaning balls

17. embedded CIP group

18. product temperature check by means of Pt 100 probe,special sheath ,close to the side

19. buttons or PLC controlled process functions

20. electronic weighing system.

Type stirring blade were left to right:

single way mixing internal & external circulation, double way mixing internal & external circulation, single way mixing & internal circulation, double way mixing & internal circulation, single way mixing & external homogenizer, double way mixing & external homogenizer

Details of the Homogenizing Emulsifying:

• Frame mixer

Dead-end stirring with sufficient mixing area and good stirring effect.

• High shear homogenizer

Fast agitator: teethed type rotor and stater assembly installed on the vessel. Bottom or on the top as optional items, several interchangeable configurations ate available.

• Hydraulic lifting system

Used for material discharge and cleaning. It is more convenient and safer for the operator.

• Pharmaceutical grade material

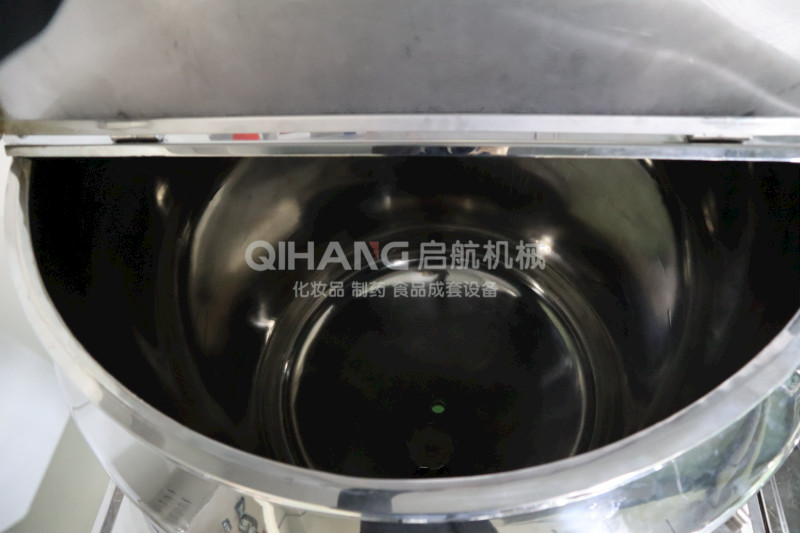

High quality SUS304 & 316 material, internal and external mirror polish of homogenized tank.

Safeguard:

1. If the mixer, homogenizer or power grid is overburden, the machine will stop automatically.

2. It will exhaust automatically when the vapor pressure in the pot is over the settled pressure.

3. It will drain off water if the pressure is over the settled pressure when the cooling water for the main pot enters the interlayer.

4. The security marks are sticked on the rack, electric box and the other operation table.

Application of the Homogenizing Emulsifying:

It is widly used for food, drink, chemical products, daily necessities, medicine.
