Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QIHANG |
| Certification: | CE;ISO |
| Model Number: | UI22 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | 11111-15555$ |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 2-3WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 66 SETS / YEAR |
|
Detail Information |
|||
| Mixer Type: | Homogenizer | Barrel Volume (L): | 220L |
|---|---|---|---|
| Weight (KG): | 1200 | Condition: | NEW |
| Warranty: | 1 YEAR | Electric Cabinet: | Buttons/PLC Control |
| High Light: | Homogenizer Cosmetic Manufacturing Machines,Vacuum Cosmetic Manufacturing Machines |
||
Product Description

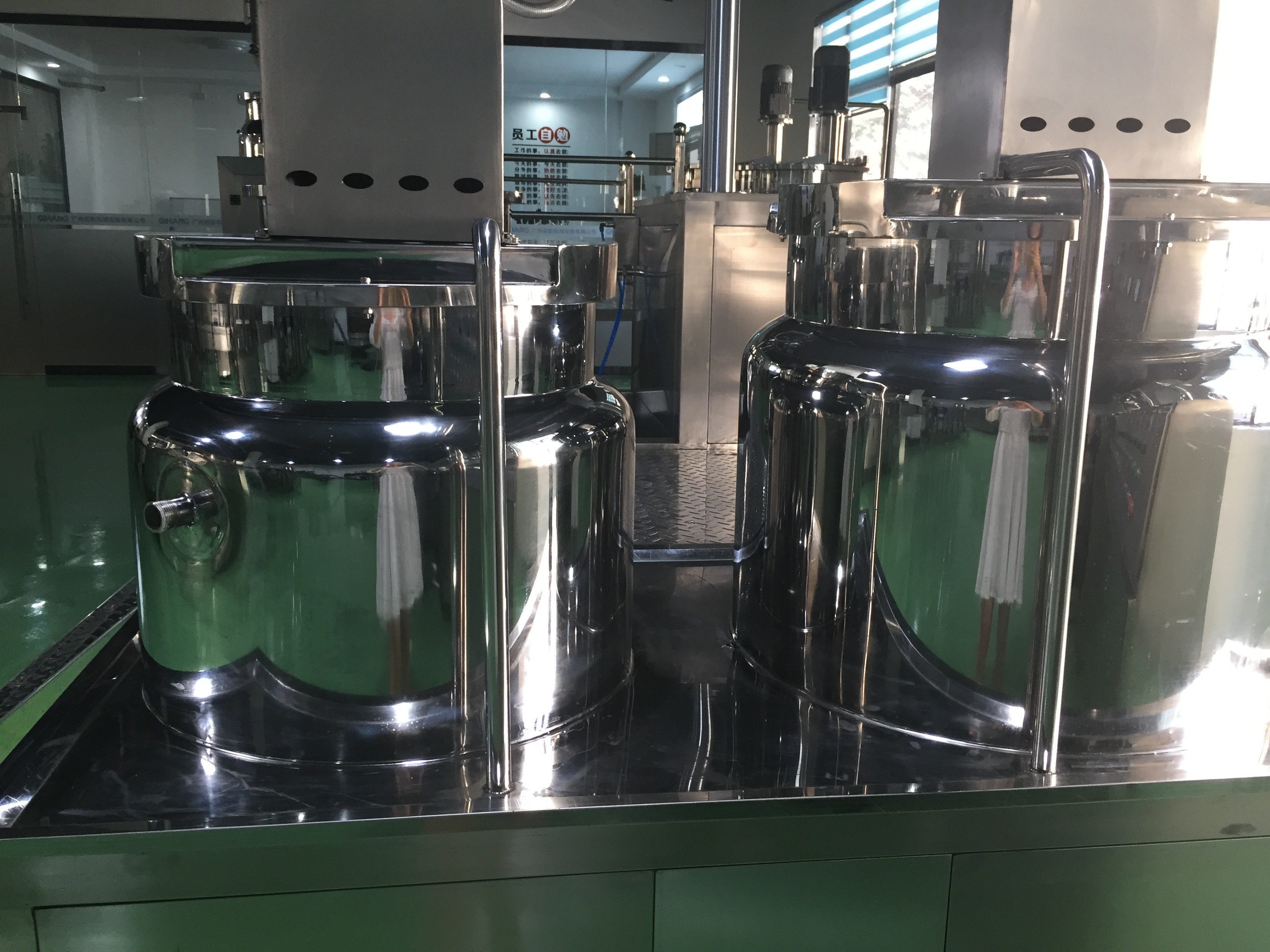

Vacuum Homogenizer Cream Mixer Cosmetic Manufacturing Machines
Product Description
Vacuum homogenizing emulsifier mixer means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic sheraing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be disperesed and emulsifed instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
The product mainly applied in such industries as daily chemical care products, biopharmacutical industry, food industry, paint and ink, nanometer materials, petrochemical Industry, printing and dyeing auxiliaries, pulp & paper, pesticide, ferilizer, plastic & rubber, electronic and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content. The Vacuum homogenizing emulsifier mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system(optional), electronic control system (PLC is optional), operation, etc.
Specification of the Vacuum Homogenizer
|
Description |
Parameter |
|
Power supply |
AC 380V /3phase (standard), can be customized |
|
Emulsifying pot structure |
3 layers stainless steel Inner layer: SUS316L, 5mm Middle layer: SUS304 ,4mm Outer layer: SUS304, 3mm |
|
Heating method |
Electric heating or steam heating |
|
Lifting type |
hydraulic lifting |
|
Mixing type |
Double direction mixing and bottom high shear homogneizer mixer |
|
Mixing speed |
Frame mixer: 0-63rpm Central mixer: 0-63rpm Homogneizer mixer: 0-2880rpm |
|
Motor |
Siemens, ABB is optional |
|
Frequency converter |
Delta, Mitsubishi is optional |
|
Discharge |
Bottom discharge outlet or hand wheel discharge |
Technical Parameters of the Vacuum Homogenizer
1, One set of vacuum emulsfiying homogeneous mixer be composed of one main pot, oil and water phase ,working platform and control cabinet.
2. complete accordance with GMP standard(Made of stainless steel, the tank body and pipe are carried out mirror polishing to 600U.
3. parts which contact materials are made of SU316L stainless steel.
4. bearing of the whole machine adopts Japan NSK products.
5. provide with Panasonic /Delta Frequency converter, this make a reduction of electricity, good protection of itself and stable running operation
6. long-life homogenizer with continuous 24 hours working time, the mechanical seal adopt Germany Bergman .
7. Scraper stirring paddle and resistance flow slurry runs oppositely to make sure full mixing effect. Mixing speed is 0-63rpm (frequency converter adjusting )
8. the machine is protected with protection system, make the working safer.
9. provide with bottom buffer in the oil cylinder of the electric oil pressure lifting system which named hydraulic lifting system.
10. Heating way: electricity or steam heating. Heating medium is water for electricity heating.
11. Compact design and easy operation is this kind of machine 's character.
