Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Qihang |
Certification: | CE |
Model Number: | VB56 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | 425$-1024$ |
Packaging Details: | According to product |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 100SETS/YEAR |
Detail Information |
|||
Keyword: | Cosmetic Filling Machine | Equipment Size: | L2250*W1050*H1720MM |
---|---|---|---|
Contact Materials: | Stainless Steel 316 | Feature: | Automatic Bag Feeding |
Passage Number: | 2 | Place Of Origin: | Guangdong, China |
Gross Weight: | 50KG | Condition: | NEW |
Packaging Material: | Wood | Type: | FILLING MACHINE |
Voltage: | 220V/110V | Application: | Chemical,Medical |
High Light: | 0.7mpa Cosmetic Packing Machine,15p Cosmetic Packaging Machine,SS Cosmetic Perfume Filling Machine |
Product Description
This series filling machine is foreign advanced filling machine technology transformation and innovative products, its structure is simple and reasonable precision, easy to operate, user-friendly design more in line with the requirements of the modern enterprise. Widely used in pharmaceutical, cosmetic, food, pesticides and special industries, is a high-viscosity fluid, paste quantitative filling the ideal equipment.
Powe supply | 200/110V 50/60HZ |
Sir pressure | 0.4-0.9mpa |
Power | 50-100W |
Filling speed | 10-60bottles/min |
Filling accuracy | ≤1% |
Filling volumes range | 5-100ml 10-300ml 50-500ml 100-1000ml 500-3000ml 1000-5000ml |
♦Characteristics♦

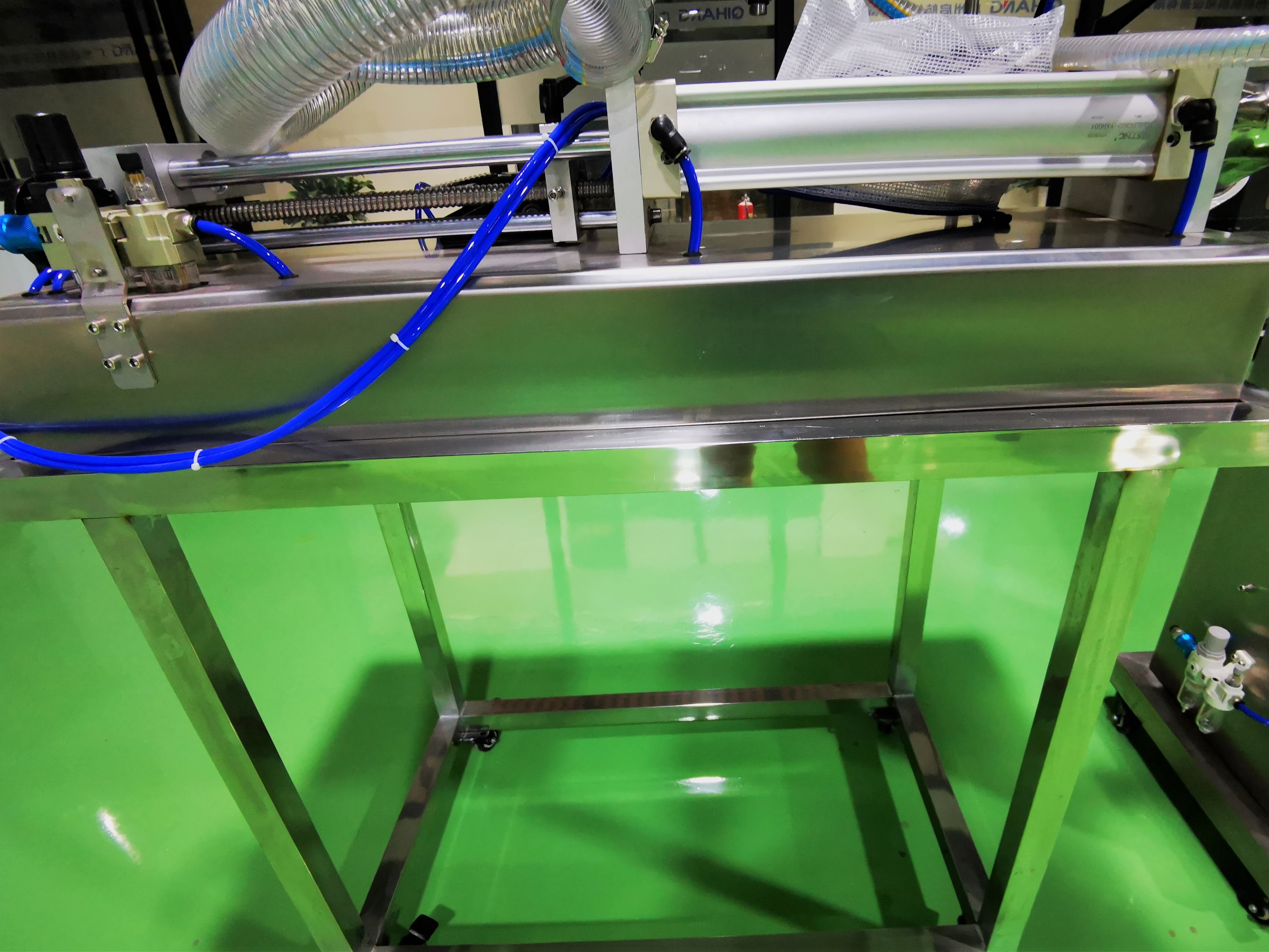

Semi-automatic piston ointment filling machine owns the function of explosion prevention. Apply to medicine, daily chemical, food, pesticides and special industries; it is ideal filling equipment for high-viscosity liquid. Since the machine is working under the uncharged state, it is more security; humanized design fits for modern enterprises requirements, Small and exquisite in model, the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan AirTac. The part contacting materials is made of 316L stainless steel. Both filling volume and filling speed can be adjusted at will, filling accuracy is high. Filling head adopts anti-leakage and lifting filling device.
♦Technical Parameter♦
Material | Stainless steel |
Automatic Grade | Semi-Automatic |
Filling accuracy | ±1% |
Air pressure range | 4-6kg/cm2 |
Power | pneumatic |
Filling head | Single head or Double Head or Customized |
Shipping package size | 950×420×380mm |
♦Packing List♦
Seal ring for discharge piston shaft | 2 pcs |
Anti-Drip Seal Ring | 4pcs |
Seal ring for discharge end | 2pcs |
Seal ring for changeable nozzle | 2pcs |
Piston Seal Ring | 2pcs |
Yoke Seal Ring | 2pcs |
Philips Screwdriver | 1pcs |
Allen Key(6,8) | Each 1 pcs |
Open end wrench | 1pcs |
Power wire | 1 strip |
Pedal Switch | 1pcs |
Instructions | 1 copy |
Warranty Card | 1 copy |
Certificate of comformity | 1 copy |
Advantage of product:
A. High Accuracy---- Pneumatic control besides hardware positioning, which has high filling precision that can be controlled between0.1%-1%(water).
B. Anti-explosion-----All adopt compressed air as the control, so they are quite suitable for the use in the request of anti-explosion environment.
C. Certainly Safe---Will not happen the leakage of electricity and no need to connect the ground wire.
D. Customized type----Any type, material and filling capacity can be customized according to your request.
Qihang according to wishes designed to meet both the technical requirements and investment plan to match the best solution. And relying on their own understanding of the technology industry and the cosmetics industry professional self-control team, committed to the professional digital solutions to provide the best quality customer service.
PROJECT CASES
Manage ltem: vacuum homogenizing emulsifiers, high shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.
FAQ
Q1: Are you factory ?
Of course yes, we are factory producing Vacuum Packaging Machinery ,Band Sealer,
Carton Sealer etc since 1988. We are Top3 Supplier in Wenzhou ,China.
Q2: Do you have CE Certificated ?
Yes. CE ,ISO9000 approved.
Q3: What’s payment do you support?
T/T, L/C at sight, Western Union is accepted. For regular order, 30% downpayment ,
70% balance before ship.
Q4: What’s lead time ?
Machines always be finished on 7days.
Q5: Do you support OEM/ODM?
Yes, we can develop the styles base on customer’s requirement.
Q6: Do you offer Certification Of Original?
Yes , we can.
Our Services
Pre-sales service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 1 years.
2.We provide free training and answer customer's question on technology in time.
