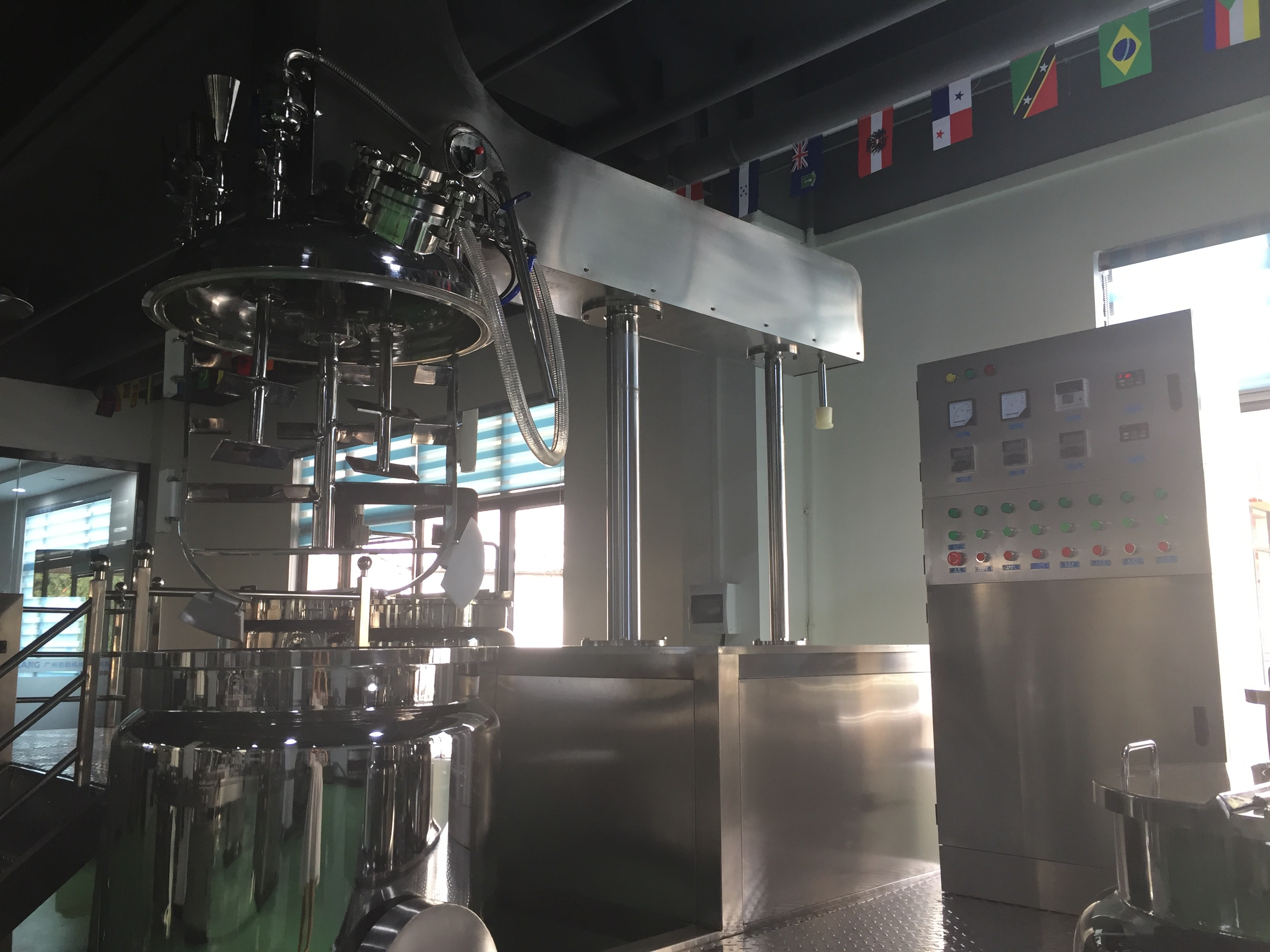

Pharmaceutical Button Lift Dispersing High Shear Homogenizer

Product Details:
Place of Origin: China
Brand Name: Qihang
Certification: CE;ISO;GMP
Model Number: QHE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 10045-32142$
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 98SETS/YEARS

Detail Information

Flow Range: 0-25t/h Keyword: Pipeline Highshear Dispersing Emulsifier
Mixer Type: Homogenizer Product Type: Cosmetic
Voltage: 220V/380V Warranty: 1 YEAR
Barrel Volume (L): 50 Weight (KG):: 3200
Power (kW):: 7.5 Core Components: Engine
High Light:

Lift Dispersing High Shear Homogenizer


Pharmaceutical High Shear Homogenizer


25t/h vacuum mixer machine

Product Description

Pharmaceutical Button Lift Dispersing High Shear Homogenizer

Button lift/Dispersing High Shear Homogenizer, vacuum mixer machine

/ pharmaceutical homogenizer


Dispersing Emulsifier introduction:

The high-shear dispersing emulsifier is to distribute one phase or more to another continuous phase in a highly-efficient, rapid and even way. Generally, the phases are mutually indissoluble. The materials will be processed in the narrow space between stator and rotor by high tangential speed and strong energy of motion respectively produced by fast-turning rotor and high frequency mechanical effect. By the operation of intensive shearing, centrifugal extruding, liquid layer attrition, impacting and breaking, and even turbulence, the materials of mutually indissoluble solid phase, liquid phase and gas phase will be refined, dispersed and emulsified instantly with the help of mature technology and proper amount of additive. After high frequency reciprocating circulation, products of stable quality are achieved.

Specification of the Dispersing High Shear Homogenizer:

Technical parameter




Main pot Water pot Oil pot Main pot power (KW)

Water oil pot

(powerx 2)kw

Hydraulic system (kw) Vacuum pump power (kw)
Volume(L) Wall scraping Homogenizer
5L 5L _ _ 0.18 1.1 _ 0.75 0.55
10L 10L 8 5 0.18 1.1 0.18 0.75 0.75
20L 20L 18 10 0.37 1.5 0.18 0.75 0.75
50L 50L 40 25 0.75 4-7.5 0.75 1.5 1.5
100L 100L 80 50 1.5 4-7.5 1.1 1.5 1.5
200L 200L 170 100 2.2 7.5-11 1.5 1.5 2.2
300L 300L 250 150 2.2 7.5-11 1.5 1.5 2.2
500L 500L 420 250 4 11 2.2 1.5 2.2
1000L 1000L 820 500 5.5 15 2.2 2.2 3

Main components of the vacuum emulsifying cream homogenizer:
◆Hydraulic lifting system (one button lift, one button down)
◆Heating thermostat system (steam heating)
◆Slow mixing function (frame type scraping bottom scraping)
◆Homogeneous emulsification function (high speed shear homogenizing head)
◆Vacuum system (vacuum degree up to -0.095MPA)
Pharmaceutical Button Lift Dispersing High Shear Homogenizer 0

Type stirring blade were left to right:

single way mixing internal & external circulation, double way mixing internal & external circulation, single way mixing & internal circulation, double way mixing & internal circulation, single way mixing & external homogenizer, double way mixing & external homogenizer

Performance and characteristics of vacuum emulsifying cream homogenizer:
◆Homogeneous mode: bottom homogenizing
◆The stirring method is: single way mixing
◆ Stirring and homogenization adopt imported frequency converter to meet the requirements of different production processes
◆Homogeneous structure of German technology, the speed can be customized, the highest cutting fineness can reach 2um-5um
◆ Vacuum defoaming to make the material meet the sterility requirements, vacuum suction (water, oil, powder) can be used.
◆The main pot lid can be lifted and lowered, easy to clean, and the pot body can be dumped and discharged.
◆Three-layer stainless steel structure of the pot body, mirror polished, fully in line with GMP requirements

Safety protection system of vacuum emulsifying cream homogenizer:
◆There is no vacuum to lift the lid.
◆The lid cannot be lifted when the mixture is opened.
◆The stirring cannot be started when the lid is raised or the lid is not covered.
◆The dump does not reset and the lid cannot rise and fall.
◆The lid does not rise to the highest point and cannot be dumped.
◆ Stirring, homogenizing overload, or automatic shutdown of grid overvoltage.
◆The main pot cooling water is automatically drained when the interlayer pressure exceeds the set pressure.
◆ There will be a buzzer alarm when the main pot beam rises and falls.
◆The electronic control system is equipped with an emergency stop button to prevent immediate stop in case of emergency.
◆ Safety signs (Chinese and English) are attached to the equipment rack and electrical box and the eye-catching operation

  Pharmaceutical Button Lift Dispersing High Shear Homogenizer 1


Siemens motor:

  • Higher efficiency levels reduce energy consumption and directly enable users to save costs.
  • The higher protection level (IP55) ensures safe and reliable use by customers.

Delta inverter:

  • High energy-saving machine efficiency
  • Efficient input and output power factor
  • Highly flexible expansion method
  • Low overall investment and maintenance costs

High shear homogenization:

  • High uniformity, good polishing, energy saving, stable operation
  • Speed of fast homogenizing stirrer:0-3500r/min (frequency conversion speed regulation)

Mixing part (Material: SUS316, GMP standard):

  • Speed: slow wall scraping stirrer speed: 0-63r/min (frequency conversion speed regulation)
  • Siemens motor + reducer provide strong and stable power for mixer, panasonic brand frequency inverter, PTFE material scrape blade.

Product Application of the Dispersing High Shear Homogenizer:

high quality 50L/100L /200L/300L/500L vacuum emulsifying cream homogenizer mainly refers to the material in a vacuum state, using a high shear homogenizer to quickly and uniformly distribute one phase or multiple phases in at least one other continuous phase (aqueous phase, oil phase, powder, etc.) The strong kinetic energy makes the material in the gap between the stator and the rotor, and it can withstand hundreds of thousands of times of high-speed shearing, centrifugal crushing and impact tearing every minute, and evenly disperse the emulsification instantaneously. After high-frequency reciprocation, finally A high quality product with no bubbles and fineness is obtained.

Pharmaceutical Button Lift Dispersing High Shear Homogenizer 2
