Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | QIHANG |
| Certification: | CE, GMP, ISO |
| Model Number: | RT |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiation |
| Price: | 25424$ |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 3-4 WEEKS |
| Payment Terms: | L/C, D/A, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 67 SETS/YEAR |
|
Detail Information |
|||
| Number Of Filling Heads: | 6 Filling Heads | Production Speed: | 6000-7200 Bags/hour |
|---|---|---|---|
| Bag Width: | 120-170mm | Length Of Bag: | 140-220mm |
| 6 Filling Mode: | Gear Pump | Equipment Power Supply: | 220V/ 1pH |
| Equipment Power: | 7.5KW | Thermostat: | Omron |
| Solenoid Valve: | CDK | Power Voltage: | 380V 50HZ 6.5KW |
| High Light: | PLC Facial Mask making machine,6mm Facial Mask equipment |
||
Product Description

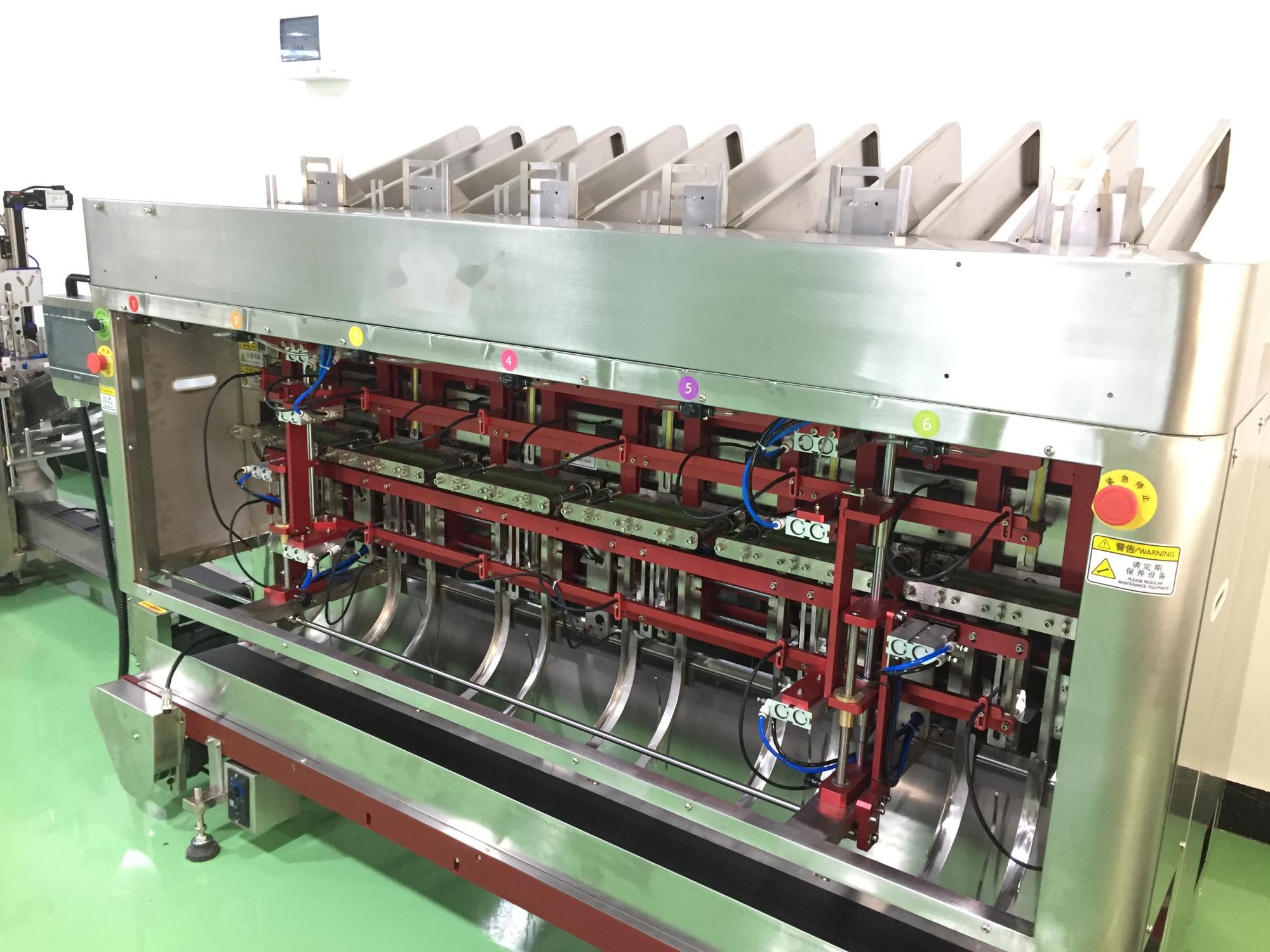

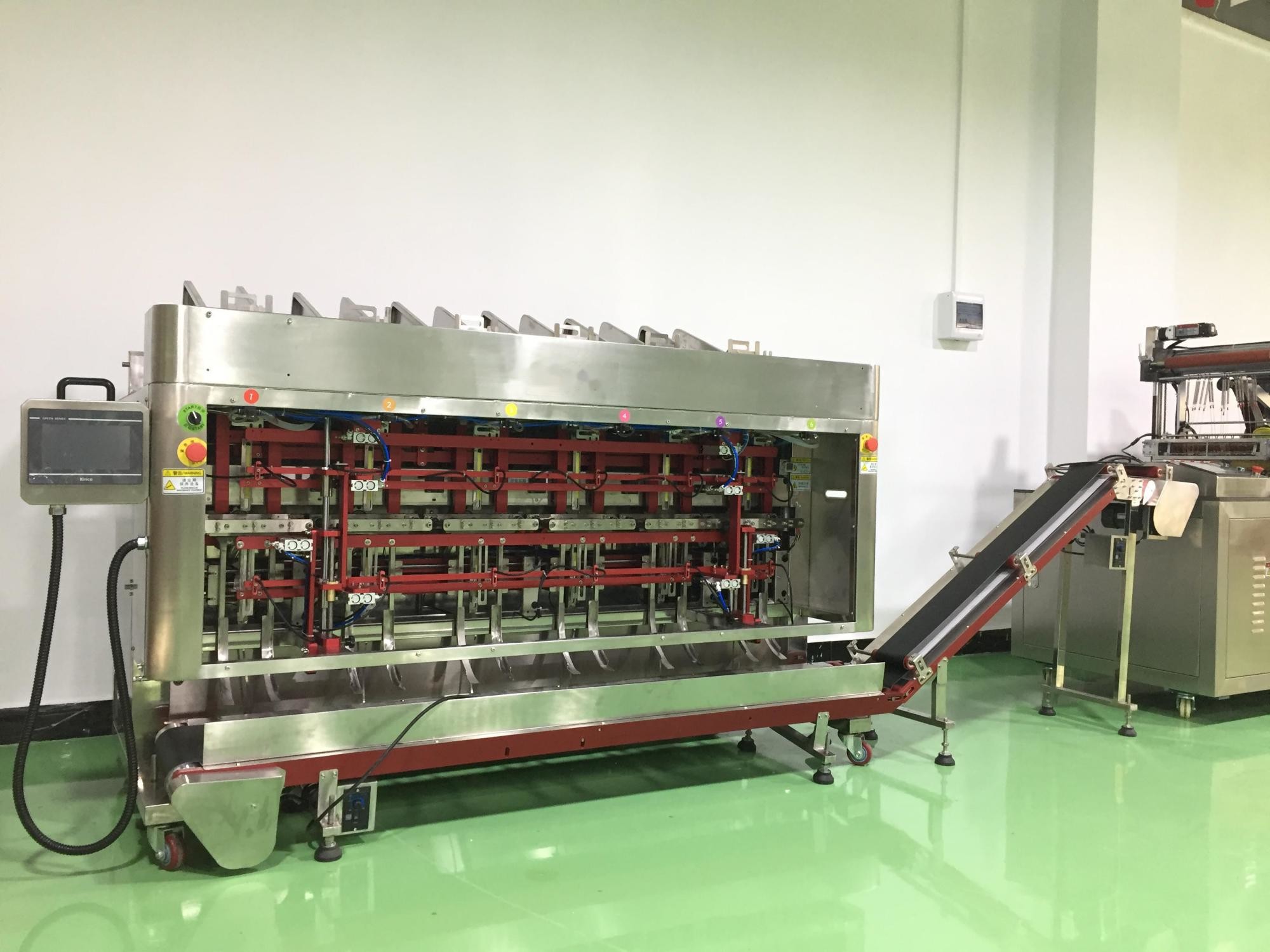

5 OR 6 FILLING HEADS CE ISO GMP CHINA HIGH PRODUCT MASK MAKING MACHINE
New face mask packing machine factory direct sale is controlled by micro-computer with linear design and engine of famous brands like Schneider and OMRON and equipped with German PLC system. The volume calculation of this machine is precise with easy handing. Its sealing system is controlled by intelligent temperature controller with high qualified rate. This machine is special designed for facial mask factory with professional research, compact structure and easy operation, which can fulfill the whole packing process of facial mask production with no dripping. Moreover, one worker can handle two machines at the same time.
Working Processes:
Auto Packing Locating - Auto Filling - Auto Sealing - Auto Printing - Finished
Description
The machine can be used for the full automation production of household and medical disposable face mask.
This is a new machine, they have to manufacture it when the order is received, delays 2 months after order and payment received.
There is a warranty of 12 months.
Adjustment of opening height
First, put the bag in the filling place. The pocket must be adjusted 2-3 millimeters higher than the suction cup, but it is at least 5 millimeters lower than the filling pipe. The guides on both sides of the bag should be 3-6 mm wider than the bag. It should not be too tight or too loose. Too tight, it is easy to clip bags, too loose, the bags are easy to clip.
Adjustment of sealing height
Adjust the height of the lower baffle by adjusting the black handle on the screw rod. The bag will rise or fall with the lower baffle to adjust the sealing height. The left black handle can adjust the width of the guide grooves on both sides of the sealing part, which should be 3-6 mm wider than the bag.
Technical Features:
PLC and touch screen control system, stable performance, easy to operate.
No bag, no filling, no bag, no sealing.
Main configuration:
| Kinco | Touch screen |
| PLC | Hechuan |
| Thermostat | Omron |
| Electric eye | Dedicated |
| Solenoid valve | CDK |
| Frame | Stainless steel |
Input type: Thermocouple
| Input | Set value | Range(℃) | Range(℉) |
| K | 0 | -200-1300 | -300-2300 |
| 1 | -20.0-500.0 | 0.0-900.0 | |
| J | 2 | -100-850 | -100-1500 |
| 3 | -20.0-400.0 | 0.0-750.0 | |
| T | 4 | -200-400 | -300-700 |
| 5 | -199.9-400.0 | -199.9-700.0 | |
| R | 6 | 0-1700 | 0-3000 |
| S | 7 | 0-1700 | 0-3000 |
Default: 0
Reference temperature for general packaging materials
|
Packaging materials
|
Setting temperature |
|
Paper/polyethylene; Pure aluminum/polyethylene |
160~180℃ |
| Cellophane/polyethylene | 110~130℃ |
| Paper/polyethylene | 170~200℃ |
| Polypropylene/polyethylene | 120~140℃ |
