Cosmetic Cream Vacuum Emulsifying Machine

Product Details:
Place of Origin: CHINA
Brand Name: Qihang
Certification: CE,GMP,ISO
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 42373$
Packaging Details: WOODEN BOX
Delivery Time: 2-3 WEEKS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70 SETS/YEAR

Detail Information

Port: Guangzhou, China Mixer Type: Homogenizer
Working: High Speed Mixer Stirring Type: Spiral
Application: Liquid With Suspended Solids, Powder, Viscous Fluid, Liquid Power: 5.5kw
Control: Button Control Panel Specification: Stainless Steel
Condition: New Warranty: 1 Year
Max. Loading Capacity: Customized Heating Method: Electric Heating/Steam Heating
Function: Mixing,emulsifying,homogenizing,Dispersed/mixing,Vacuum Emulsifier For Making High Viscodity Usage: Cosmetic,chemical,dairy,beverage,Cream
High Light:

10000L vacuum emulsifying mixer


Cream vacuum emulsifier

Product Description


Cream Homogenizer,Cosmetic Cream Vacuum Emulsion Homogenizer Mixer


Application of the Vacuum Emulsion Homogenizer Mixer
The spiral mixing emulsifying machine is used to mix ointment, unguent, cosmetic products, food, cream and other emulsions. This type of emulsifying machine is equipped with a spiral mixer, which is especially suitable for materials with high viscosity and solid content. If you are manufacturing cosmetic emulsion, cream and ointment, food, pharmaceuticals, or all kinds of coatings and dyes, we can always provide specially tailored solutions for you.

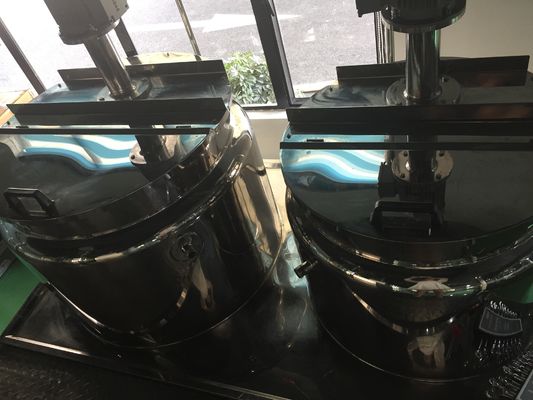

Cosmetic Cream Vacuum Emulsifying Machine 0

Specification of the Vacuum Emulsion Homogenizer Mixer:

Model Capacity Emulsify Agitator Outside Dimension total power steam/electric heating limit vacuum
Main Pot Water pot Oil pot KW r/min KW r/min Length Width Height
100 100 80 50 2.2-4



1.5 0-63 1800 2500 2700 8/30 -0.09
200 200 160 100 2.2-5.5 2.2 2000 2750 2800 10/37
300 300 240 150 3-7.5 3 2300 2950 2900 12/40
500 500 400 250 5.5-8 3-4 2650 3150 3000 15/50 -0.085
800 800 640 400 7.5-11 4-4.5 2800 3250 3150 20/65
1000 1000 800 500 7.5-11 4-7.5 2900 3400 3300 29/75 -0.08
2000 2000 1600 1000 11-15 5.5-7.5 3300 3950 3600 38/92
3000 3000 2400 1500 15-18 7.5-11 3600 4300 4000 43/120

Cosmetic Cream Vacuum Emulsifying Machine 1

Feature of the Vacuum Emulsion Homogenizer Mixer
1. The emulsifying machine adopts advanced vacuum suction technology, which has a superior effect for powder materials and effectively prevents dust explosion.
2. The mixing process of materials is performed in a vacuum condition to prevent bubbles in high speed stirring and reach the request of sanitation and asepsis.
3. Our emulsifying machine is equipped with CIP cleaning system. All parts contacted with materials is made from SUS316L and the internal surface of equipment is polished according to 300EMSH health standards.
4. Hydraulic lifting system is design with sealing device ensuring more stable and safe lifting process.
5. The bottom of emulsifying vessel adopts flat bottom discharge valve ensuring complete discharging without residue.
6. By setting temperature and heating time, our machine can realize automatic heating and freezing.
7. Out emulsifying machine adopts bidirectional stirring, the direction of inner impeller and outer impeller can be switched on a timer.
8. The vessel cover is equipped with glass sight lighting to watch the processing condition of materials in the emulsifying vessel.
9. A sprinkler ball is installed on the cover of emulsifying machine, which can clean the whole vessel completely as it is free of dead corners.
10. The complete machine is made of SUS316 or SUS304 stainless steel.
11. When emulsifying vessel is in vacuum, material can be suctioned from oil phase vessel and water phase vessel. The vessel has tube that prevent reverse flow occurring and prevent crystals from forming in the surface of vessel.

Cosmetic Cream Vacuum Emulsifying Machine 2

Cosmetic Cream Vacuum Emulsifying Machine 3

Type stirring blade were left to right:

single way mixing internal & external circulation, double way mixing internal & external circulation, single way mixing & internal circulation, double way mixing & internal circulation, single way mixing & external homogenizer, double way mixing & external homogenizer


1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How long is the warranty period?
A: All of our products have one year warranty.
3. Q: What's the main market of your company?
A: We have customers all over the world.
4. Q: What's your delivery time and payment terms?
A: Normally, it need about 10-30 days. The exact time depends on your company quality. The payment terms always 60% deposits, 40% to be paid before shipment.
5. Q: Can we visit your machine operation in your company?
A: Welcome to our factory to see the machine operation.
6. Q: Where's your factory located? How can we visit there?
A: We are in Yangzhou Industry Zone. Jiangsu province, China. You can take the plane to Zhenjiang airport and we will pick you up there.
