China Cosmetic Making Machine manufacturer

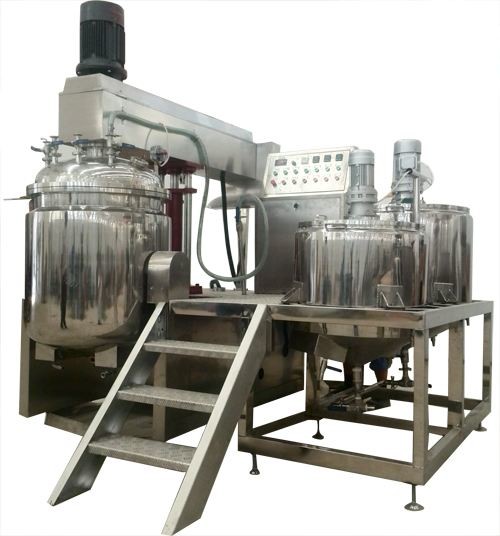

Cosmetic / Shampoo / Detergent 1000L-A Vacuum Homogeneous Emulsifier

Product Details:
Place of Origin: CHINA
Brand Name: Qihang
Certification: CE.GMP
Model Number: QH-G-ZRG-B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: 14424$
Packaging Details: AS YOU LIKE
Delivery Time: 3-4WEEKS
Payment Terms: Western Union, D/A, MoneyGram
Supply Ability: 5 SET/WEEK

Detail Information

Upper Pot Cover Material: 316L Stainless Steel, Thickness Of 5mm Material Piping: All Parts Contacting With Material Are Made Of 316L Stainless Steel Spice Bucket Made Of Stainless Steel
Polishing Grade: The Inside And Outside Parts Of The Pot Are More Than 300 Mesh Discharging Valve: 51mm Stainless Steel Ball Valve
Material Of Agitator: 316L Stainless Steel Open Cover: Pot Cover Sealed, Manhole Open Cover
High Light:

vacuum homogenizer cream mixer


high speed homogenizer

Product Description

1000L-A vacuum homogeneous emulsifier for Cosmetic /shampoo/detergent Making and Liquid Soap making


Cosmetic /shampoo/detergent Making Machine Homogenizer Mixer Hand Wash Liquid Soap Making Machine






Mixing method:

1. Frame-type wall scraping and stirring, power 7.5KW, rotation speed 0-60 RPM

2. Material of agitator: 316L stainless steel

Polishing grade: the inside and outside parts of the pot are more than 300 mesh

Discharging valve: 51mm stainless steel ball valve


Seal: Mechanical seal

Open cover: pot cover sealed, manhole open cover

Discharging mode: manual ball valve with diameter of 51mm discharging or pumping discharging

Temperature display: Thermal resistance thermometer

(less than or equal to 140 degrees)


Vacuum: Pressure vacuum gauge, vacuum gauge ≦ -0.08mpa

Heating and cooling method: Steam heating water cooling


Capacity design: Designed volume 1100L, working volume 1000L

Main process parameters: 1. Jacket working pressure: 0.25mpa

2. Working pressure of inner pot is -0.08-0.01mpa



Material: 1. The inner pot is made of 316L stainless steel with a thickness of 6mm (GMP )

2. Jacket material SUS304 stainless steel, thickness of 5mm (GMP )

3. The shell is made of SUS304 stainless steel with a thickness of 2mm (GMP)


Upper pot cover material: 316L stainless steel, thickness of 5mm

Vacuum pressure gauge, vent valve, vacuum port, view mirror lamp, view mirror port with scraper, spice funnel;

Vacuum pump 4KW water ring vacuum pump, type 2BV, pumping speed 1220L/ min


Material piping: All parts contacting with material are made of 316L stainless steel

Spice bucket made of stainless steel, quantity: 1 set

Polishing grade: the inside and outside parts of the pot are more than 300 mesh

Discharging valve: 51mm stainless steel ball valve;



Tank structure tank body is three-layer, sealed vacuum tank body, heating with external insulation device, lower oval head, tank body in the center with paddle stirring, pipe mouth, view mirror, valve outlet at the bottom, temperature probe




Cosmetic / Shampoo / Detergent 1000L-A Vacuum Homogeneous Emulsifier 01000L-A vacuum homogeneous emulsifier.pdf


Vacuum Emulsifying Mixer Introduction:
The equipment includes a vacuum emulsification mixing boiler, a vacuum pump, a hydraulic lifting system, a dumping system, an
electrical control system, a working platform and the like. Can be used for the production of ointment and cream products in
cosmetics and pharmaceutical factories. Vacuum defoaming can make the material meet the requirement of sterility. Vacuum material
suction, especially for power materials, can avoid dust. According to technological requirements, the tank can heat or cool the
material. Heating methods include steam heating and electric heating. The internal parts are made of 316 and 304 stainless steel.
Parts of this machine can be customized according to the needs of customers. (We have different models of this machine. For more
details, please contact us or leave a message. )
Vacuum Emulsifying Mixer Application:
1. Daily Chemical & Cosmetics Industry:
such as baby cream, skin cream face cream, shaving cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream,
face cleanser, moisture cream, detergent, shampoo etc;
2. Food Industry:
Sauce, cheese, oral, nutrition, infant food, chocolate, sugar and so on., tomato paste etc;
3. Pharmacy Industry:
Latex, emulsions, salves (ointments), oral syrup, liquid. etc;
4. Chemical Industry:
Latex, sauce, saponification products, paints, coatings, resins, adhesives, lubricants and the like.


The designing of Vacuum Emulsifying Mixer is based on importing advanced technology of professional cosmetic and pharmaceutical ointment producing workmanship from abroad. It is composed of emulsifying mixer, vacuum system, electric controlsystem etc. The whole-set of this equipment is composed of emulsifying mixing pot, Vacuum system, Hydraulic system, and electrical controlsystem.


Vacuum Emulsifying Mixer Feature:

The main pot is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.
The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.
The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.
The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.


Description Details
Name Vacuum Emulsifier Mixer



Make production under vacuum → De-foaming
Vacuum to suck raw material → Anti-bacteria
Lid with hydraulic lifting system→ Easy cleaning + Tilting discharge



1. Food: mayonnaise, tomato paste, cake gel, honey, chocolate etc.
2. Medical: ultrasound gel, injection, syrup, etc.
3. Cosmetic: cream, body lotion, shaving foam, toothpaste, etc.


Qihang according to wishes designed to meet both the technical requirements and investment plan to match the best solution. And relying on their own understanding of the technology industry and the cosmetics industry professional self-control team, committed to the professional digital solutions to provide the best quality customer service.



Manage ltem: vacuum homogenizing emulsifiers, high shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.
