Equipment Used In The Manufacture Of Emulsions,Emulsion Mixer Machine/Vacuum Emulsifier

Product Details:
Place of Origin: China
Brand Name: QiHang
Certification: CE
Model Number: QHE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union

Detail Information

Voltage: 220V/380V Condition: New
Product Type: Cosmetic,food,chemical,homogeneous Additional Capabilities: Homogenizing,emulsifying
Application: Liquid With Suspended Solids,Chemicals Processing,Medicine Processing,Food Processing Max. Loading Capacity: 5000L
Certification: CE,ISO9001 Material: SS316
Machine Type: Emulsifier Function: Emulsifying,homogenizing
Usage: Cosmetic,chemical,dairy,Cream Name: Emulsifying Emulsion Pump
Product Name: Homogenizing Emusifying Machine
High Light:

vacuum emulsifying mixer


emulsifying equipment

Product Description

Equipment Used In The Manufacture Of Emulsions, Emulsion Mixer Machine/Vacuum Emulsifier

Gel Making Machine Electric Heating Or Steam Heating Homogenization Emulsifier


Description of the Vacuum Emulsifier:

Vacuum emulsifying machine, high shear homogenizer, cosmetic cream mixer means the material in a vacuum state, the use of high-shear emulsifier efficient, rapid and evenly distributed one phase or multiple phase to another phase, and each phase under normal circumstances (such as oil and water phase) are mutually exclusive.


Feature of the Vacuum Emulsifier:

1. high sanitary standard manufacturing

2. internal surface mirror polished

3. agitation group consisting of two slow agitators and one fast agitator

4. double speed slow agitators(stepless speed variation as optional)

5. double speed fast agitators(stepless speed variation as optional)

6. mechanical seal of agitation groups

7. lifting cover system

8. tilting vessel

9. body and agitators made of SS AISI 316L

10. internal pressurization for discharge and inertization

11. SS AISI 304jacket

12. cover for thermal insulation made of SS tank in tank

13. vacuum group

14. heating station

15. sterilizing filter installed on the vacuum-breaking device

16. cleaning balls

17. embedded CIP group

18. product temperature check by means of Pt 100 probe, special sheath, close to the side

19. buttons or PLC controlled process functions

20. electronic weighing system.

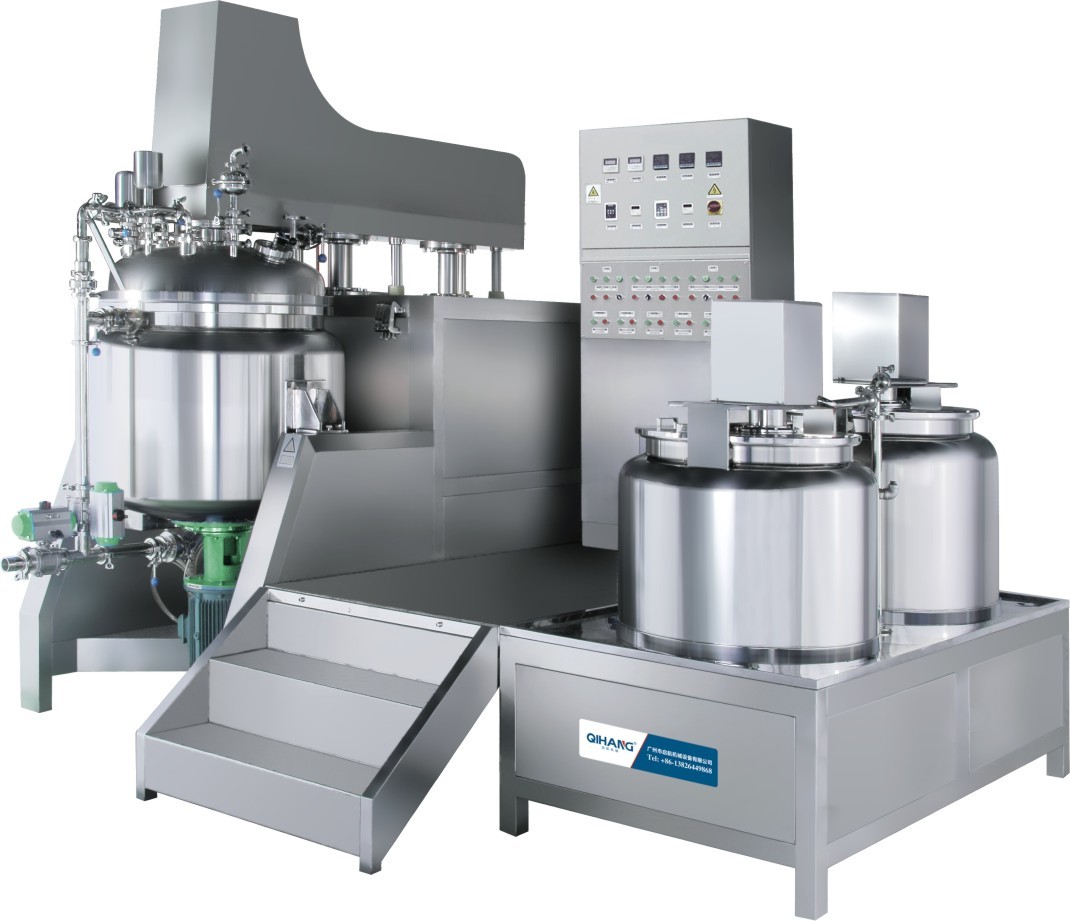

Equipment Used In The Manufacture Of Emulsions,Emulsion Mixer Machine/Vacuum Emulsifier 0

Type stirring blade were left to right:

single way mixing internal & external circulation, double way mixing internal & external circulation, single way mixing & internal circulation, double way mixing & internal circulation, single way mixing & external homogenizer, double way mixing & external homogenizer


Application of the Vacuum Emulsifier:

Daily Chemical & Cosmetics Industry: 1. Such as baby cream, skin cream face cream, shaving cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream, face cleanser, moisture cream, detergent, shampoo etc; 2. Food Industry: Sauce, cheese, oral, nutrition, infant food, chocolate, sugar and so on., tomato paste etc; 3. Pharmacy Industry: Latex, emulsions, salves (ointments), oral syrup, liquid. etc; 4. Chemical Industry: Latex, sauce, saponification products, paints, coatings, resins, adhesives, lubricants and the like.

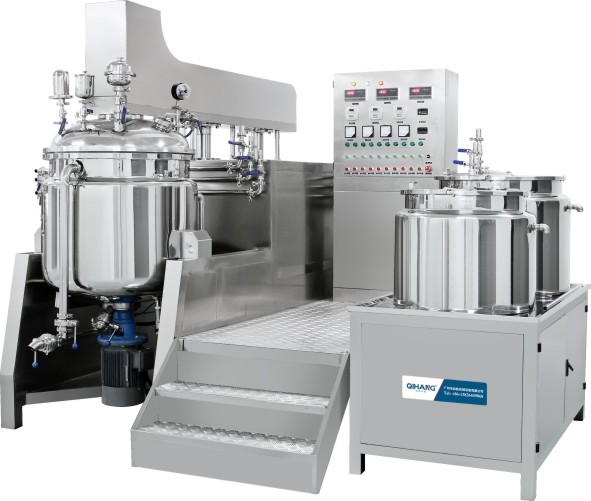

Equipment Used In The Manufacture Of Emulsions,Emulsion Mixer Machine/Vacuum Emulsifier 1



Q1: Are you a machine manufacturer or trading company?

A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!

Q2: How do you guarantee this machine normally operating?

A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
