China Cosmetic Making Machine manufacturer

Customized Equipment For Making Cosmetics Lotion / Cream Making Machine

Product Details:
Place of Origin: China
Brand Name: Qihang
Certification: CE
Model Number: yu
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union

Detail Information

State Of Treated Mterial: Homogeneous And Refining Key Selling Points: Automatic
Mixing Power: 0.75kw Power: 15 KW
Additional Capabilities: Vacuum, Homogeneous Voltage: Customized To Requirements
Product Type: Pharmaceuticals, Cosmetics, Food, Etc Feature: High Performance
High Light:

cosmetic processing equipment


cosmetic manufacturing machinery

Product Description

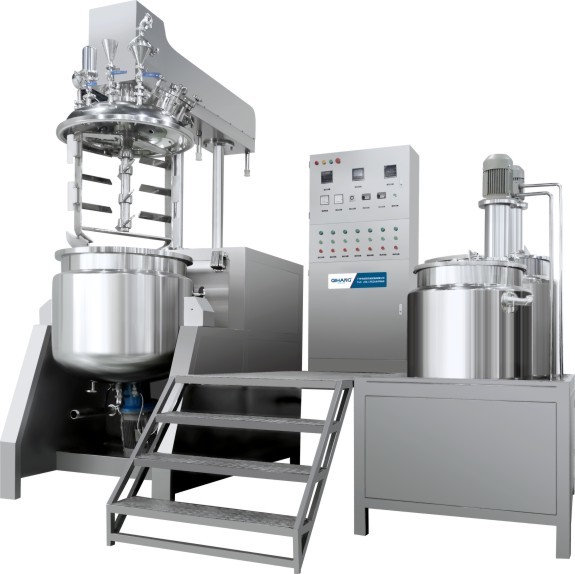

Stainless Steel Mixing Equipment Vacuum Emulsifying Mixer

Cosmetic Cream Making Machine


Description of the Vacuum Emulsifying Mixer:

  • The main pot is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.

  • The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.

  • The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.

  • The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.

Customized Equipment For Making Cosmetics  Lotion / Cream Making Machine 0


Performance & feature of the Vacuum Emulsifying Mixer:




5L vacuum emulsifying mixer


Design volume: 6L, working capacity:5 L

Kettle Cover

Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp




Mixing pot



Inner layer: SUS316L thickness: 3mm

Middle layer: SUS304 thickness: 2mm

Outside layer: SUS304 thickness:2mm



Bottom material exhaust, size: 1.5”

Temp. sensor (0-199℃)

Electrical heating: 2kw, cooling water inlet





Stirring system



1.Material: SUS316L; standard homogenizer

2. Power: 1.1 kw/380/50Hz; RPM: 0--2800R/Min

Stirring scrap and middle stirring

Material: SUS316L,Scrap material: PTFE

1. Stirring scrap and middle stirring use the same motor

2,Power:0.75 kw/380V/50Hz;RPM:0~86r/min(Frequency control)

3. Stirring scrap and middle stirring rotating the opposite direction

Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.

Vacuum system

1. Vacuum pump: water recycle, power 0.37kw/380V/50Hz

2. With pressure sensor (during vacuum condition, hydraulic can not open)

Heating method

Jacket electrical heating

Exhaust method

Electric doom and bottom discharge or positive pressure discharge material


Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa

Control box

SUS304 , 1.2mm thickness


1400mm×600mm×1900~2400 mm

Shelf is SS, platform with raised platform and SS guardrail

Spare parts

One year spare parts and tools


One year

Using life

More than 15 years


Projec Cases:

Manage ltem: vacuum homogenizing emulsifiers, high shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.


Details of the Vacuum Emulsifying Mixer:

Customized Equipment For Making Cosmetics  Lotion / Cream Making Machine 1

Application of the Vacuum Emulsifying Mixer:

It is used for food, drink, chemical products, daily necessities, medicine.

Customized Equipment For Making Cosmetics  Lotion / Cream Making Machine 2
