China Cosmetic Making Machine manufacturer

Emulsifying Homogenizer Cosmetic Making Machine Mixer Making Machine

Product Details:
Place of Origin: China
Brand Name: Qihang
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union

Detail Information

Keyword: Cosmetic Making Machine Mixer Type: Homogenizer
Apply For: Facial Cream , Hand Cream Voltage: 220V/380V 50HZ
Automatic Grade: Automatic Product Type: Cosmetic
Mixing Speed: 0-63 R/min Or Custom Advantage: Defoaming And Longer Shelf Life
High Light:

cosmetic processing equipment


cosmetic manufacturing machinery

Product Description


Emulsifying Homogenizer Equipment, Cosmetic Mixer Making Machine,

Small Cosmetic Making Machine


Description of the Emulsifying Homogenizer Equipment

Vacuum homogenizing emulsifier is mainly used for heating and dissolving materials, homogenizing emuisification and vacum defoaming. It is the preferred equipment for middle and high-grade emulsion cream products. The whole equipment includes emulsifying pot, water phase pot, oil phase pot, operating platform, control system and so on. The vacuum mixing pot produced by our company is specially designed and manufactured for pharmaceutical, chemical, cosmetics, food, beverage and other industries. The effect of the frame mixing method is unique, and the mixing blades can also be manufactured according to customer requirements.


Technical parameter of the Emulsifying Homogenizer Equipment

Model Capacity Homogenizer motor Agitator Outside dimension total power limit vacuum
KW r/min KW r/min Length Width Height Steam heating Electric heating
10 10L 0.75








1350 580 1200/1800 3 6




20 20L 0.75-1.1 0.55 1400 650 1450/2000 3 6
50 50L 2.2-5.5 1.1 2185 2500 1920/2650 9 18
100 100L 3-7.5 1.5 2385 2600 1850/2900 13 30
200 200L 4-9 2.2 2685 3000 2380/3240 15 40
300 300L 4-11 2.2 3000 3400 2500/3600 18 49 -0.085
500 500L 5.5-11 4 3400 3500 2900/3900 24 63




1000 1000L 7.5-15 5.5 3600 4200 3300/4600 30 90
2000 2000L 11-18.5 7.5 4200 4800 3800/5400 40 -


Emulsifying Homogenizer Cosmetic Making Machine Mixer Making Machine 0


Working principle of the Emulsifying Homogenizer Equipment

It means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several phases to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.


Main Features of the Emulsifying Homogenizer Equipment

1) The triple mixing adopts the imported frequency converter for speed adjustment,which can meet different technological demands.
2) The homogenization structure made through German technology adopts the imported double-end mechanical seal effect.
3) The maximum emulsifying rotation speed can reach 4200 rpm and the highest shearing fineness can reach 0.2-5um.
4) The vacuum defoaming can make the materials meet the requirement of being aseptic .
5) The emulsifying pot lid can adopt lifting system ,easy to clean and the cleaning effect is more obvious,the emulsifying pot can adopt tilt discharge.
6) The pot body is welded by imported three-layer stainless steel plate.
7) The tank body and the pipes adopt mirror polishing,which fully conforms to GMP requirements.
8) The heating modes mainly include steam heating or electric heating to ensure the control of the whole machine is more stable,the electric appliances adopt imported configurations,so as to fully meet the internal standards.


Details of the Emulsifying Homogenizer Equipment

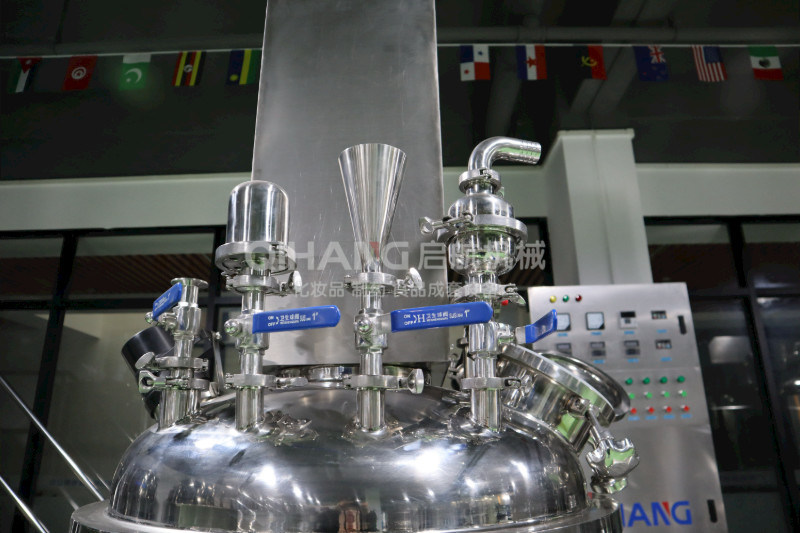

Emulsifying Homogenizer Cosmetic Making Machine Mixer Making Machine 1


Siemens motor:

  • Higher efficiency levels reduce energy consumption and directly enable users to save costs.
  • The higher protection level (IP55) ensures safe and reliable use by customers.

Delta inverter:

  • High energy-saving machine efficiency
  • Efficient input and output power factor
  • Highly flexible expansion method
  • Low overall investment and maintenance costs

High shear homogenization:

  • High uniformity, good polishing, energy saving, stable operation
  • Speed of fast homogenizing stirrer:0-3500r/min (frequency conversion speed regulation)

Mixing part (Material: SUS316, GMP standard):

  • Speed: slow wall scraping stirrer speed: 0-63r/min (frequency conversion speed regulation)
  • Siemens motor + reducer provide strong and stable power for mixer, panasonic brand frequency inverter, PTFE material scrape blade.

Application of the Emulsifying Homogenizer Equipment

Emulsifying Homogenizer Cosmetic Making Machine Mixer Making Machine 2
