China Cosmetic Making Machine manufacturer

Stainless Steel Vacuum Mixer Homogenizer Machine High Performance Rapid Speed

Product Details:
Place of Origin: China
Brand Name: Qihang
Certification: CE
Model Number: SE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 5645$-32121$
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 45SETS/YEAR

Detail Information

Material: Stainless Steel Keyword: Pipeline Highshear Dispersing Emulsifier
Product Type: Cosmetic Voltage: 220V/380V
Mixer Type: Homogenizer Mixer Flow Range: 0-25t/h
High Light:

vacuum homogenizer cream mixer


high speed homogenizer

Product Description



Stainless Steel Vacuum Mixer Homogenizer Machine High Performance Rapid Speed


Dispersing Emulsifier introduction:

The high-shear dispersing emulsifier is to distribute one phase or more to another continuous phase in a highly-efficient, rapid and even way. Generally, the phases are mutually indissoluble. The materials will be processed in the narrow space between stator and rotor by high tangential speed and strong energy of motion respectively produced by fast-turning rotor and high frequency mechanical effect. By the operation of intensive shearing, centrifugal extruding, liquid layer attrition, impacting and breaking, and even turbulence, the materials of mutually indissoluble solid phase, liquid phase and gas phase will be refined, dispersed and emulsified instantly with the help of mature technology and proper amount of additive. After high frequency reciprocating circulation, products of stable quality are achieved.


Technical parameter


Main pot Water pot Oil pot Main pot power (KW)

Water oil pot

(powerx 2)kw
Hydraulic system (kw) Vacuum pump power (kw)
Volume(L) Wall scraping Homogenizer
5L 5L _ _ 0.18 1.1 _ 0.75 0.55
10L 10L 8 5 0.18 1.1 0.18 0.75 0.75
20L 20L 18 10 0.37 1.5 0.18 0.75 0.75
50L 50L 40 25 0.75 4-7.5 0.75 1.5 1.5
100L 100L 80 50 1.5 4-7.5 1.1 1.5 1.5
200L 200L 170 100 2.2 7.5-11 1.5 1.5 2.2
300L 300L 250 150 2.2 7.5-11 1.5 1.5 2.2
500L 500L 420 250 4 11 2.2 1.5 2.2
1000L 1000L 820 500 5.5 15 2.2 2.2 3

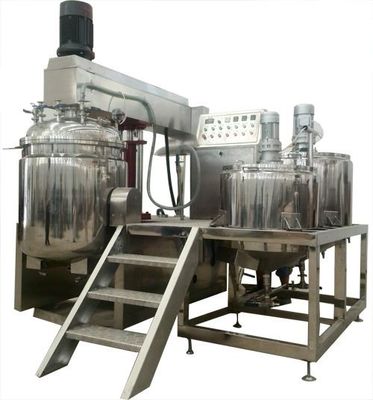

Stainless Steel Vacuum Mixer Homogenizer Machine High Performance Rapid Speed 0

WhatsAPP/Wechat:+8615626014514 Emily Chen

Product Application:

high quality 50L/100L /200L/300L/500L vacuum emulsifying cream homogenizer mainly refers to the material in a vacuum state, using a high shear homogenizer to quickly and uniformly distribute one phase or multiple phases in at least one other continuous phase (aqueous phase, oil phase, powder, etc.) The strong kinetic energy makes the material in the gap between the stator and the rotor, and it can withstand hundreds of thousands of times of high-speed shearing, centrifugal crushing and impact tearing every minute, and evenly disperse the emulsification instantaneously. After high-frequency reciprocation, finally A high quality product with no bubbles and fineness is obtained.

Main components of the vacuum emulsifying cream homogenizer:
◆Hydraulic lifting system (one button lift, one button down)
◆Heating thermostat system (steam heating)
◆ Slow mixing function (frame type scraping bottom scraping)
◆Homogeneous emulsification function (high speed shear homogenizing head)
◆Vacuum system (vacuum degree up to -0.095MPA)

Performance and characteristics of vacuum emulsifying cream homogenizer:
◆Homogeneous mode: bottom homogenizing
◆The stirring method is: single way mixing
◆ Stirring and homogenization adopt imported frequency converter to meet the requirements of different production processes
◆Homogeneous structure of German technology, the speed can be customized, the highest cutting fineness can reach 2um-5um
◆ Vacuum defoaming to make the material meet the sterility requirements, vacuum suction (water, oil, powder) can be used.
◆The main pot lid can be lifted and lowered, easy to clean, and the pot body can be dumped and discharged.
◆Three-layer stainless steel structure of the pot body, mirror polished, fully in line with GMP requirements

Safety protection system of vacuum emulsifying cream homogenizer:
◆There is no vacuum to lift the lid.
◆The lid cannot be lifted when the mixture is opened.
◆The stirring cannot be started when the lid is raised or the lid is not covered.
◆The dump does not reset and the lid cannot rise and fall.
◆The lid does not rise to the highest point and cannot be dumped.
◆ Stirring, homogenizing overload, or automatic shutdown of grid overvoltage.
◆The main pot cooling water is automatically drained when the interlayer pressure exceeds the set pressure.
◆ There will be a buzzer alarm when the main pot beam rises and falls.
◆The electronic control system is equipped with an emergency stop button to prevent immediate stop in case of emergency.
◆ Safety signs (Chinese and English) are attached to the equipment rack and electrical box and the eye-catching operation


Stainless Steel Vacuum Mixer Homogenizer Machine High Performance Rapid Speed 1

Qihang according to wishes designed to meet both the technical requirements and investment plan to match the best solution. And relying on their own understanding of the technology industry and the cosmetics industry professional self-control team, committed to the professional digital solutions to provide the best quality customer service.



Manage ltem: vacuum homogenizing emulsifiers, high shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.
