Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Qihang |
Certification: | CE |
Model Number: | WSS |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | Negotiation |
Packaging Details: | According to product |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C, D/P, T/T, Western Union |
Detail Information |
|||
Applicable Industry: | Cosmetic Industry | Product Name: | Cosmetic Filling Machine |
---|---|---|---|
Key Selling Points: | High Productivity | Tube Diameter: | 10-50mm |
Driven Type: | Electric | Filling Volume: | 20-150ml/tube |
High Light: | cosmetic tube filling machine,automatic tube filling machine |
Product Description

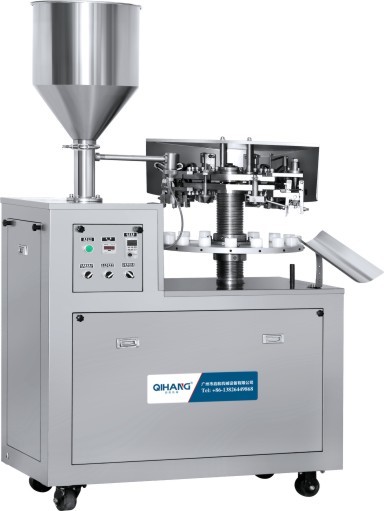

High Productivity Aluminium Tube Filling And Sealing Machine For Cosmetic Industry
Introduction and function:
This machine applies the transmission principle. It uses the slot wheel dividing system to drive the turntable to do intermittent movement. The machine has 8 sits. It can automatically put the tube inside the tube seat, fill the material into the tubes, heat inside of the tubes, seal the tubes, press the codes, and cut the tails and exit the finished tubes. Filling measurement is accurate. Heating time is stable and adjustable. Sealed tail looks pretty and neat and the trimming is very even. This machine has stable performance and work without any noise and pollution. The part which is contact with the filling material is made of high-quality stainless steels. The parts which need to clean are made of quick-change device that is removable and convenient for washing. If some materials need heating insulation, the heating thermostat device can be added outside of the feeding barrel.
Model |
WSS-60 |
WSS-100 |
WSS-120 |
Tube Diameter |
Φ5mm-Φ60mm |
Φ12.5mm-Φ50mm |
Φ12mm-Φ50mm |
Tube Length |
50-300mm (customizable) |
210mm(customizable) |
50-240mm(customizable) |
Filling Volume |
5-250ml/piece (Adjustable) |
5-250ml/piece (Adjustable) |
5-250ml/piece (Adjustable) |
Filling Accuracy |
≤±1% |
≤±1% |
≤±1% |
Product Capacity |
30-50/min |
80/min (max) |
80-120/min |
Air Supply |
0.55-0.65Mpa |
0.5-0.6Mpa |
0.5-0.6Mpa |
Motor Power |
1.2kw (380V/220V 50Hz) |
1.5kw (380V/220V 50Hz) |
2.2kw(380V/220V 50Hz) |
Heat Sealing Power |
5kw |
5kw |
5kw |
Overall Dimension(mm) |
1600*1640*1900 |
2500*1200*2400 |
2950*1310*2300 |
Machine Weight (kg) |
1100 |
1200 |
3000 |
Main functions:
1. automatic tubes feeding 2. automatic filling ( no tube no filling) 3. automatic heating 4. automatic sealing and pressing the batch, dates 5. automatic tail trimming 6. automatic exiting
Characteristics:
1. the material contact parts are made of stainless steel SUS304; 2. the connection of the various is used the quick-change device, which is easy to disassemble and clean; 3. high-quality pneumatic components.
Principles and Characteristics of High Productivity Aluminium Tube Filling And Sealing Machine
This filling and sealing machine has simple structure, reasonable and easy to understand, and high accuracy. By the magnetic reed switch can control cylinder stroke, you can adjust the amount of filling. Germany FESTO and Taiwan AirTac pneumatic components. Filling volume and filling speed of filling and sealing machine can be arbitrarily adjusted, filling with high accuracy. Filling, focusing instead on use of anti-drip, anti-filling drawing and lifting devices. By automatic control system, tube filling and sealing machine can complete that supplying for pipe, washing the tube, mark recognition, filling, sealing, code folding,the whole process of production, etc. To complete the supply pipe, pipe washing by pneumatic method, accurate and reliable action. Intelligent temperature control and cooling system, make the operation simple, convenient adjustment. with a number of memory and equiped with a quantitative shutdown device. Automatic sealing, through different Manipulators on the same machine, won the two, three fold, folding saddle type folding and other sealing. Materials in contact part of our tube filling and sealing machine adopts 316L stainless steel manufacturing, clean, sanitary, fully meet the requirement of pharmaceutical production GMP.
