China Cosmetic Making Machine manufacturer

100L Hydraulic Lifting Homogeneous Vacuum Mixing Pot 1.5 - 22kw High Pressure Homogenizer

Product Details:
Place of Origin: China
Brand Name: QIHANG
Certification: CE
Model Number: QHD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 13421-25342$
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union

Detail Information

Keyword: Pipeline Highshear Dispersing Emulsifier Voltage: 220V/380V
Mixer Type: Homogenizer Product Type: Cosmetic
Flow Range: 0-100L/h Warranty: 1 YEAR
Power (kW): 4 Usage: Mixing Paste Proucts
Application Scope: High Viscosity Product Dimension(L*W*H): 1800mm*1600mm*1850mm
High Light:

laboratory homogenizer mixer

,

high speed homogenizer

Product Description

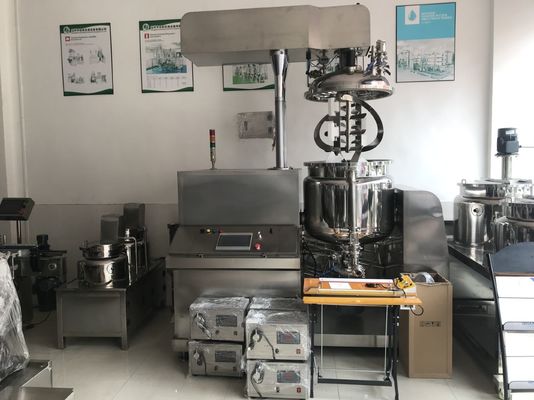

100L hydraulic lifting Homogeneous Vacuum mixing pot

MAIN POTTECHNICAL INFORMATION



Description



100L hydraulic lifting Homogeneous Vacuum mixing pot

Pot capacity(L) Main pot 100L





Motor (KW)

Blending power(kw) 2.2kw*2
Blending rotation speed(r/min) 0-63
Vacuum pump(kw) 2.2

Homogenizing

machine(kw)

4
Homogenizing rotation speed(r/min) 0-3200
Hydraulic motor(kw) 2.2
Electric heating 9kw*2
Size 2000*800*2830mm
Machine weight (KG) 1200
Power supply data 30.8kw
Control power 220/380v 50/60Hz



ELECTRIC CONTROL SYSTEM
No. Item. Configuration and parameter Remark
1 Shell material

Stainless steel: SUS304

Thickness: 2mm


2 Control way Button control
MACHINE COMBINATION
1 Main pot Equipped with hopper and filter
2 Vacuum pump Water cycle
CONFIGURATIONS
1 Inverter Mitsubishi/Delta
2 Motor SIEMENS/ABB
3 Main electric components Schneider/DELIXI
4 Tem. control Omron/Chinese brand
The complete set of equipment: the upper pipe piece up to the national pharmaceutical standards (GMP)



  • The most common emulsions in the cosmetic industry (about 80 percent) are the ones in which oil is dispersed in water (o/w). They are high water content and, therefore, low in cost. These emulsions are favored for their stability and flexibility, as well as their non-greasy, non-oily feel. On the other hand, w/o systems offer longer lasting emolliency, wash-off resistance, and barrier protection. They spread more easily on skin, and often leave a lubricious, rich or oily feel, favored by mature clients and consumers with dry, barrier-compromised skin. These formulas tend to be less cost effective, as oils are always more costly than water and these types of emulsions are generally more difficult to produce.

  • The high-pressure homogenizer mainly relies on three repeatedly moving plungers to generate a great pressure. The first and second homogenizing valves are homogenized and emulsified, and the materials are discharged from the discharge port to make the materials more delicate and not stratified.

  • The main functions are: improve the uniformity and stability of the product; increase the shelf life; reduce the reaction time to save a lot of catalysts or additives; change the consistency of the product to improve the taste and color of the product



 How do we know our emulsion is sufficiently stable?

  • An emulsion could separate at any time. Tell-tale signs may appear during or soon after making the lotion or, these signs may appear months later, perhaps when a customer takes the product on vacation to a warmer climate:

  • Creaming occurs when the oil phase migrates to form a layer at the top of the emulsion
  • Flocculation is when the oil phase droplets cluster together but they do not join into a larger droplet, giving the appearance of a “fluffy cloud”
  • Coalescence is similar to flocculation but the droplets merge with each other to form a larger droplet
  • Phase separation is the most obvious sign of emulsion instability and involves the collision and coalescence of the oil phase droplets ultimately resulting in the visible appearance of separate oil and water phases.

100L Hydraulic Lifting Homogeneous Vacuum Mixing Pot 1.5 - 22kw High Pressure Homogenizer 0



100L Hydraulic Lifting Homogeneous Vacuum Mixing Pot 1.5 - 22kw High Pressure Homogenizer 1



100L Hydraulic Lifting Homogeneous Vacuum Mixing Pot 1.5 - 22kw High Pressure Homogenizer 2
