Vacuum Lower Homogenizer Emulsifying Machine 50 - 1000L Working Volume

Product Details:
Place of Origin: China
Brand Name: Qihang
Certification: CE
Model Number: QHE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 6734$-18273$
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 67 SETS/YEAR

Detail Information

Product Name: Lower Homogenizer Emulsifying Machine Feature: Vacuum
Working Volume: 50-1000L Heating Method: Electric Or Steam Heating
Apply For: Production Of Ointment And Cream Products Specification: QHE
High Light:

vacuum emulsifying mixer machine

,

vacuum emulsifying mixer

Product Description

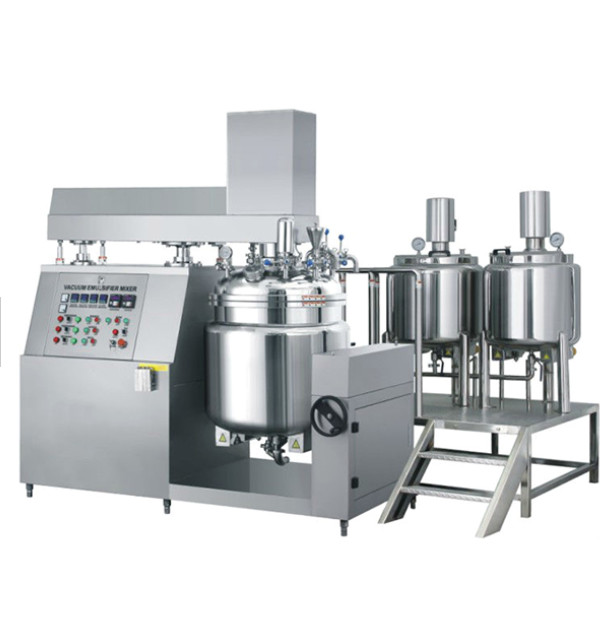

Vacuum Lower Homogenizer Emulsifying Machine 50 - 1000L Working Volume

QHE-VACUUM HOMOGENIZATION EMULSIFYING MACHINE

(LOWER HOMOGENIZER)



Vacuum Emulsifying Mixer Capacity Tilting Vacuum Homogenizing Emulsify 316 Sight Glass Light Gel Making Machine



Product Description:

The vacuum emulsifiers produced by our company include many varieties. The homogenizing systems include upper homogenization, lower homogenization, internal and external circulating homogenization.
The mixing systems include single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single-cylinder lifting and double-cylinder lifting. Various high quality products can be customized according to customers' requirements.



Specification of the Homogenizer Emulsifying:

Main Pot

1.1

Working Volume

Max Capacity: 50L, Mim Capacity: 17L

Loading Coefficient 0.8

1.2

Material of the Tank

Inner Layer: SUS 316L, 4MM Ra <0.8um



Jacket: 304, 3MM

Insulation Media: Polyurethane

Outer Layer: SUS 304, 3mm

SGS certificated

1.3

All contact part of
material

SUS 316L, Ra <0.8um



1.4

Agitator Speed

0.75KW, Speed 0-63rpm adjustable by inverter

ABB motor,
Delta Converter

1.5

Homogeneous Way

Top Homogenizer

SUS316L



Homogeneous
coefficient

2.2KW, speed 0-3600R/M

ABB motor,
Delta Converter

Processing

Rotor and Stator in Wire cutting, assembled after polishing

Balance process axle

1.6

Cover

Material filter, Vacuum Pressure meter, Vacuum Exhaust Valve, Vacuum Port, sight glass light, Vision window, inlet, sight glass with wiper and bulb, rotary CIP heads, hopper;Vacuum water pump unit;

Required GMP Type



1.7

Basic Structure

Three layers, Helxi Stirrer, Top homogenizing;water cooling - heating coat, Insulation coat, Bidirection, Bottom product
discharge

No Dead space,
Sanitory Valve



1.8

Vacuum Pump Type

Water ring type, 0.25KW,



1.9

Heating

9 KW Electrical Heating



1.91

Vacuum degree

-0.09--0.02Mpa



Vacuum break

Via GMP filter



1.92

sealing

Adopting burgmann Machinery Seal, Japan NSK Rolling Bearing;



1.93

polishing

In&outside hygiene grades, conforming GMP standard

S320U



  • The triple mixing adopts the imported frequency converter for speed adjustment, which can meet different technological demands.

  • The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 4,200rpm and the highest shearing fineness can reach 0.2-5μm.

  • The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted, and especially for the powder materials, vacuum sucking can avoid dust.

  • The emulsifying pot lid can adopt lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.

  • The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.

  • According to technological requirements, the tank body can heat or cool the materials. The heating modes mainly include steam heating or electric heating.

  • To ensure the control of the whole machine is more stable, the electric appliances adopt imported configurations, so as to fully meet the international standards.



Project Cases:

Manage ltem: vacuum homogenizing emulsifiers, high shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.



Details of the Homogenizer Emulsifying:

Vacuum Lower Homogenizer Emulsifying Machine 50 - 1000L Working Volume 0

  • Frame mixer

Dead-end stirring with sufficient mixing area and good stirring effect.

  • High shear homogenizer

Fast agitator: teethed type rotor and stater assembly installed on the vessel. Bottom or on the top as optional items, several interchangeable configurations ate available.

  • Hydraulic lifting system

Used for material discharge and cleaning. It is more convenient and safer for the operator.

  • Pharmaceutical grade material

High quality SUS304 & 316 material, internal and external mirror polish of homogenized tank.



Application of the Homogenizer Emulsifying:

It is widly used for daily necessities, food, drink, chemical products, medince.

Vacuum Lower Homogenizer Emulsifying Machine 50 - 1000L Working Volume 1





FAQ :

1. Q: Machine customization is accepted or not?

A: We are machine manufacturer, Customization is a quality testing principle. so Customization is accepted to us.

2. Q: Are you trading company or factory?

A: we are factory not trading company. We have the machine production license and exporting license.

3. Q: How we could know you are a trusted company?

A: We welcome every customer come to our factory to see every machine production process. We could show any license for checking in china government and any exporting machine data from government for your checking.



Vacuum Lower Homogenizer Emulsifying Machine 50 - 1000L Working Volume 2
