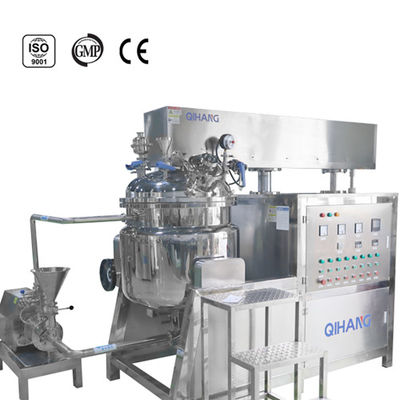

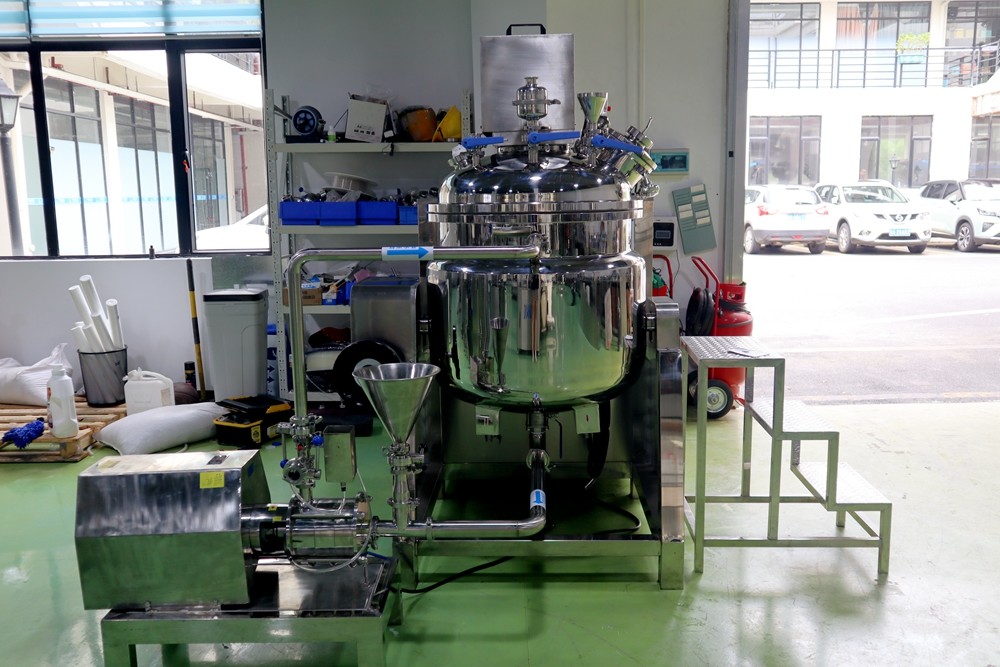

Pharmaceutical Toothpaste Homogenizing Machine Ointment Cosmetic Cream Mixer

Completed set small cream vacuum emulsifying mixer series machine is designed for small and medium scale cosmetic factory and pharmaceutical factory. It is economical type mixer. The feature:homogenizer on the bottom,more powerful,very suitable for high viscosity materials.Hydraulic system, tilt system. All contact material part adopt SUS316L, polishing reach 300mesh. The machine unit is featured by simple operation, stable performance. good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.

Specification of the Fixed Type Vacuum Homogenizer Emulsifier

Model

Effective

Emulsifying Motor

Agitator

Vacuum pump

electirc Heating power/kw

Steam heating pressure /Mpa

Capcity/L

KW

RPM

KW

RPM

KW

Limit Vacuum

QHE-5L

5

0.55

0-3600

0.4

0-65

0.37

-0.1

6

0.2

QHE-10L

10

1.1

0-3600

0.55

0-65

0.37

-0.1

6

0.2

QHE-20L

20

1.5

0-3600

0.55

0-65

0.37

-0.1

9

0.2

QHE-50L

50

3

0-3600

0.75

0-65

0.75

-0.1

12

0.2

QHE-100L

100

4

0-3600

1.5

0-65

1.5

-0.1

24

0.2

QHE-200L

200

5.5

0-3600

1.5

0-65

2.2

-0.1

28

0.2

QHE-300L

300

7.5

0-3600

3

0-65

2.2

-0.1

32

0.2

QHE-500L

500

11

0-3600

4

0-65

4

-0.1

50

0.2

QHE-1000L

1000

15

0-3600

5.5

0-65

4

-0.1

54

0.2

QHE-2000L

2000

18.5

0-3600

7.5

0-65

5.5

-0.1

recommend steam hetaing

0.2

QHE-5000L

5000

22.5

0-3600

15

0-65

7.5

-0.1

0.2

The parameters for reference ONLY, all the machines can be customized accordingly.

• Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect.
• Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall.
• Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully.
• Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut, rubbing, centrifugal to make sure exquisite and slick cream, boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
