Multifunctional Body Cream Cosmetic Production Line Emulsifier Machine

Product Details:
Place of Origin: China
Brand Name: Qihang
Certification: CE
Model Number: ER
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union

Detail Information

Product Name: Cosmetic Making Machine Mixer Type: Homogenizer
Automatic Grade: Automatic Product Type: Cosmetic
Voltage: 220V/380V 50HZ Mixing Speed: 0-63 R/min Or Custom
Advantage: Defoaming And Longer Shelf Life Condition: New
High Light:

Multifunctional Body Cream Cosmetic Production Line


63 r/min Cosmetic Production Line

Product Description


Professional Body Cream Production Line Multifunctional Daily Cosmetic Product Making

Equipment Emulsifier Machine​


Multifunctional Body Cream Cosmetic Production Line Emulsifier Machine 0


Product Description of the Emulsifier Machine​

After the materials are in the water boiler and oil boiler to heating & mixing then draw into the emulsification boiler by the vacuum pump, through the middle(fixed) stirrer & teflon Scrapers residues stirrer in the emulsification boiler that sweep the residues on the wall of the boiler, so make the produces of wiped off become the new interface constantly, then the blade cut off ,compress,fold round ,mixing and running to the homogenizer, according to the high shear wheel and the cutting case to strong cutting off,impact,Without rules mobility, etc. the material by cutting in the cut interstices and turn to a particle of 200nm-2um prompt, because the emulsification boiler is under vacuum state, the bubble that the supplies produce in the course of mixing is taken away in time.

Product Name Vacuum Emulsifying Mixer
Working volume 100L
Pressure -0.1Mpa in pot 0.1Mpa in jacket
Temperature ≤100℃
Power supply 380V/50Hz
Material Stainless steel 304/316

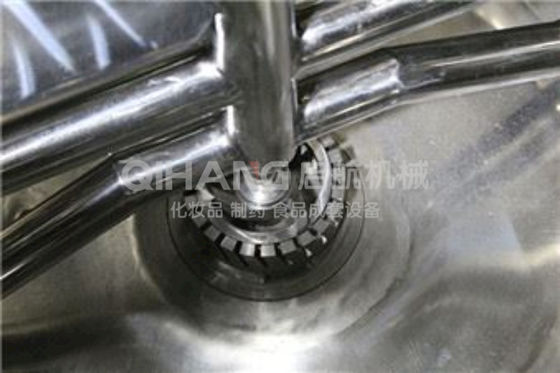

Multifunctional Body Cream Cosmetic Production Line Emulsifier Machine 1


Feature of the Emulsifier Machine​

1. The material of contacted part is SUS316L stainless steel, inside and outside of the equipment are with mirror polishing and get to GMP standard.
2. All pipelines and parameter are controlled automaticlly. And the electric appliance which are imported from foreign country ,like Siemens ,Schneider and so on.
3. Emulsifying tank is with CIP cleaning system,it make the cleaning to be easy and effective.
4. Emulsifying tank adopts tertiary agitating system, and during the emulsification ,the whole processing is under a vacuum environment, so it not only can eliminate spume which created in the emulsification processing ,but also can avoid the unnecessary pollution.
5. The homogenizer adopts the most advanced technology,it can get a ideal emulsifying effect.The speed of high emulsification is 0-3500r/min, and the speed of low mixing is 0-65r/min.

Multifunctional Body Cream Cosmetic Production Line Emulsifier Machine 2
Pre-Sales Service

1. One set of consumable accessories will be provided with the machine.
2. Before delivery, we will adjust the machine to fit for your product.


After-Sales Service

1. Any question, you can mail/call us at any time. And our most experienced engineers is assigned to give consulting service, and always available for dispatching abroad.
2. All spare parts are always available for delivery.


Application of the ​​Emulsifier Machine​

Multifunctional Body Cream Cosmetic Production Line Emulsifier Machine 3
