Face Cream Body Lotion Ointment Gel Vacuum Homogenizing Emulsifying Mixing Machine

Vacuum homogenizing emulsifier is mainly applied in such industries as daily chemical care products, biopharmaceutical, food, paint and ink, nanometer materials, petrochemical, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilizer, plastic & rubber, electrics and electronics, fine chemical, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.

Specification of the Fixed Type Vacuum Homogenizer Emulsifier

Model

Capacity(L)

Mixing power(kw)

Mixing speed(r/min)

Homogenizing power(kw)

Homogenizing speed(r/min)

Heating method

QHE-20

20

0.37

0-63

0.75

0-3000

Steam heating or electric heating(optional)

QHE-50

50

0.37

0-63

2.2

0-3000

QHE-100

100

1.5

0-63

3

0-3000

QHE-150

150

1.5

0-63

3

0-3000

QHE-200

200

1.5

0-63

4

0-3000

QHE-350

350

2.2

0-63

4

0-3000

QHE-500

500

2.2

0-63

5.5

0-3000

QHE-1000

1000

5.5

0-63

9

0-3000

QHE-2000

2000

5.5

0-63

11

0-3000

Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shallprevail.

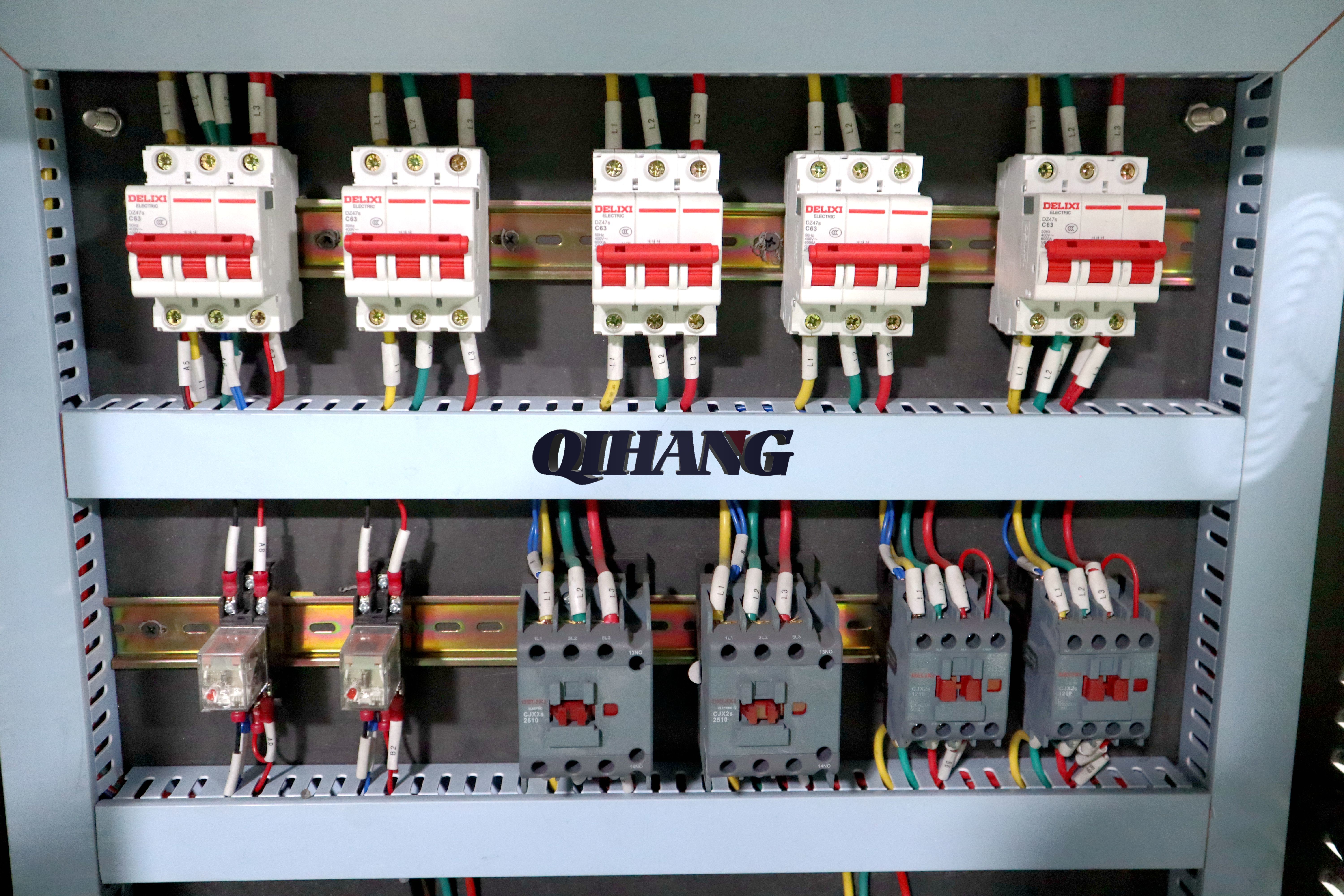

• Stainless Steel Mixing Tank has mixing agitator, bottom homogenizer, stainless steel jacket tank shell, motor, electric control box, operation platform, staircase, etc.
• The scraper type agitator mixing adopts the frequency converter for speed adjustment, so that high quality products of different processes according to customer requirements.
• The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES, AESA, LSA, etc. during the liquid detergent production process so as to save energy consumption and shorten production period. High Shear Homoegnizer adopts German Technology, 0~3500rpm variable speed, and maximum speed can reach to 4500rpm, the shear degree is about 0.2~5um.
• The tank body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing or matte finish, which fully conforms to GMP requirements.​
