China Cosmetic Making Machine manufacturer

63 R/min Cosmetic Cream Manufacturing Equipment Emulsification Machine

Product Details:
Place of Origin: CHINA
Brand Name: Qihang
Certification: CE.GMP
Model Number: QHE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: AS YOU LIKE
Delivery Time: 3-4WEEKS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Item: Vacuum Emulsifying Machine Mixer Type: Homogenizer
Control: Button/PLC Control Material: SUS304/316
Product Type: Cosmetic Voltage: 220V/380V 50HZ
Key Selling Points: High Productivity Mixing Speed: 0-63 R/min Or Custom
High Light:

63 R/min Cosmetic Cream Manufacturing Equipment

,

SUS304 Cosmetic Cream Manufacturing Equipment

,

PLC Cosmetic Cream Manufacturing Equipment

Product Description



63 R/min Cosmetic Cream Manufacturing Equipment Emulsification Machine



Vacuum Emulsifying Mixer Application:

1. Daily Chemical & Cosmetics Industry:
such as baby cream, skin cream face cream, shaving cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream,
face cleanser, moisture cream, detergent, shampoo etc;
2. Food Industry:
Sauce, cheese, oral, nutrition, infant food, chocolate, sugar and so on., tomato paste etc;
3. Pharmacy Industry:
Latex, emulsions, salves (ointments), oral syrup, liquid. etc;
4. Chemical Industry:
Latex, sauce, saponification products, paints, coatings, resins, adhesives, lubricants and the like.



63 R/min Cosmetic Cream Manufacturing Equipment Emulsification Machine Specification:

Description   Details
Name Vacuum Emulsifier Mixer





Advantage

Make production under vacuum → De-foaming
Vacuum to suck raw material → Anti-bacteria
Lid with hydraulic lifting system→ Easy cleaning + Tilting discharge



Applications

1. Food: mayonnaise, tomato paste, cake gel, honey, chocolate etc.
2. Medical: ultrasound gel, injection, syrup, etc.
3. Cosmetic: cream, body lotion, shaving foam, toothpaste, etc.

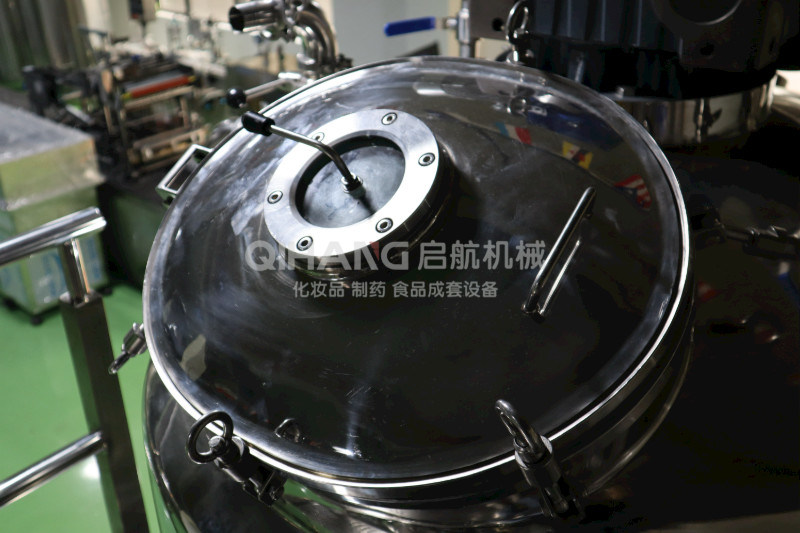

63 R/min Cosmetic Cream Manufacturing Equipment Emulsification Machine 0

Vacuum Emulsifying Mixer Feature:

The main pot is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.
The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.
The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.
The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.

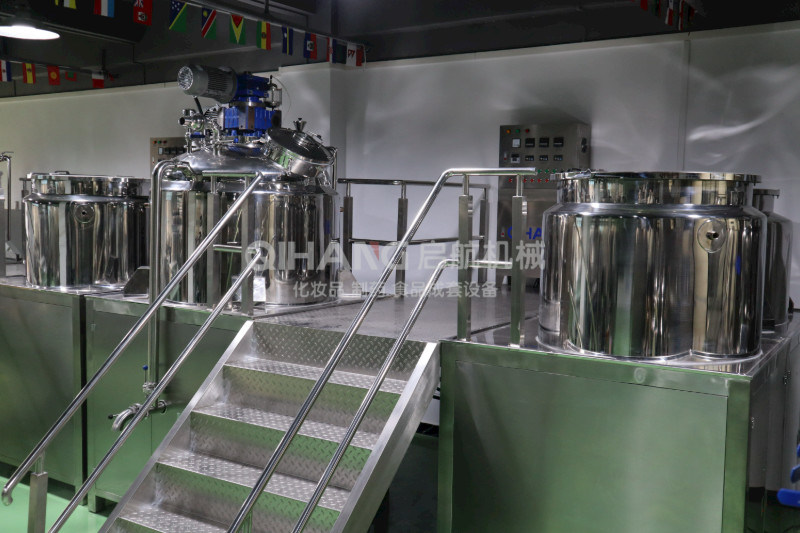

63 R/min Cosmetic Cream Manufacturing Equipment Emulsification Machine 1



Project Cases:

Manage ltem: vacuum homogenizing emulsifiers, high shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.

Cosmetic / Detergent Making Machine , 0 - 63 R / Min Vacuum Emulsifying Mixer
