China Cosmetic Making Machine manufacturer

Automatic Control Perfume Making Machine 1000ml Filling Volume

Product Details:
Place of Origin: China
Brand Name: Qihang
Certification: CE
Model Number: QEJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $950.00 - $1,800.00
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union

Detail Information

Product Name: Perfume Filling Machine Condition: New
Automatic Grade: Automatic Voltage: 220V 50Hz
Filling Volume: 5-1000ml Weight: 76kg
Application: Beverage, Chemical, Food, Medical, Cosmetics, Liquid Filling Speed: 10-50 Bottles/min
Filling Accuracy: ±0.5% Certification: CE ISO
High Light:

1000ml Filling Perfume Making Machine


10 Bottles / Min Perfume Making Machine

Product Description

Automatic Control Perfume Making Machine 5 - 1000ml Filling Volume For Filling




Any liquid can choose this filling machine Our company has many types of filling machines 16 head filling machine, faster speed, high output.


Simple information of Perfume Filling Machine:

The four-head perfume vacuum filling machine is redesigned on the basis of referring to similar foreign products, and some additional functions have been added. Make the product more simple and convenient in the use of operation, accuracy error, loading adjustment, equipment cleaning, maintenance and so on. The all-pneumatic filling machine designed on this basis uses pneumatic components to replace the electrical control circuit, so it is particularly suitable for use in environments with explosion-proof requirements. Applicable to: perfume, skin care water, toner, gel water, fruit juice drinks, alcoholic beverages, mineral water, purified water, hair care products, skin care products, cosmetics, cleaning products, detergents, oral liquids, syrups.


Brand Qihang Model QH
Power 0.55KW/0.75KW Dimensions can be customized
Number of filling heads 4 Filling volume 5-1000ml
Applicable Bottle height ≤250mm
Bottle diameter ≤Φ90mm
Bottle mouth diameter ≥5mm
Production capacity 10-30(bot/min) Filling accuracy ±1%
Packaging type Bottle Working principle Negative pressure
Material type Liquid Degree of automation Semi-automatic

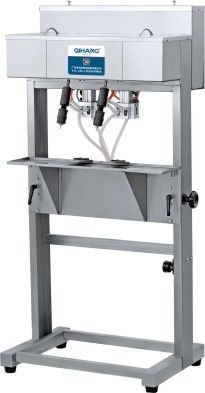

Manual Vacuum Perfume Filling Machine
> Volumetric Filling Heads- 2 or 4
> Filling capacity is control liquid levels
> Pure pneumatic machines meet the explosion-resistant requirements
> Auto-drainage system is equipped
> No strict requirement with the bottle shape and consistency
> Simple configuration and easy to operate and maintain
> Capability to handle a wide range of bottles


Picture detail

Automatic Control Perfume Making Machine 1000ml Filling Volume 0



Semi-automatic Vacumm Liquid Perfume Filling Machine for Smal Bottles
Operator only bottle card to ling head and en o pedal come can be different ling liquid products Fling adopt: continuous vacuum suction. The product pumped into the container, when the product to fill to the required level, redundant products will be returned by automatic drainage system inside the tank filling quantity is decided by the depth of the filling head into the container, therefore, no matter whether the bottle volume, canned liquid level will remain the same, Especially suitable for liquor, wine, soy sauce, vinegar, perfume and solution on the surface of the liquid filling requirements and so on, is your wiring or the Ideal choice for single use.


Automatic Control Perfume Making Machine 1000ml Filling Volume 1


Qihang according to wishes designed to meet both the technical requirements and investment plan to match the best solution. And relying on their own understanding of the technology industry and the cosmetics industry professional self-control team, committed to the professional digital solutions to provide the best quality customer service.



Manage ltem: vacuum homogenizing emulsifiers, high shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.

Automatic Control Perfume Making Machine 1000ml Filling Volume 2
