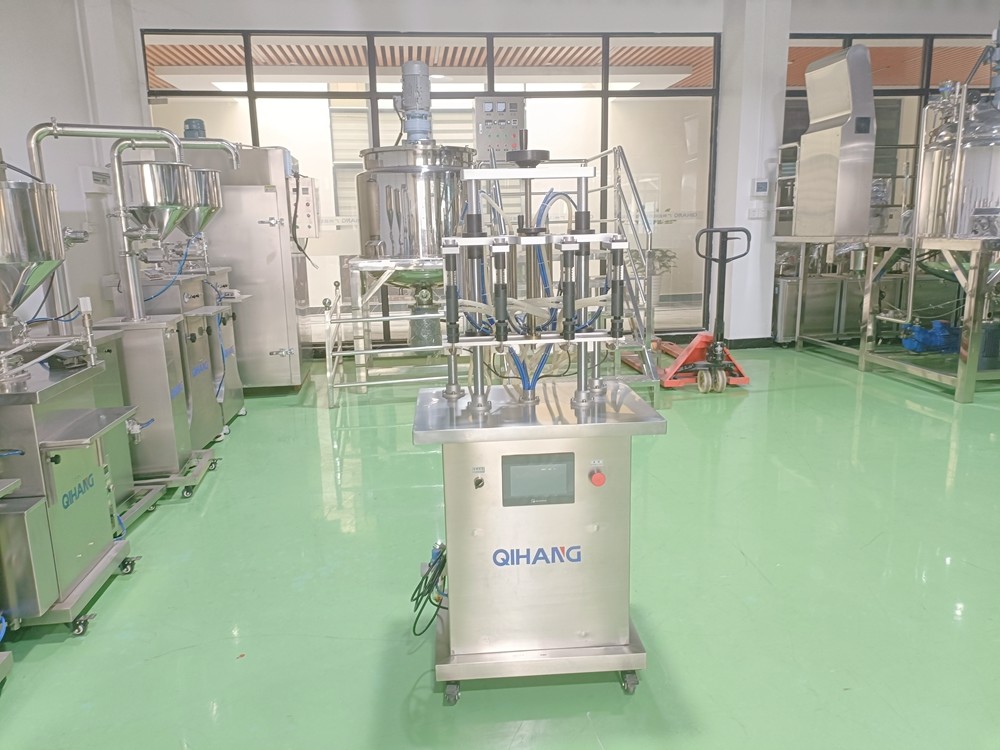

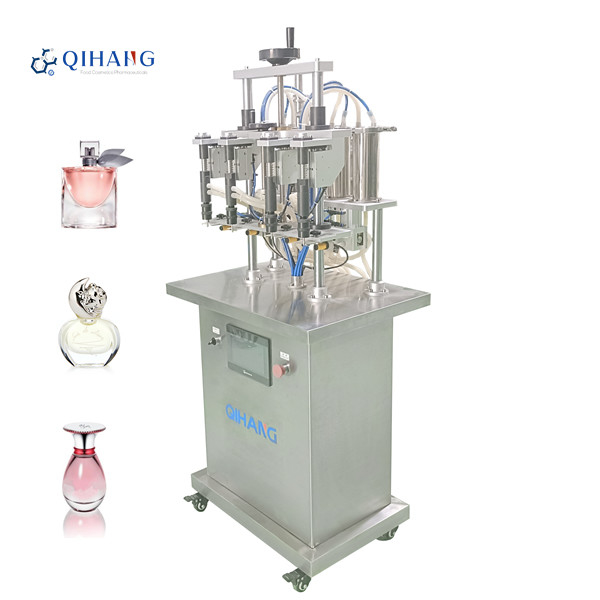

Pneumatic Cologne Perfume Vial Bottle Filling Machine Easy To Operate

model

refrig.

output

temp.

range

temp.

accuracy

pressure

(bar)

slot

vol.

pump

flow

dimension

(mm3)

ahj800a

800W

5-30

±0.1

1.2

90L

20L/MIN

360X530X640

qhj200a

1200W

5-30

±0.1

1.2

120L

20L/MIN

420X580X750

qhj1600a

1600W

5-30

±0.1

1.2

180L

20L/MIN

420X580X750

qhj2600a

2600W

5-30

±0.1

1.8

400L

30L/MIN

490X580X750

qhj3600a

3600W

5-30

±0.1

2.0

500L

30L/MIN

520X680X900

qhj5000a

5000W

5-30

±0.1

2.6

500L

50L/MIN

590X680X1000

Its principle is very simple. The action sequence is as follows:

Put the plastic bottle or glass bottle into the vibrator of unscrambler or turntable artificially, then bottles pass through the Conveyor, will be arranged one by one automatically and delivered on the conveyor into machine body.

When bottles enter the the mould of working table, they will be sensor-detected, no bottle no fill. After detecting, bottles go into filling device to do filling.

After being filled, turntable is rotating, the bottles enter into outer cap drop Device to do cappin.

At last, the finished bottles are feeding from the Conveyor by means of the Vial Poking Rod to carry out.

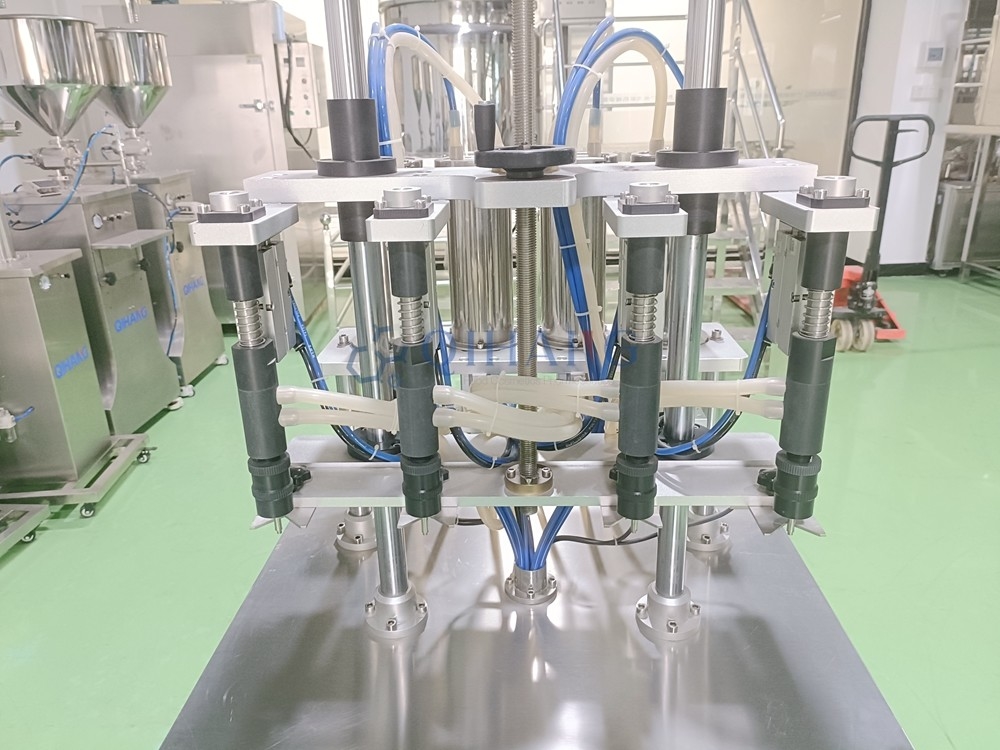

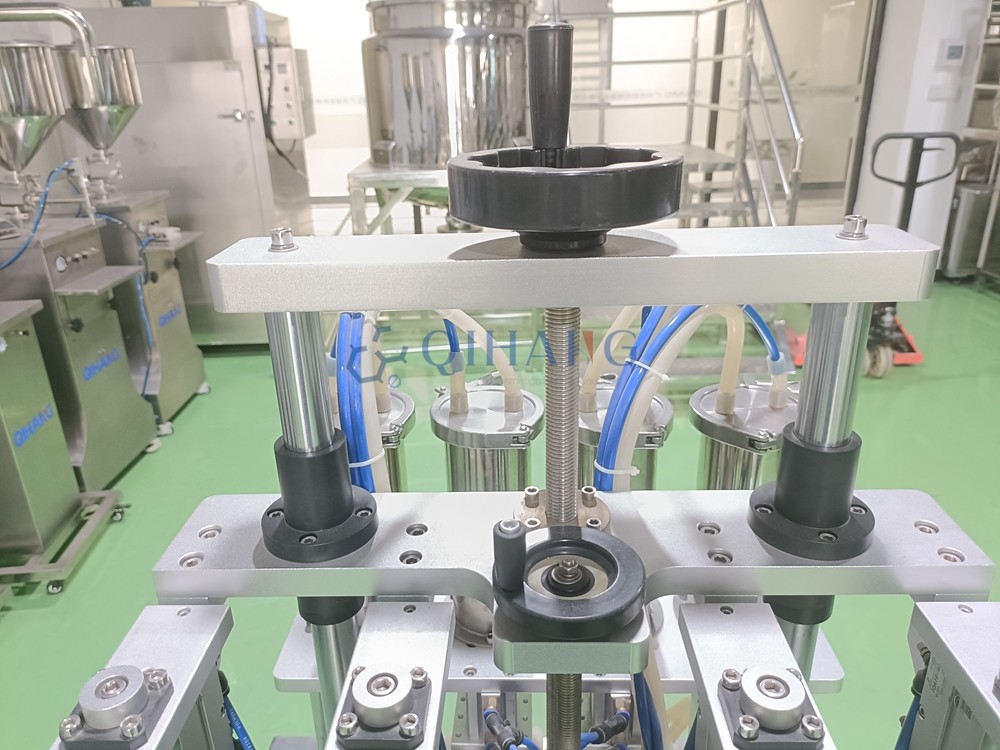

Four filling heads ensure the efficiency of the work. The filling is filled with the principle of vacuum. The filling valve is composed of a filling sleeve. There is a vacuum tube in the sleeve. The tube is used to lead the excess product back to the vacuum chamber to effectively prevent overflow. The filling volume is determined by the depth to which the filling head extends into the container. Therefore, the filling level will remain the same regardless of whether the bottle volume is the same. Ideal model for filling perfume, nail polish and other products. The vacuum filling machine fills the bottle when the pressure in the bottle is lower than the atmospheric pressure.
