|Place of Origin:||CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Packaging Details:||WOODEN CASE|
|Delivery Time:||3-4 WEEKS|
|Payment Terms:||L/C, Western Union, MoneyGram, T/T|
|Supply Ability:||67 SETS/YEAR|
|Packaging Type::||CANS, Bottles, Barrel, Pouch||Automatic Grade::||Automatic|
|Voltage::||220V/380V 50HZ||Brand Name::||QIHANG|
|Max Capacity::||1L:4500BPH||Filling Range::||50-5000ML|

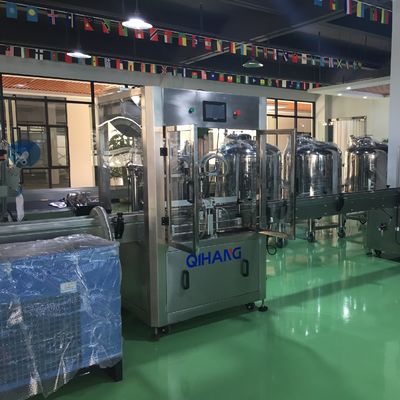

1000ml cosmetic tube filling machine,
sus304 cream tube filling machine
full automatic piston servo filling machine, avf4-1000 (60-1000ml) 304
1. Main machine includes: main machine for filling machine and 6 meters of 114mm wide standard conveyor.
2. Working mode: piston filling, automatic bottle feeding, automatic filling, and automatic filling system.
3. Production capacity: 500ml volumetric
production capacity: 30-50pcs/min
the viscosity of 10pa.s juice is the test standard.
Before delivery, the customer shall provide enough packaging materials for more than 10 minutes of operation for testing.

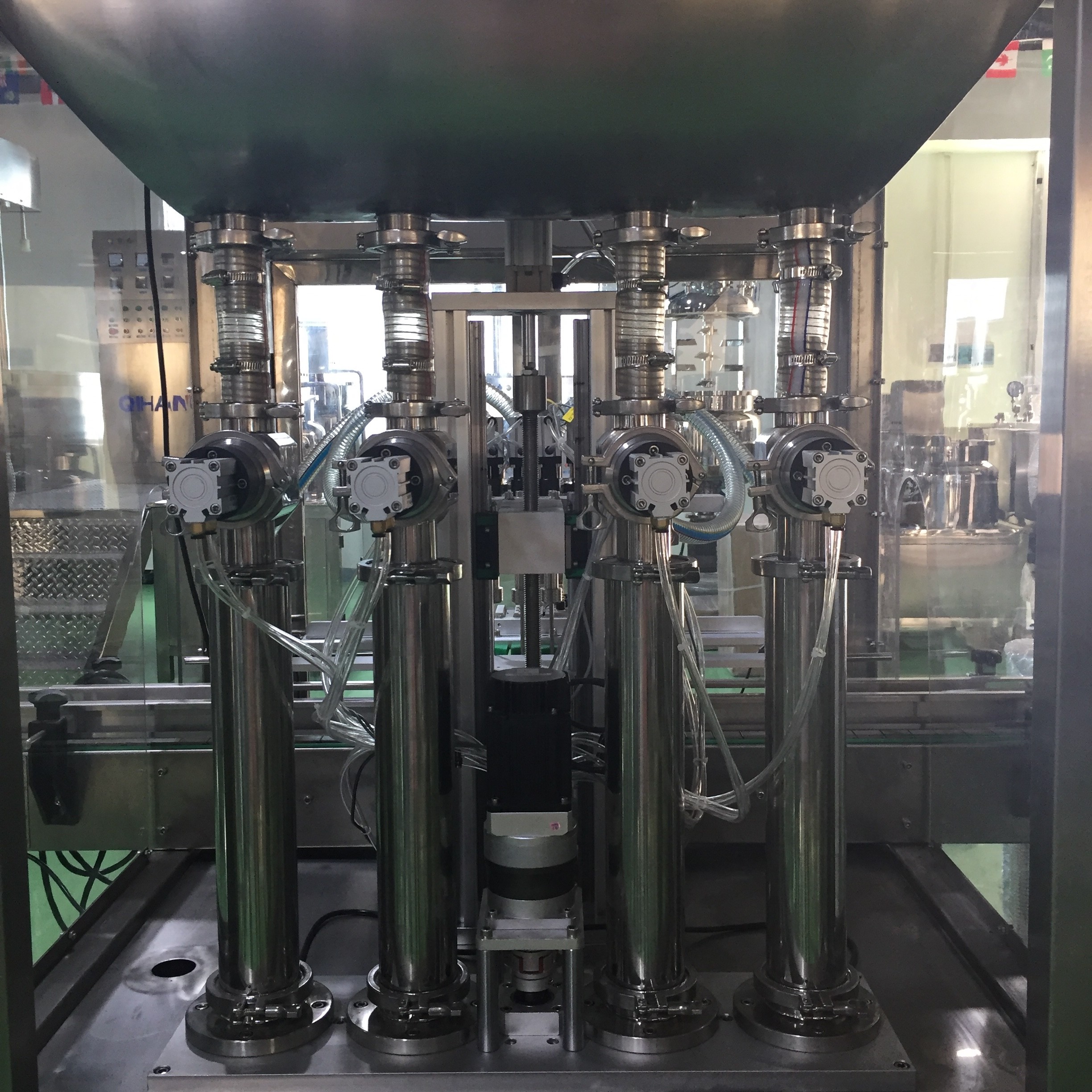

4, characteristics: the use of a separate bottle into the bottle back photoelectric, upper feeding and no one-way valve mechanical structure, servo motor driven piston cylinder to make its filling accuracy more accurate, more convenient to adjust the filling volume, to ensure the efficient and stable continuous production of the machine.
5. Convenience: the designed adjustment mechanism is as large as possible (including standard 114mm conveyor belt, touch screen adjustment, single-head fine-tuning device, etc.) to adapt to the rapid replacement of various bottle types.
6. Control: humanized touch interface is adopted to facilitate operation and maintenance by fully considering the ability of various qualified personnel to accept the machine. Guided mode module and fault inquiry module are added to the man-machine interface to facilitate operation and maintenance.
7, filling accuracy within ±1% (take water as an example, and the filling range exceeds half of the maximum filling range).
8, structure: beautiful appearance, reasonable structure, simple maintenance and assembly, no special tools
9. Warranty: all parts are guaranteed for one year from the date of arrival (except vulnerable parts).
10. Power supply: 220V 1.5kw 0.5-0.7mpa
11. Air source: after drying treatment, the working pressure is ≥6kg/cm2, and the air consumption varies with the output.
12. Weight: about 500kg
220V 1.5kw 0.5-0.7mpa
This is our newly developed filling machine . It has reached the international advanced level, partial has exceeded the similar product. It is abroad, also certified by the world famous chemical magnate. This is a inline piston filling machine for cream and liquid. It adopts PLC and touch screen control panel for control material. It is characterized by accurate measuring ,advanced structure, stable operating, low noise, large adjusting range, fast filling speed. It is also suitable for the filling of easy volatilization, easy bubbly liquid strong corrosive liquid for rubber, plastic,and high viscosity, liquid, semi-liquid. Operators adjust and meter figure in the touch screen control panel, also can adjust metering of each filling head. The external surface of this machine is made of excellent stainless steel. Good appearance, applied to GMP standard.
