|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||According to product|
|Delivery Time:||2-3 weeks|
|Payment Terms:||L/C, D/P, T/T, Western Union|
|Supply Ability:||87 SETS/YEAR|
|Voltage:||220V/380V 50HZ||Mixer Type:||Homogenizer|
|Product Name:||Cosmetic Making Machine||Mixing Speed:||0-63 R/min Or Custom|
|Product Type:||Cosmetic||Automatic Grade:||Automatic|
|Advantage:||Defoaming And Longer Shelf Life||Condition:||New|
cosmetic processing equipment,
emulsion mixer machine
cosmetic cream making machine 63r Mn Vacuum Homogenizer Supplier 0.2 Um Perfume Making Equipment Sales
Shaving Face Skin Body Cosmetic Cream Making Machine with Mixer Homogenizer

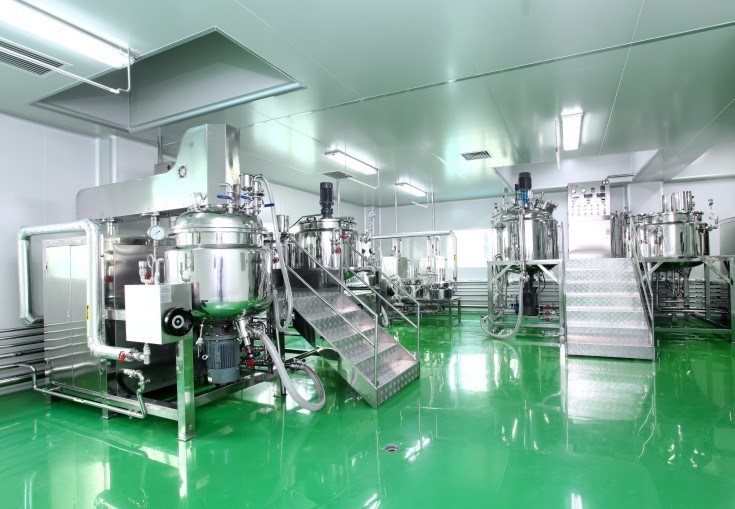

Introduction of the Vacuum Homogenizer:
The designing of Vacuum Emulsifying Mixer is based on importing advanced technology of professional cosmetic and pharmaceutical ointment producing workmanship from abroad. It is composed of emulsifying mixer, vacuum system, electric controlsystem etc. The whole-set of this equipment is composed of emulsifying mixing pot, Vacuum system, Hydraulic system, and electrical controlsystem.
Technical data of the Vacuum Homogenizer:
|Model||Mixing power||Volume||Revolution||Mixing speed||Dispersing power||Dispersing speed|
|Name||Vacuum Emulsifier Mixer|
|Make production under vacuum → De-foaming|
|Vacuum to suck raw material → Anti-bacteria|
|Lid with hydraulic lifting system→ Easy cleaning + Tilting discharge|
|1. Food: mayonnaise, tomato paste, cake gel, honey, chocolate etc.|
|2. Medical: ultrasound gel, injection, syrup, etc.|
|3. Cosmetic: cream, body lotion, shaving foam, toothpaste, etc.|
Application of the Vacuum Homogenizer:
The Vacuum Emulsifying Mixer is composed of main pot(emulsifying pot),a water phase pot and an oil phase pot, vacuum unit, up-and down system, electrical control system and the motor frame etc.
GPM planetary mixer:
GPM planetary mixer usually contains two agitators: wall scraper mixing and high speed mixing. The wall scraper mixing can be frame or anchor type with scrapers. It rotates to mix materials and to scrape materials attached on the container wall at the same time. High speed mixing ensures to mix and disperse materials quickly and efficiently. No dead corners and residuals. Easy to clean and ensure mixture efficiency.
Features of the Vacuum Homogenizer:
1. Integrate mixture, dispersion and wall scraper in one machine
2. Mechanical seal, O ring seal or trapezoid seal for option material reaction can happen under vacuum condition
3. High and low speed impellers rotate rapidly and exert strong impact force to mix materials thoroughly in a very short time. No deposit and residuals
4. Inverter control, various speed adjustment
5. Mirror polishing to ensure its smoothness
6. Suitable for liquid-liquid mixing, solid-liquid mixing, paste-paste mixing, powder-paste mixing in adhesives, lithium battery and cosmetics production. Maximum viscosity can reach 2000000cps.
Dead-end stirring with sufficient mixing area and good stirring effect.
Fast agitator: teethed type rotor and stater assembly installed on the vessel. Bottom or on the top as optional items, several interchangeable configurations ate available.
Used for material discharge and cleaning. It is more convenient and safer for the operator.
High quality SUS304 & 316 material, internal and external mirror polish of homogenized tank.
1. With jacket or coiler-pipe for heating/cooling
2. With temperature detector for control and data acquisition
3. Configured with extruder for option
4. Configured with PLC automatic control system with human-computer interface for option
5. Various agitators for option to satisfy different production requirements
Manage ltem: vacuum homogenizing emulsifiers, high shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.
