Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Qihang |
Certification: | CE |
Model Number: | ww |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | Negotiation |
Packaging Details: | According to product |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C, D/P, T/T, Western Union |
Detail Information |
|||
Voltage: | 380V 50Hz 3 Phase | Advantage: | Easy And Simple Operation |
---|---|---|---|
Feature: | High Production Efficiency | Name: | High Shear Mixer |
Automatic Type: | Automatic | Usage: | Cosmetic Industry |
High Light: | cosmetic cream mixing machine,cosmetic mixing equipment |
Product Description

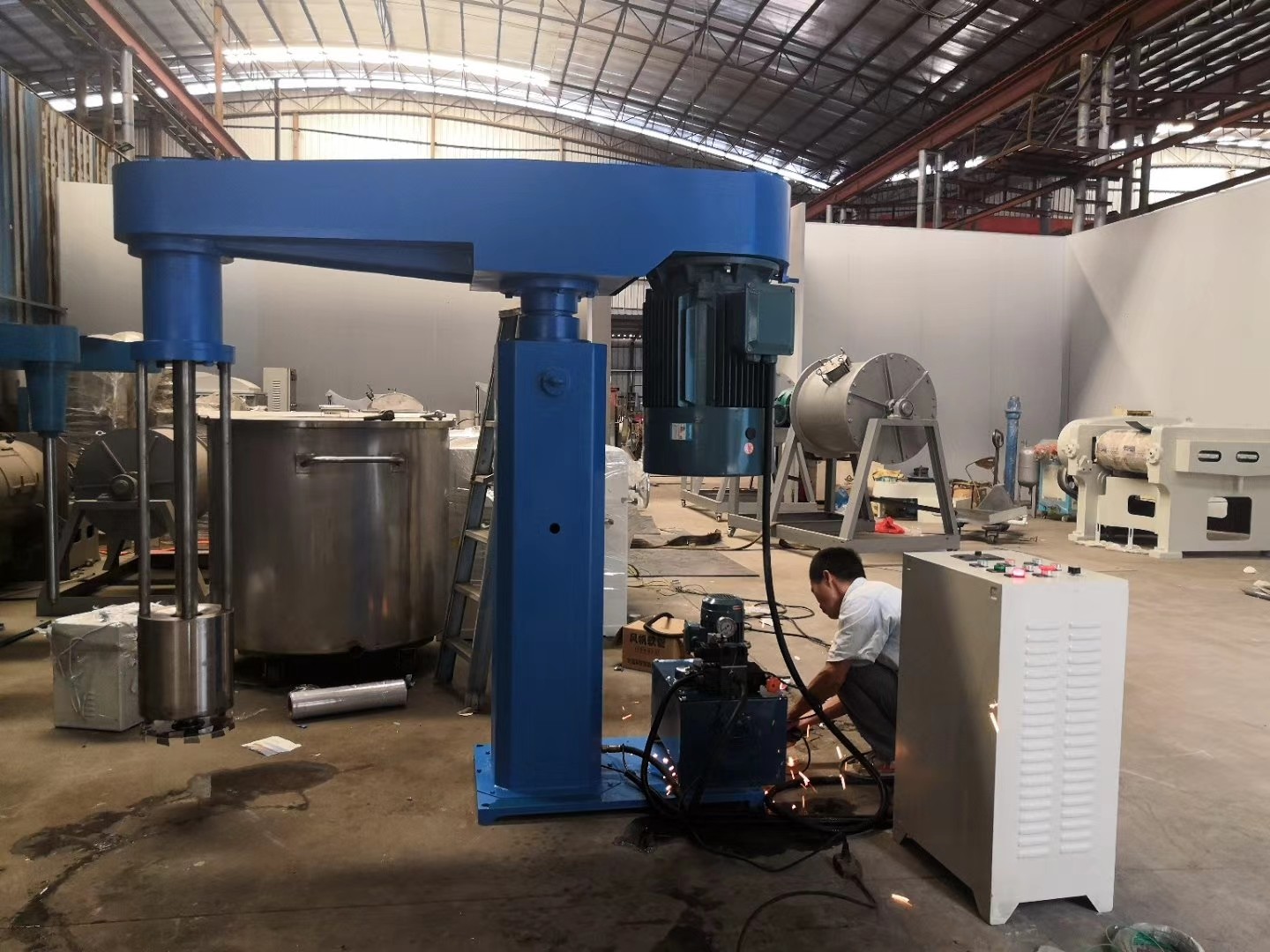

Descriptions of hydraulic mixer:
High Speed Paint dispersing and mixing machine with hydraulic
1.Characteristic :Frequency Inverter,hydraulic lifting,explosion system 2.Application Range :Two or more kinds of liquid and powder material 3.Application Field: Producing paint,ink,coating ,dyestuff ,paper making and so on 4.Hydraulic system : Control the machine lifting 5.Explosion protection system: Can be choose 6.failure rate is very low,we offer video online support,free parts support,oversea service support
Features
Type |
ww22 |
ww30 |
ww37 |
Power (kw) |
22 |
30 |
37 |
Speed (r/min) |
0~1200 |
0~1200 |
0~1200 |
Impeller dia. (mm) |
300 |
300 |
330 |
Elevating height (mm) |
1200 |
1200 |
1200 |
Container capacity (L) |
100 |
1000 |
1500 |
Features:
1. Applying inverter to adjust dispersing speed, prolong motor’s lifetime, save electricity cost
2. Hydraulic or pneumatic lifting, easy operations
3. Dispersing without dead angle as dispersing head rotates 360 degree
4. Wear-resistant and corrosion-resistant dispersing disc & shaft, which are made of high quality stainless steel
5. Can match with tank cover, in case of solvent based material splashing or volatilization during working
6. Tank can be customized for heating or cooling
7. Can customize the high speed mixer into vacuum high shear disperser
8. Installation: platform type or floor type
9. Production capacity: 1.5KW-37KW for batch dispersing capacity 30L-3000L
Application:
Paint (Floor paint, Traffic paint, Polyurethane paint, Alkyd enamel, Ready mixed paint), Vanish, Lacquer, Printing ink, Coating, Color paste, Cosmetic, Pesticide etc.
Lifting type: Mechanical lift & Hydraulic lift ( popular mode )
Mixing shaft: single shaft & double shaft
Motor power: 0.4KW-75KW explosion proof motor.
Material: SUS304 stainless steel / SUS316L stainless steel
Frequency Inverter: achieving different rotate speed request.
Moveable mixing tank: monolayer or jacketed (used for cooling, heating or vacuum function). It can be customized accordingly.
