Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Qihang |
| Certification: | CE |
| Model Number: | TY |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | According to product |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 89SETS/YEAR |
|
Detail Information |
|||
| Key Selling Points: | High Productivity | Mixer Type: | Automatic Homogenizer |
|---|---|---|---|
| Product Type: | Cosmetic | Material: | SUS304/316 |
| Control: | Button/PLC Control | Voltage: | 220V/380V 50HZ |
| Mixing Speed: | 0-63 R/min Or Custom | Keyword: | Automatic Vacuum Emulsifying Machine |
| High Light: | cosmetic manufacturing machinery,emulsion mixer machine,Button Control Cosmetic Manufacturing Machines |
||
Product Description
Product Description

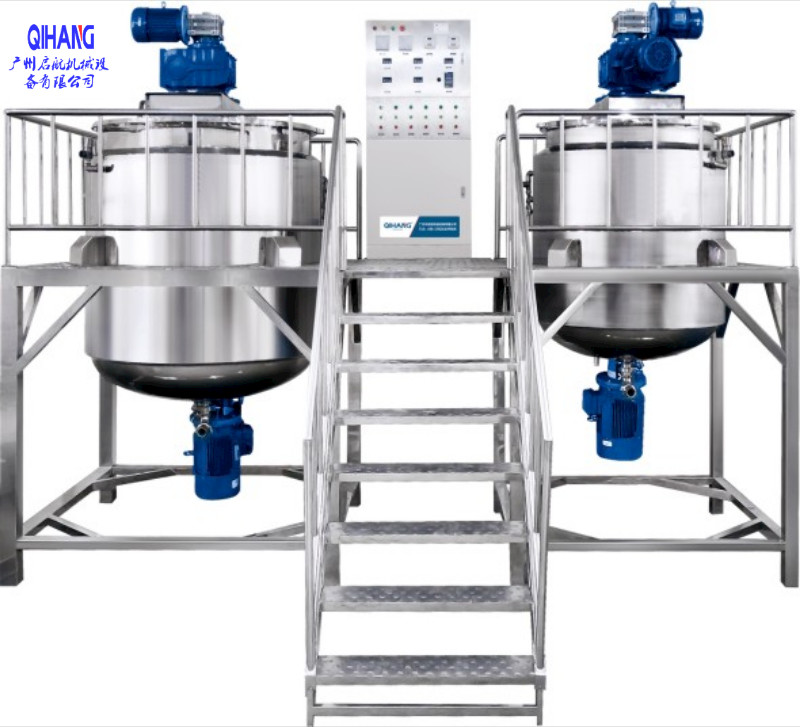

The fixed-type machine was design by QIHANG Machinery in order to suit for all kinds of cream& paste material with high viscocity in industres line of cosmetic, daily-use commodity and pharmacy, medicine and food industries such as skin cream, BB cream, shampoo, ultrasound gel, wax, ointment, detergent, honey, sauce, serum and ointment etc.
The raw material (similar to same viscosity of cream and paste ) will be completely mixed with mixing system: The molecule of raw material will be high sheared and cracked by the gap beteween rotor and stator of homogenizer that will make the granual material to be tiny and exquisite material gradually . the liquidity of raw material will be increased. A effective molecule combination with this rebuilding shearing process. The smoothness of granule below 2um.
The shampoo blending boiler is an indispensable device for daily chenical industry. It is suitable for mixing and blending various materials, for example: mixing, dissolving and blending of equal mixture etc. of viscous liquids such as shampoo and bath lotion. It is an ideal device for daily chemical industry.
Application
(1) Daily chemical and cosmetics industry:
Baby cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream, face cleanser, moisture cream, detergent, shampoo etc
(2)Pharmacy industry:
Ointment, syrup etc
(3)Food industry:
Sauce, cheese, oral syrup, nutrient solution, infant food, chocolate, saccharine etc
(4)Chemical industry:
Latex, saponification, paint, resin, adhesives, lubricating agent etc
Features
1.The self-suction type AES dissolver can shorten dissolving time, so as to save energy consumption and shorten production period.
2.Material can be heating or cooled according to technolgical requirements. The heating methods such as steam or electric heating can be selected according to customer requirements.
3.Various forms of blending vanes are suitable for production of different types of production of products.
4.Made of imported SUS304 or SUS316L stainless steel.The tank body and pipe are subjected to mirror polishing.
5.Bottom installation type dispersing head and SPX Pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
|
Description
|
Parameter
|
|
Power supply
|
AC 380V /3phase (standard), can be customized
|
|
Mixing pot structure |
3 layers stainless steel Inner layer: SUS316L, 5mm
Middle layer: SUS304, 4mm
Outer layer: SUS304, 3mm
|
|
Heating method
|
Electric heating or steam heating
|
|
Lifting type
|
hydraulic lifting
|
|
Mixing type
|
Double direction mixing and bottom high shear homogneizer mixer
|
|
Mixing speed
|
Frame mixer: 0-63rpm Central mixer: 0-63rpm
Homogneizer mixer: 0-2880rpm
|
|
Motor
|
Siemens, ABB is optional
|
|
Frequency converter
|
Delta, Mitsubishi is optional
|
|
Discharge
|
Bottom discharge outlet or hand wheel discharge
|
FAQ
Q1:Are you manufacturer? Can we visit your factory?
Answer: Yes, we are a manufacture, and we have an international trading center in Shanghai. And of course welcome to our factory.
Q2: How about your prices?
Answer: Our prices are competitive in our field and also negotiable according to your order quantity.
Q3: How's your products?
Answer: Parts of named-brand, best metals of machine boy are used to assure you of the best quality.
Q4: What's your advantage?
Answer: Compared with our competitors, we can offer you one-step service.The whole production line including machines, raw material, even toothpaste, cosmetic formulas for free are available.
