China Cosmetic Making Machine manufacturer

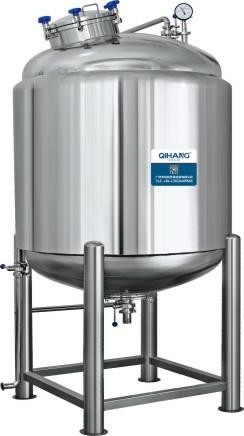

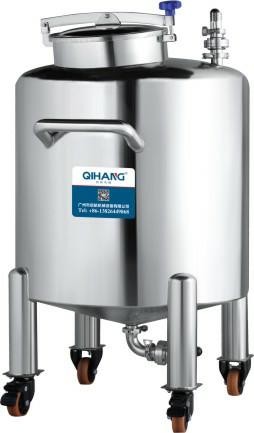

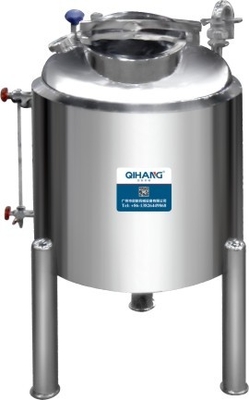

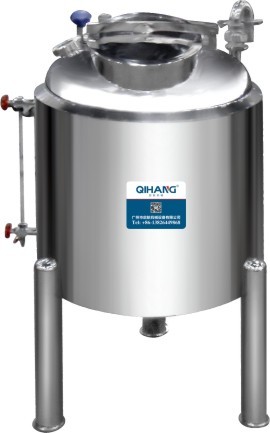

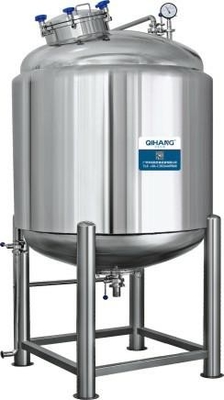

Stainless Steel 304 Chemical Storage Equipment Blending Reacting Boiler

Product Details:
Place of Origin: China
Brand Name: Qihang
Certification: CE
Model Number: WE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 52SETS/YEAR

Detail Information

Keyword: Stainless Steel Stirring Reactor Other Name: Blending Reacting Boiler
Usage: Preparation Of Liquid Detergents Feature: High Performance
Functions: Integrating Blending Model: QHM
High Light:

Stainless Steel 304 Chemical Storage Equipment

,

Integrating Blending Chemical Storage Equipment

Product Description



QIHANG Factory Price Stainless Steel 304 Storage Tank Chemical Storage Equipment



Product Description


 This type of liquid-washing stirring pot product is suitable for the cosmetic industry, and is mainly used for vacuum homogeneous stirring.



Main  Parameter of the Storage Tank


Item Model Capacity Mixer power Mixer speed Homogenizer power Homogenizer speed The method of the heat
L kw rpm kw rpm Steam or the electric
1 100 100 1.1 0~65 1.5 3000
2 200 200 1.5 0~65 3 3000
3 500 500 2.2 0~65 4 3000
4



1000

1000 2.2-4 0~65 7.5 3000
5 1500 1500 4-5.5 0~65 11 3000
6 2000 2000 5.5 0~65 11 3000
7 3000 3000 7.5 0~65 15 3000
8 5000 5000 11 0~65 22 3000



Application of the Storage Tank


Stainless steel storage tanks are mostly used to store and transport food and medicine, and are widely used in the wine and dairy industries. The inner surface of the container is mirror polished, and the outer surface can be mirror polished, sanded or sandblasted according to customer requirements. Compared with other water tanks, stainless steel water tanks have the advantages of light weight, high strength, corrosion resistance, high temperature resistance, clear water, anti-seepage, shock resistance, no moss and algae, easy installation, no maintenance, and easy cleaning.

Stainless Steel 304 Chemical Storage Equipment Blending Reacting Boiler 0



Feature of the Storage Tank


1: Blending system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement.

2: Frequency conversion speed adjustment.

3: Material can be heated or cooled according to technological requirements

4: Electric heating or steam heating.

5: Various forms of blending vanes are suitable for production of different types of products.

6: Made of imported SUS304 OR SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing.

7: Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.

8: The stainless steel electric control cabinet can completely supervise the operation of equipment, and disply such data as temperature and blending rotation speed, etc.

9: High -speed disperse(homogenizer) strongly mixed decentralized thick, solid, liquid.





Stainless Steel 304 Chemical Storage Equipment Blending Reacting Boiler 1


Type stirring blade were left to right:

single way mixing internal & external circulation, double way mixing internal & external circulation, single way mixing & internal circulation, double way mixing & internal circulation, single way mixing & external homogenizer, double way mixing & external homogenizer



Body Material


Inner wall: stainless steel 316

Jacket and outer layer: stainless steel 304

Both inner and outer are polished and handled by special light treatment.
