China Cosmetic Making Machine manufacturer

50L-10000L Cosmetic Chemical Storage Tank Stainless Steel 304 Two Layers

Product Details:
Place of Origin: China
Brand Name: Qihang
Certification: CE
Model Number: WE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 52SETS/YEAR

Detail Information

Keyword: Stainless Steel Stirring Reactor Other Name: Blending Reacting Boiler
Usage: Preparation Of Liquid Detergents Feature: High Performance
Functions: Integrating Blending Model: QHM
High Light:

10000L Chemical Storage Tank


Stainless Steel 304 Chemical Storage Tank


Two Layers Cream Storage Tank

Product Description

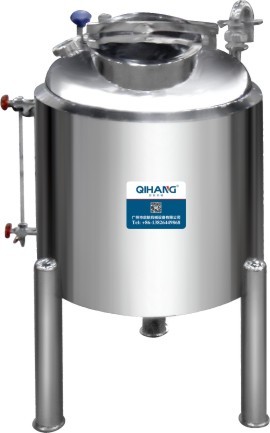

Factory Price 50L-10000L QH stainless steel 304 cosmetic chemical storage tank


Product Description

 This type of liquid-washing stirring pot product is suitable for the cosmetic industry, and is mainly used for vacuum homogeneous stirring.


Main  Parameter of the Storage Tank

Item Model Capacity Mixer power Mixer speed Homogenizer power Homogenizer speed The method of the heat
L kw rpm kw rpm Steam or the electric
1 100 100 1.1 0~65 1.5 3000
2 200 200 1.5 0~65 3 3000
3 500 500 2.2 0~65 4 3000



1000 2.2-4 0~65 7.5 3000
5 1500 1500 4-5.5 0~65 11 3000
6 2000 2000 5.5 0~65 11 3000
7 3000 3000 7.5 0~65 15 3000
8 5000 5000 11 0~65 22 3000


Application of the Mixing Tank

The liquid mixing and blending tank is applied to reaction agitating of liquid scrubbing, textile assistant, medicine chemistry, food, beverage, perfume, perfumery compound,etc.

Also applied to the products of homogenization,emulsifying,particle dispersion,etc.

50L-10000L Cosmetic Chemical Storage Tank Stainless Steel 304 Two Layers 0


Feature of the Mixing Tank

1: Blending system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement.

2: Frequency conversion speed adjustment.

3: Material can be heated or cooled according to technological requirements

4: Electric heating or steam heating.

5: Various forms of blending vanes are suitable for production of different types of products.

6: Made of imported SUS304 OR SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing.

7: Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.

8: The stainless steel electric control cabinet can completely supervise the operation of equipment, and disply such data as temperature and blending rotation speed, etc.

9: High -speed disperse(homogenizer) strongly mixed decentralized thick, solid, liquid.



50L-10000L Cosmetic Chemical Storage Tank Stainless Steel 304 Two Layers 1

Type stirring blade were left to right:

single way mixing internal & external circulation, double way mixing internal & external circulation, single way mixing & internal circulation, double way mixing & internal circulation, single way mixing & external homogenizer, double way mixing & external homogenizer


Body Material

Inner wall: stainless steel 316

Jacket and outer layer: stainless steel 304

Both inner and outer are polished and handled by special light treatment.
