Servo Drive PLC 10.5KW Three Ply Maker Six Shafts Transmission

Product Details:
Place of Origin: CHINA
Brand Name: QIHANG
Certification: CE,ISO,GMP
Model Number: QE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 5649$-16124$
Packaging Details: WOODEN CASE
Delivery Time: 3-4 WEEKS
Payment Terms: L/C, D/A, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Control Method:: PLC Operation Interface:: Touch Screen
Transmission Mode:: Servo Drive Transmission Mechanism:: Six Shafts, Double-sided Gears
Fine Adjustment Function:: Support Fine Adjustment Ear Band Mechanism:: Pull Type
Pacing Size:: 1230*480*1010mm,45kg Speed:: ABOUT 80 Pieces /min
Power:: 220V;50/60HZ, 10.5KW Language:: Chinese And English;Turkish
Customize Parts:: Customize Tooth Mold With LOGO Cylinder:: AirTac Or Emerson
High Light:

10.5KW Three Ply Mask Maker

,

PLC Three Ply Mask Maker

Product Description

High Speed Automatic Machine Line/Famous Brand PLC/Long service life



Function introduction



1+1 high speed mask production line is composed of one body machine and one ear loop welding machine. The body machine is responsible for the production of the mask body, and the ear loop welding machine is responsible for the welding of the earloop.

After the body machine makes the mask body, it is output through a small belt and then automatically sent to the earloop welding machine. The earloop welding machine automatically cuts the earloop and welds it to the mask body through the principle of ultrasonic waves, and manufactures the finished outlet mask, which is collected by the receiving conveyor belt.



Introduction of main body machine



The body machine is the main part of the mask machine. It is responsible for producing the main part of the mask, welding the three layers of raw materials together, and implanting the bridge of the nose.

The body machine can be matched with ear loop welding machine to complete the production of flat masks.

We have an adult mask body machine, the mask body size is 175*95mm;

We also have children's mask body machine, the size of the mask body is 145*95mm;

You can also customize the baby mask body machine, the mask body size is: 125*80mm;

Servo Drive PLC 10.5KW Three Ply  Maker Six Shafts Transmission 0Servo Drive PLC 10.5KW Three Ply  Maker Six Shafts Transmission 1



Small conveyor

After the mask body is delivered from the body machine, it will pass a small belt to send the mask piece to the ear belt machine.



High speed earloop welding machine



High-speed ear loop welding machine, automatically cut and weld the earloop to the mask body, using 8 high-speed servo motors, speeds up to 80-90 pieces/min, using square spot welding head, spot welding position is accurate and firm, simple structure, performance stable.

And the use of super large exhaust fan, rapid heat dissipation, to ensure the stability of ultrasonic welding.It is commonly used in supporting body machines to form a 1+1high-speed mask production line.Can also be used stand-alone.

Servo Drive PLC 10.5KW Three Ply  Maker Six Shafts Transmission 2



Production Process

Put three layers of raw materials, put nose bridge, automatic feeding, folding, nose line cutting/feeding, hemming, forming welding, automatic slicing, automatic sending to Earloop welding machine, automatic conveying mask piece, automatic cutting ear strap, automatic welding, automatic output of finished mask, automatic collection.



Technical parameter



Machine size 5132mm×1938mm×1472mm
mian body machine 1 set

Control method: PLC

Operation interface:touch screen

Transmission mode: servo drive

Transmission mechanism: six shafts, double-sided gears

Fine adjustment function: support fine adjustment

earloop welding machine 1 set



Control method: PLC

Operation interface:touch screen

Transmission mode: servo drive

Ear band mechanism: Pull type

Pacing size (normal size by sea )

4 packages

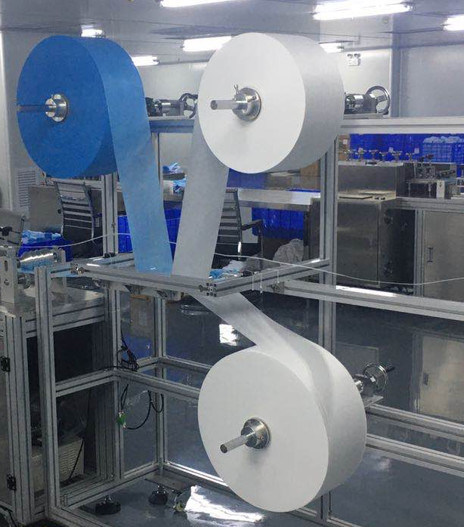

Raw material rack

主体main body

earloop welding machine

 1 receiving conveyor



2330*780*1780,180kg

1780*980*1420mm,335kg

1780*1080*1870mm,450kg

1230*480*1010mm,45kg



Speed ABOUT 80 pieces /min
Power

220V, 50/60HZ, 10.5KW





Main configuration and brand

PLC: INOVANCE

Touch screen:INOVANCE

Eye sensor :Omron or Panasonic

Motor:INOVANCE

Ultrasound:ULTRASONICS

Switching power supply:MW)

Switch:CHNT

cylinder:AirTac or Emerson

Language

Chinese and English,Turkish,Korean



Customize parts

Customize tooth mold with LOGO



Customizable mask body machine for children

145*95mm





After-sales service

WeChat group/whatsapp group will be established, and remote video guidance will be conducted online. There are our engineers, after-sales managers and sales staff. As long as you send questions to the group, we will communicate in time and guide the use of equipment.
