Screen Printing SUS304 7 Bar Cosmetic Packaging Machine

Product Details:
Place of Origin: CHINA
Brand Name: QIHANG
Certification: CE,ISO,GMP
Model Number: VV-ATQ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: FOB 19992-28249$
Packaging Details: WOODEN CASE
Delivery Time: 3-4 WEEKS
Payment Terms: L/C, D/A, T/T
Supply Ability: 67 SETS/YEAR

Detail Information

Printing Size: (25-90)*(60-260)mm Weight: 4800KG
Output: 75(pcs/min) Dimension: 3880L*l400Wx*600H(mm)
Air Pressure: 5-7(bar) Current/Voltage: 380V 50/60HZ 28Kw
Material: 304 Color: One Color One Machine
Control System: Omron PLC & Touch Screen Product Name: Automatic UV Screen Printing Machine
Model Number: VV-ATQ Country: China
High Light:

SUS304 sroque printing machine


7 Bar automatic t shirt printer

Product Description

High Prouduct Automatic Screen Printing Machine With 3uv Dryer For Glass Bottle



The accurate color to color registration of the VV-ATQ series is ensured by use of a precision mechanical cam driven indexing drive system and mechanical control of the screen printing stations.

As bottles are transported into the printing stations, they are securely lifted and held in place via a high power vacuum transport system. The bottles are then placed into precision machined fixtures (with one-way clutch) and they are direct driven and precisely rotated during printing.

There is also a "no-part no-print" sensor which prevents the squeegee from operating if no bottle is present in the printing station. After the bottles leave the printing station, they are handed-off to the UV drying station where they are rotated under the UV lamps.




The Omron or Allen-Bradley (optional) PLC and touch screen controller gives the operator complete control over all necessary machine functions and the jobs parameters can be easily adjusted.

All mechanical adjustments are easily accessible for the set-up technician and when bottle sizes change you only need to:

1) Change out the print gear in each print station;

2) Adjust the walking beam length and bowl feeder width;

3) Change the vacuum transport & chucks in each station (when necessary);

4) Change or adjust the vacuum pick and place device;

5) Adjust the flame treater height

6) Adjust the off-contact screen height.



Printing Size ((25-90)x(60-260)mm
Approximate Weight 4800(kg)
Output 75(pcs/min)
In order to maintain the long life of the machine, the general control is one second a bottle.
Dimension 3880Lxl400Wxl600H(mm)
Air pressure 5-7(bar)
Current/Voltage 380V 50/60HZ 28Kw
Price: FOB 28249$/SET





Picture details:

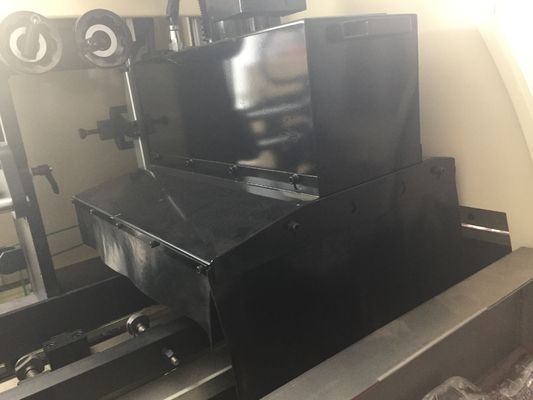

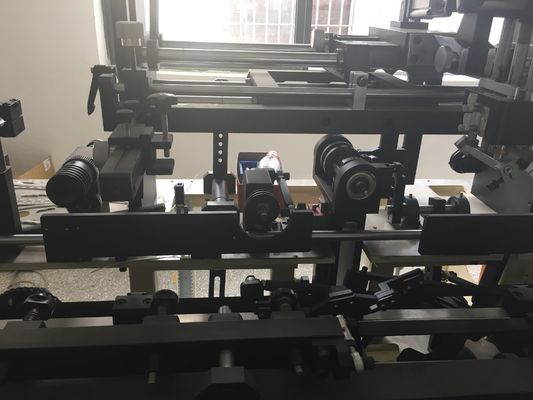

Screen Printing SUS304 7 Bar Cosmetic Packaging Machine 0Screen Printing SUS304 7 Bar Cosmetic Packaging Machine 1Screen Printing SUS304 7 Bar Cosmetic Packaging Machine 2




Automatic single color screen printing machine is designed by PLC with touch screen controlling system, it is with fast printing speed, running stable, short of tooling change over time, good precision printing registration.


Reasonable structure:

Rotary clearance movement, mechanical transmission mode, with automatic feeding and unloading system, mechanical and micro-computer controlled complete and efficient printing equipment.


Stable performance:

The machine accessories are of good quality, precise processing, low failure rate of equipment, and can be produced safely and steadily with very little equipment maintenance cost.


Easy to operate:

The machine adopts man-machine dialogue, and the fixture replacement is quick and easy.


Production management:

with no printing, output counting, safety, abnormal alarm and so on.


Optional configuration:

automatic cursor alignment device; pre-press 01 post-press.
