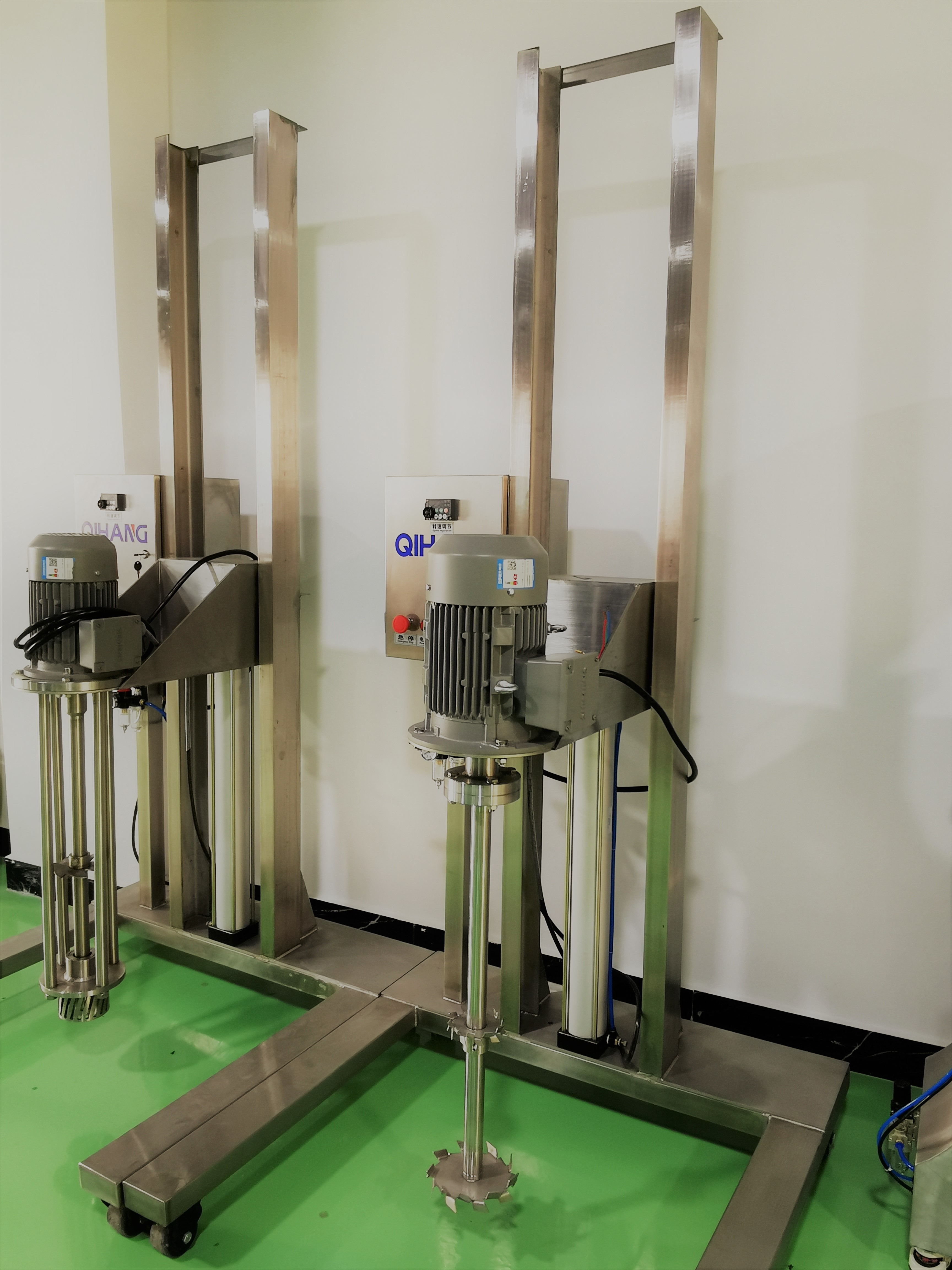

Electrical hydraulic lift homogenizer
Description:
1.hydraulic lifting or Machanical Lifting,you can choose the one you want. 2.Material:stainless steel 3.Whole cooper wire motor. 4.The speed can be customized and adjustable. 5.The voltage and plug can be changed to same as your local voltage, this is for free. Voltage:110V/60HZ 220V/60HZ 220V/50HZ 380V/50HZ Plug:EU,UK,America,Italy,Switzerland,South Africa. It’s better you can tell us your local voltage and send plug pictures. 6.If you can not decision to choose suitable model, please feel free contact Angelina. She will reference suitable model to you according to your material and capacity.
Principle:
The materials willbe processed in the narrow space between stator and rotor by high tangential speed and strong energy of motion respectively produced by fast-turning rotor and high frequency mechanical effect.By the operation of intensively shearing ,centrifugally extruding ,impacting and breaking ,liquid layer attrition and even turbulence,the materials of solid phase ,liquid phase and gas phase that cannot dissolve will be refined ,dispersed and emulsifierd .
| Model |
Power |
Elevator height |
Rotation |
Blending volume |
Fan diameter |
Weight
|
| kW |
mm |
rpm |
L |
mm |
kg |
| Q-1.5 |
1.5 |
800 |
0-3000
|
10-50 |
200 |
80 |
| Q-2.2 |
2.2 |
800 |
50-100 |
100 |
| Q-3.0 |
3.0 |
800 |
50-100 |
115 |
| Q-4.0 |
4.0 |
1000 |
100-200 |
280
|
125 |
| Q-5.5 |
5.5 |
1000 |
100-200 |
140 |
| Q-7.5 |
7.5 |
1000 |
200-500 |
350 |
155 |
| FML-Q-11 |
11 |
Customized |
200-1000 |
350 |
170 |
ADVANTAGES:
It is widely used in the stirring, dispersing and dissolving process of chemical products such as coatings, inks, pigments and adhesives. The hydraulic lifting disperser is an efficient equipment for stirring, dissolving, dispersing and homogenizing a variety of mixed liquids and solids. The main motor is a speed-regulating motor with a speed-regulating range of 80-1200 rpm. The medium speed is used for stirring and dissolving, and the high speed is used for dispersing and homogenizing. Under the action of the high-speed rotation of the blades, the material turns vigorously up and down in the container, colliding and shearing with the blades, so that the aggregate destruction can be quickly dispersed, homogeneously mixed, and dissolution is accelerated. This equipment is widely used in the production of coatings, pigments, inks, adhesives and other related chemical products.
Product Details:
1. Hydraulic power station; 2. Electric control box; 3. Energy-saving inverter; 4. Interchangeable nets / holes; 5. Double-ended mechanical seal; 6. Precision bearings x3pcs; 7. Precision pulley x2pcs; 8. High speed belt; 9. Explosion-proof control box with external digital display speed.
Product Features: Capacity - 100~20,000 litres. Workheads - Special workheads available for all models. Materials of Construction - Product contact in SS304 or 316L stainless steel. Mounting - All mixers can be supplied with fixed hydraulic stand. Sealing - Where sealing is required, lip seals and single or double mechanical shaft seals can be supplied. Speed - Speed is adjustable with frequency inverter.
