Cosmetic Making Machine Vacuum Emulsifying Machine Oil Pot lotion emulsifier

Product Details:
Place of Origin: China
Brand Name: Qihang
Certification: CE
Model Number: GH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: According to product
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/P, T/T, Western Union

Detail Information

Condition: New Key Selling Points: Automatic
Additional Capabilities: Vacuum, Homogeneous Warranty: 12 Months
Voltage: Customized To Requirements Product Type: Pharmaceuticals, Cosmetics, Food, Etc
High Light:

cosmetic processing equipment


cosmetic manufacturing machinery


CE Certificated Cosmetic Cream Making Machine

Product Description

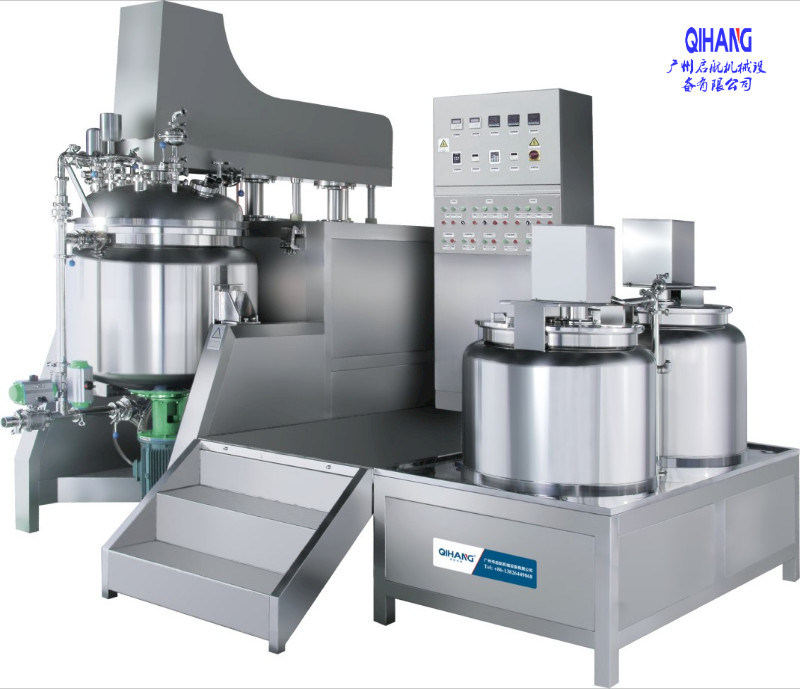

Cosmetic Cream Making Machine Vacuum Emulsifying Machine Oil Pot



Vacuum emulsifying machine, high shear homogenizer, cosmetic cream mixer means the material in a vacuum state, the use of high-shear emulsifier efficient, rapid and evenly distributed one phase or multiple phase to another phase, and each phase under normal circumstances (such as oil and water phase) are mutually exclusive.

1: cosmetics making machine

2: lotion emulsifier


Performance & Feature

The pot cover takes the form of auto-move-up-and-down. The material in water pot and oil pot is sucked into emulsifying pot in vacuum by transmission pipes. The emulsifying pot is designed to be titted over in case to dump products. The material can be heated by electrical heater with help of heat-conductive medium it can also heated bygasi. The heat temp, can be set and automatically controlled.Material cooling is available. It is easy to operate.

There is temperature- keeping sheet betweer inner and out sheath Different stirring modes can be used simultaneously or individually. All the processes of crushing, emulsifying, mixing,stirring and dispersing can be accomplished within a short time. The area touching working material is made of stainless steel(Commonly used 304, medical 316L ),With innter surface polished, the vacuum stirring equipment meets the need of hygiene and are manufactured in accordance with GMP standard. It is best for the production of ointment,cream,etc.



Technical Parameters




Homogenizer motor Stir motor Vacuum pump Heating power
kW r/min kW r/min kW Limit vacuum Electric heating Steam heating
10 10 0.55 0-3600 0.37 0-85 0.37 -0.09 6 2
20 20 0.75 0-3600 0.37 0-85 0.37 -0.09 9 3
50 50 2.2 0-3600 0.75 0-80 0.75 -0.09 12 4
100 100 4 0-3500 1.5 0-75 1.5 -0.09 24 9
150 150 4 0-3500 1.5 0-75 1.5 -0.09 24 9


Working Process

The materials are heated and mixed in water pot and oil pot to be fully reacted. Sucked into emulsifying pot by vacuum pump, the materials are stirred by both the center blade and side scraper, which works on the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, folded. Then,the materials are sent to the cut-off mixing until where they are finally crushed into small pellets of 200μm~2μm. Besides,because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from materiallotion making machine. (vacuum ointment emulsifying machine,vacuum homogenizing emulsification machine,vacuum emulsify,vacuum emulsifier,emulsifier,vacuum emulsifying mixer)


       Cosmetic Making Machine Vacuum Emulsifying Machine Oil Pot lotion emulsifier 0
