Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | qihang |
| Certification: | ce,iso |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | Negotiate |
| Packaging Details: | wooden case |
| Delivery Time: | 35 working day |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 70/month |
|
Detail Information |
|||
| Voltage: | 220V/380V | Condition: | New |
|---|---|---|---|
| Product Type: | Cosmetic,chemical,shampoo | Dimension(l*w*h): | Custom Made |
| Warranty: | 1 Year | Mixer Type: | Homogenizer,Agitator/Homogenizer/Paddle/Mixer,ointment |
| Application: | Viscous Fluid,cream,paste | Max. Loading Capacity: | Customized |
| Material: | Stainless Steel 304 / SUS316L | Name: | Vacuum Emulsifying Mixer |
| Homogenizing Speed: | 0-3000r/min | ||
| Highlight: | 500L Cosmetics Production Equipment,3000r/min Cosmetics Production Equipment,shampoo Vacuum Emulsifying Mixer |
||
Product Description
Products Description
1. The blending tank equipment adopts single-direction or double-direction wall scraping blending and frequency conversion speed adjustment to satisfy different technological requirements.
2. Materials can be heated or cooled according to technological requirements. The heating methods such as steam or electric heating can be selected according to customer requirements.
3. Various forms of blending vanes are suitable for production of different types of products.
Main composition

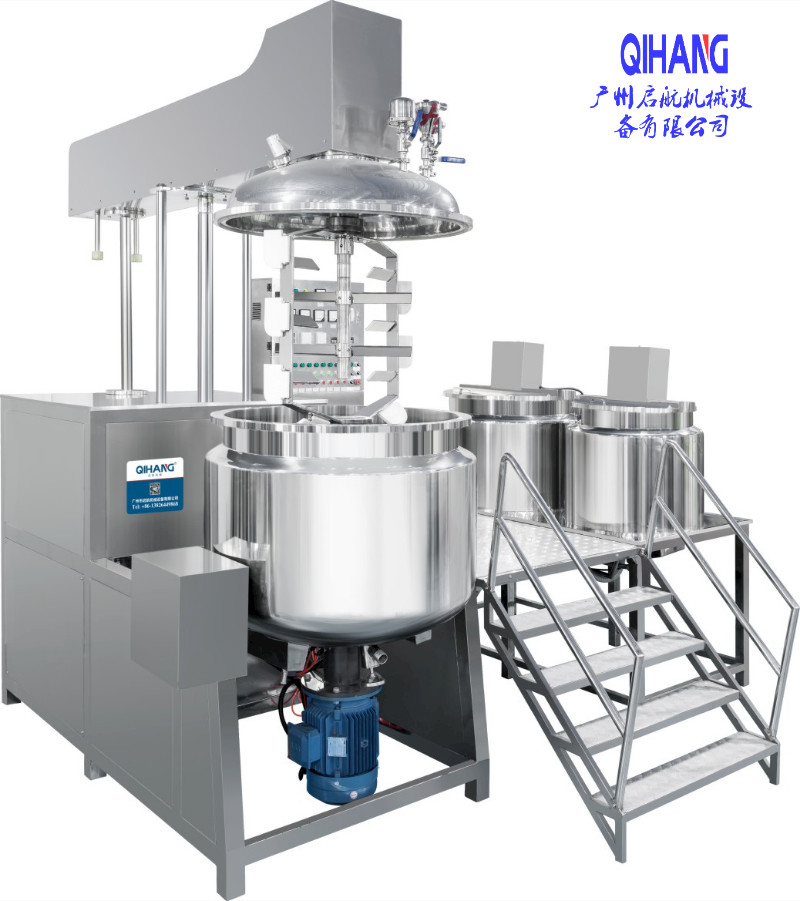

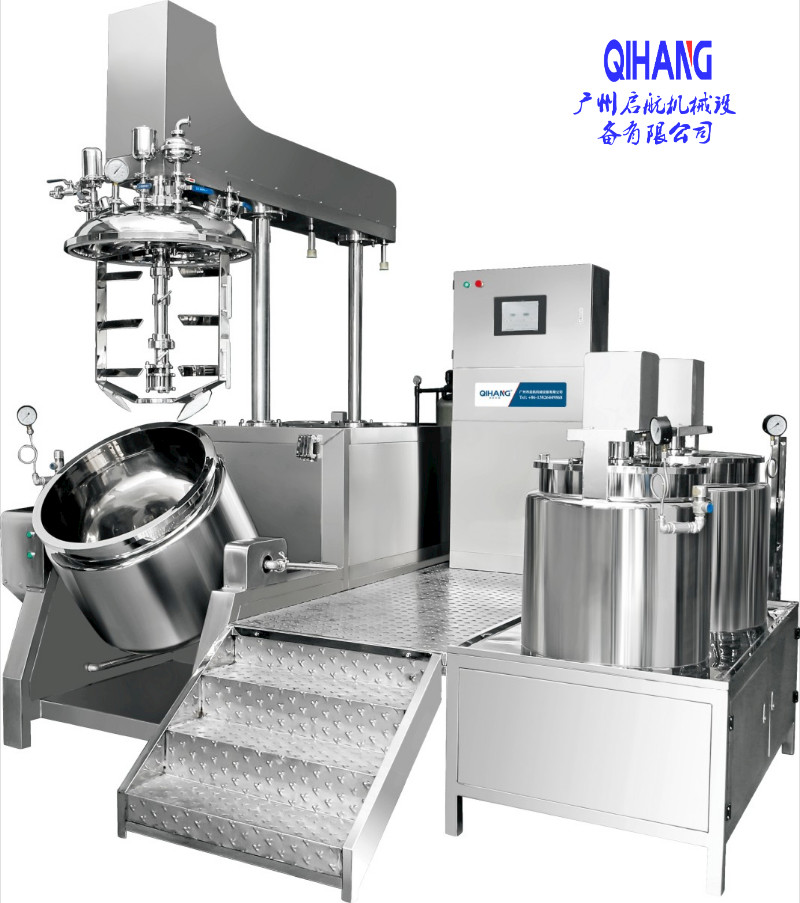

The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot,vacuum system, lifting system(optional), electric control system(PLC is optional), operation platform, etc.
Specification
| Vacuum homogenizing emulsifying machine | ||||
| Capacity | 10-5000L | |||
| Uasage |
Cosmetic cream,paste,ointment, lotion,gel,conditioner,milk,sauce |
|||
| High shear rate | less than 2um | |||
| Contact part |
SS316L(three jackets.contact material parts adoptSS316L,the other two layers adopt SS304) |
|||
| Homogenizer speed | 0-3000rpm | |||
| Scraper speed | 0-63rpm | |||
| Lifting | Hydraulic lifting system | |||
| Heating | steam/electric | |||
| Operating | PLC/button | |||
| Type | Lift type (Hydraulic lifting system) | |||
| Fixed type(the cover can't lift) | ||||
Definition of vacuum emulsifier
It means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several phases to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rator by strong energy of motion produced by the mechanical effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
Usage and application field
The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food inducts, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilizer, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
