Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Qihang |
Certification: | CE |
Model Number: | QHE |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | 10976$-23512$ |
Packaging Details: | According to product |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C, D/P, T/T, Western Union |
Supply Ability: | 43/month |
Detail Information |
|||
Product Name: | Vacuum Homogenizing Emulsifiers | Usage: | Cosmetic And Pharmaceutical Plants |
---|---|---|---|
Maximum Emulsifying Rotation Speed: | 3.500rpm | Highest Shearing Fineness: | 0.2-5um |
Feature: | Dust Proof | Boiler Body Material: | Imported SS Plate |
Keyword: | High Shear Emulsifier | Model: | QHE |
High Light: | 50L ointment making machine,Polyurethane ointment manufacturing machine,SUS316L ointment making machine |
Product Description
Definition Of Vacuum Homogenizing Emulsifiers :
It means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several phases to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect. By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
Emulsifying Equipment Specification:
Emulsifying Equipment Main Composition:

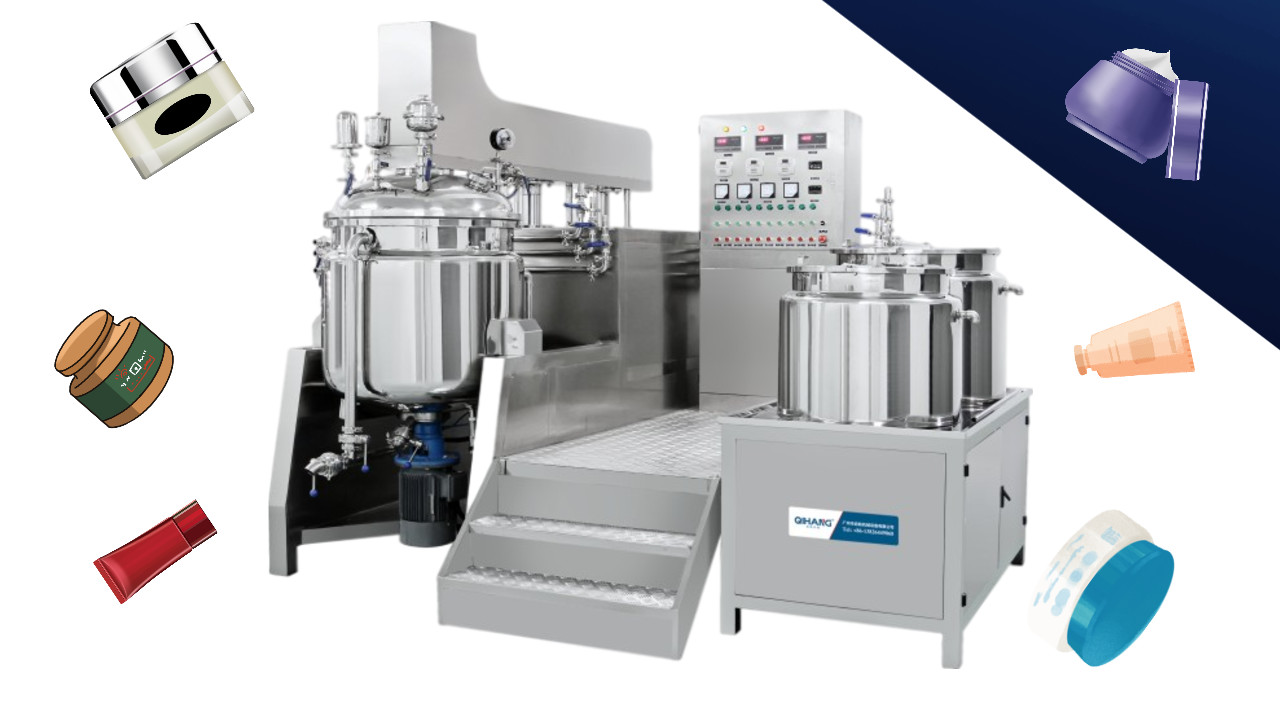

The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.
Vacuum Homogenizing Emulsifiers Usage And Application Field:
It is suitable for production of ointment and cream products in cosmetic and pharmaceutical plants. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
The product is mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilizer, plastic & rubber, electrics and electronics, fine chemical industry, etc. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Performance and Features:
• The vacuum emulsifiefs produced by our company include many varieties. The homogenizing systems inclucte upper homogenizer, bottom homogonizer, internal homogenizer and external circulating homogemzer. The mixing systems include single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single-cylinder lifting and double-cylinder lifting. Various high quality products can be customized according to customers' requirements.
• The triple mixing adopts the imported frequency inverter for speed adjustment, which can meet different technological demands.
• The homogenizing structure is made through German technology The machine adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 3.500rpm and the highest shearing fineness can reach 0.2-5um.
The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted, especially for the powder materials, vacuum sucking can avoid dust.
• The main boiler lid can adopt lifting system, it is easy to clean and the cleaning effect is more obvious, the main boiler can adopt tilting ischarge.
• The boiler body is welded with 3 layer imported SS plate, tank body and pipes adopts mirror polish which meet the GMP standard.
• According to process requirements, the tank body can heat and cool the materials. The heating method including stream heating and electric heating.
• To ensure the stability of the machine, the machine adopt the imported electric appliances which can meet the intdfnatiooal standards.
PROJECT CASES:
Manage ltem: vacuum homogenizing emulsifiers, high shear liquid detergent mixers, reverse osmosis ion water devices, various water injection, liquid and ointment semi-automatic and automatic filling production lines, round and flat bottles automatic and semi-automatic labeling machines, perfume whole-set production lines, laboratory equipment, flow lines, etc.
