Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Qihang |
Certification: | CE |
Model Number: | CF |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | Negotiation |
Packaging Details: | According to product |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C, D/P, T/T, Western Union |
Detail Information |
|||
Other Nama: | Automatic Cream & Paste Filling Machine | Apply Industry: | Cosmetic Filling |
---|---|---|---|
Usage: | Liquid Paste Cream Filling | Automatic Grade: | Automatic |
Condition: | New | Voltage: | 220V/50HZ |
Packaging Type: | Bottles / Jar | Application: | Beverage, Chemical, Commodity, Food, Machinery,hardware,medical |
Driven Type: | Electric | Key Selling Points: | Easy To Operate |
High Light: | cosmetic filling equipment,automatic tube filling machine |
Product Description

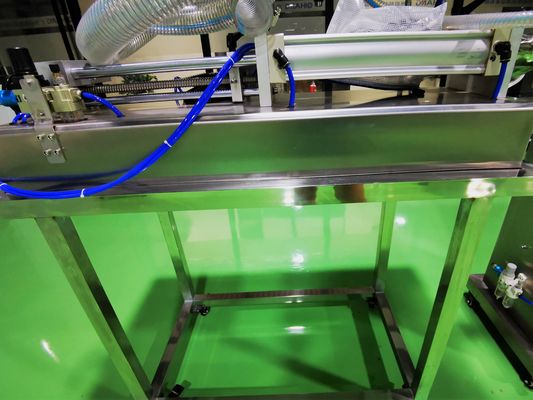

FILLING MACHINE FOR LIQUID CREAM EQUIPMENT FOR MAKING COSMETICS
Filling principle
The machine is a semi-automatic piston filling machine, which is driven by a cylinder to extract and eject material. The material flow is controlled by a three-way rotary valve. The stroke of the cylinder can be controlled by the reed switch. The filling volume can be adjusted, You can adjust the intake air cylinder to achieve rapid or slow filling.
Advantage
1.Stainless steel nozzle
The machine is made of stainless steel and made of fine steel.steel filling nozzle Easy to remove, stainless steel,non-clogging,easy to clean.Filling mouth anti-drawing, anti-drip design.
2.Cylinder for ball valve
Cylinder for ball independent and precise valve .Beautiful shape. Easy to disassemble. Easy to clean. Ensure the filling products unimpeded transportation.
3.Customizable
Different size of nozzles including 4mm, 6mm, 8mm, 10mm, 12mm etc. Also accept special customized size of nozzles.
Various Samples
Main Performance Features
★ Series products of semi-automatic filling machine can fill quantificationally whether sticky or inviscid, corrosive or non-corrosive, frothy or non-foaming liquid produced in food concentrated solution, flavours and fragrances, medicine, farm chemical, chemical liquid, daily use chemical and other industries. It aims to fill washing liquor, care solution, oral liquid, hair care liquid, liquid soap, skin moisturizer, liquid foundation, liquid shampoo, eye lotion, nutrient solution, injection, disinfectant, farm chemical, medicine, cleanser essence, shower gel, concentrated solution, syrup, honey, fruit juice, drink, soy, vinegar, fruit wine, white spirits, paint and coating, chemical liquid, edible oil, anti-freezing solution, lubricating oil and liquids produced in special industries.
Model |
Filling Range |
Filling ]Accuracy |
Production Capacity |
Power Supply |
Air Source |
Output Power |
Net Weight |
2/100 |
5-100 |
≤±0.5 |
0-60 |
220V 50HZ |
0.3-0.5MPA |
≤10W |
48KG |
2/250 |
20-250 |
≤±0.5 |
0-60 |
220V 50HZ |
0.3-0.5MPA |
≤10W |
58KG |
2/500 |
50-500 |
≤±0.5 |
0-60 |
220V 50HZ |
0.4-0.6MPA |
≤10W |
65KG |
1000 |
100-1000 |
≤±0.5 |
0-60 |
220V 50HZ |
0.4-0.6MPA |
≤10W |
76KG |
